| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OMATEI |
| Model Number: | HB4 Series |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | NTH STEEL POWERFUL BORING MILLING JAW HIGH PRECISION | Material: | 45# Steel |
|---|---|---|---|
| Function: | Clamping | Feature: | High Quality / High Precision |
| Usage: | Refer To The Specification | Service: | ODM/OEM Is Available |
| Highlight: | HIGH PRECISION BORING MILLING JAW, NTH STEEL BORING MILLING JAW, POWERFUL BORING MILLING JAW |
||

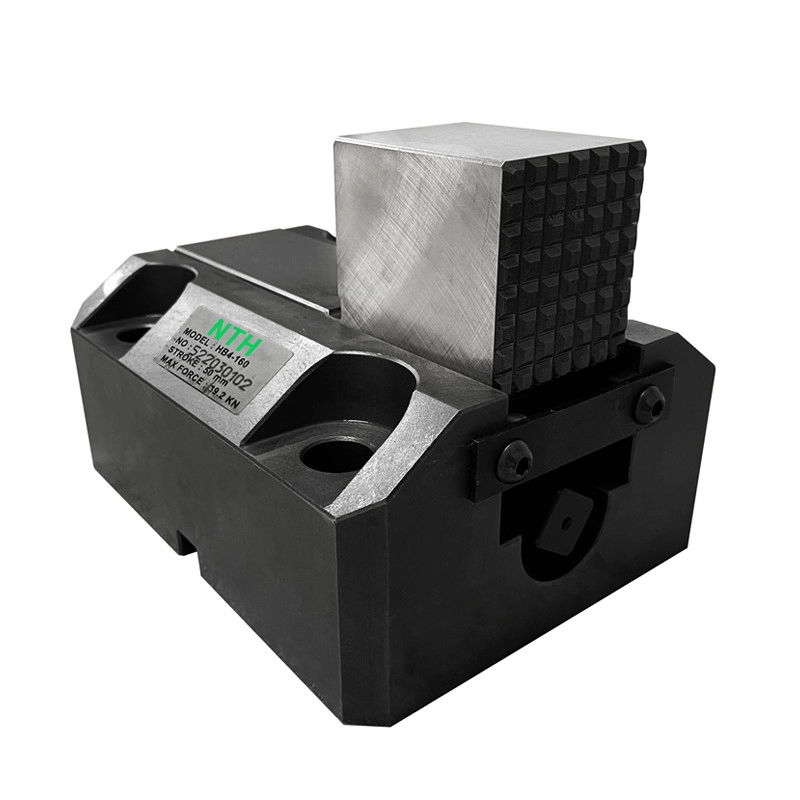

NTH STEEL POWERFUL BORING MILLING JAW HIGH PRECISION
Suitable for the huge and vertical lathe, die jig and the clamping of the workpiece
4 pieces in one set with the T-bolt.

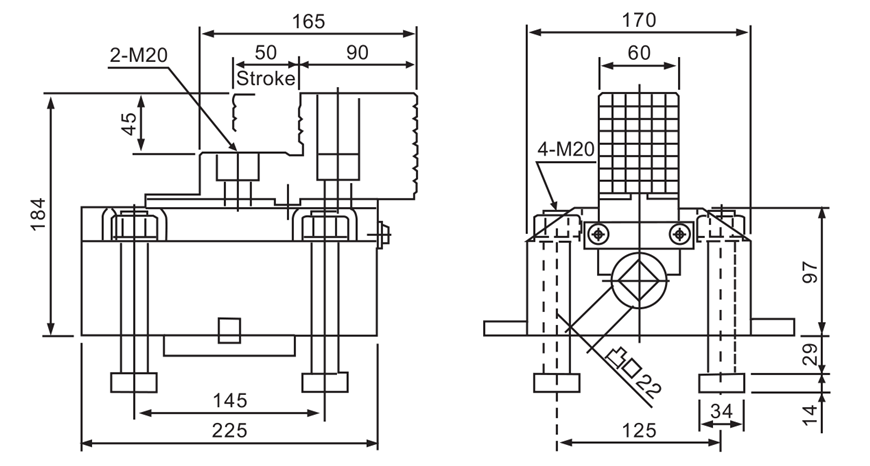

(Unit : mm)
Spec/ Model | Jaw stroke (mm) | MAX. GRIPPING FORCE (kn) | N.W. (kg) |
| HB4-160 | 20 | 39.2 | 29 |

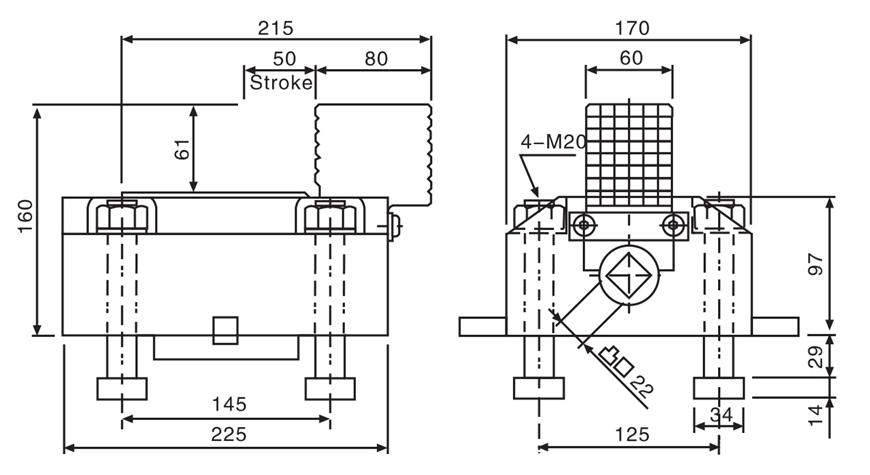

Unit : mm)
| Spec. /Model | Jaw stroke Dia. (mm) | MAX. gripping force (kn) | N.W.(kg) |
| HB4-189 | 50 | 39.2 | 31 |

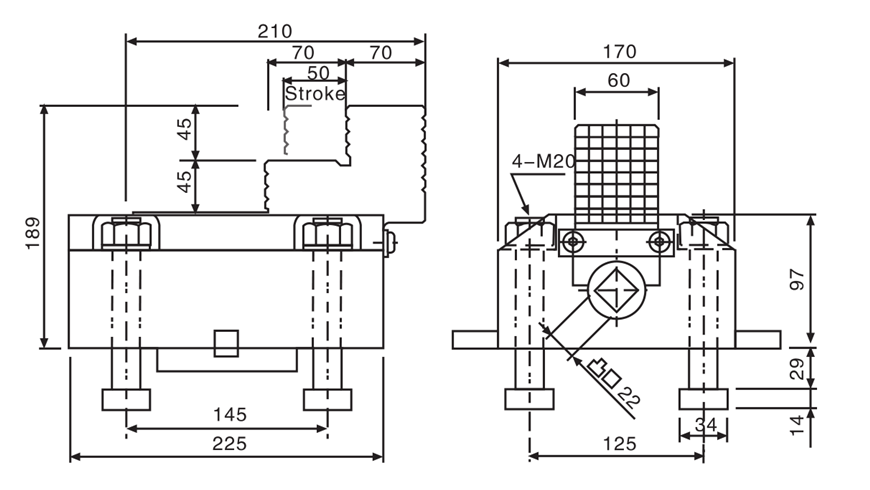

(Unit : mm)
| Spec / Model | Jaw Stroke Dia. (mm) | MAX. gripping force (kn) | N.W. (kg) | Matched Jaws |
| HB4-2P | 50 | 39.2 | 31 | HE2486 |
