| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OMATEI |
| Model Number: | 160,200,250 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | HARD JAWS 2 PIECE TYPE FOR SCROLL CHUCK FOR CHINA BRAND K11-A SERIES CHUCK | Material: | 45#Steel |
|---|---|---|---|
| Funcition: | Clamping | Feature: | High Quality /High Precision |
| Size: | Refer To The Specification | Service: | ODM/OEM Is Available |
| High Light: | kitagawa hard jaws,kitagawa chuck parts |
||

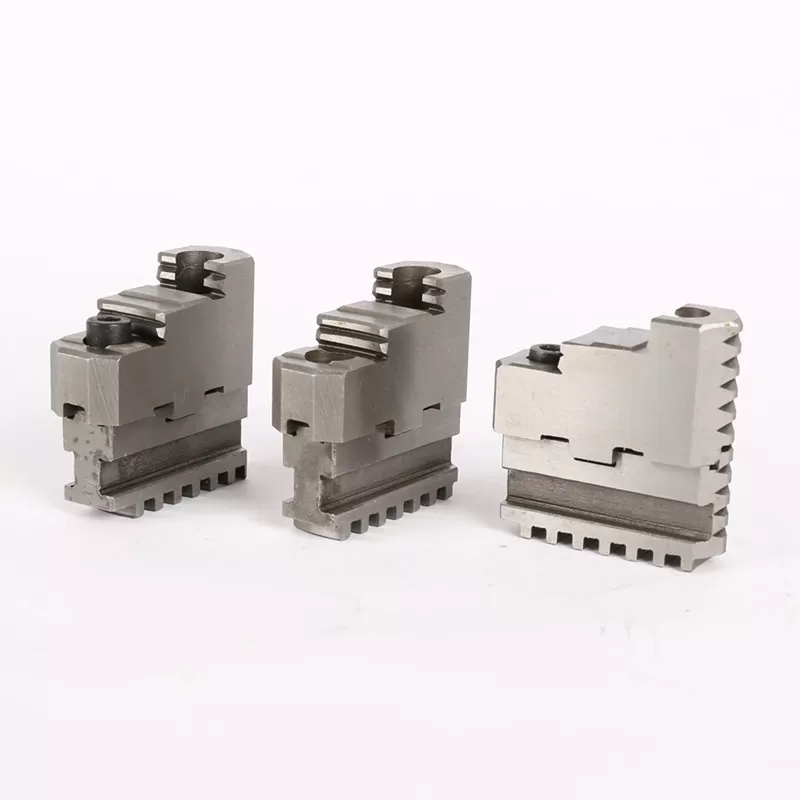

HARD JAWS 2 PIECE TYPE FOR SCROLL CHUCK FOR CHINA BRAND K11-A SERIES CHUCK
Brand:OMATEI
Selection Guidance
1, Chuck brand and model name
2, Workpiece size and the gripping height
Advantage
1, For standard soft jaws, the material is high quality 45# steel, stronger and hardenable.
2, Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
3, Applicable onto the related chuck models of SMW/Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/Autogrip/NTH and so on well-known brand.
4, Customized and non-standard jaws and be designed and OEM.
Description
Hard jaws include one-piece jaws and two-piece jaws for formA,D,C.
All kinds of hard jaws can be provided as the request of customers.

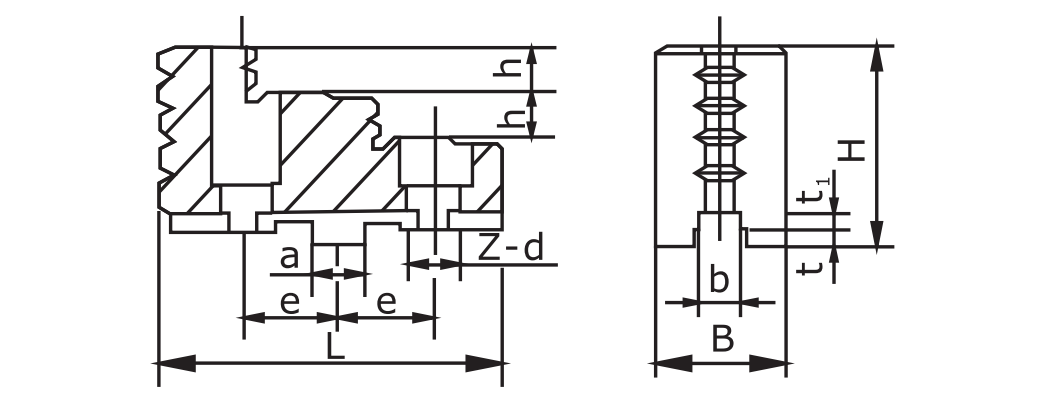

Two-Piece Jaws for FormA
| Size | 160 | 200 | 250 | 315 | 325 | 380 | 400 | 500 | 630 | |
| L | 67 | 80 | 95 | 108 | 108 | 130 | 130 | 130 | 132 | 132 |
| B | 25 | 30 | 36 | 45 | 45 | 45 | 45 | 45 | 45 | 54 |
| H | 41 | 45 | 53 | 61 | 61 | 70 | 70 | 70 | 82 | 82 |
| h | 9 | 10.5 | 13.5 | 17.5 | 17.5 | 17 | 17 | 17 | 22 | 22 |
| a | 12.675 | 12.675 | 19.025 | 19.025 | 19.025 | 19.025 | 19.025 | 19.025 | 19.025 | 19.025 |
| b | 7.94 | 7.94 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 |
| e | 19 | 22.2 | 27 | 31.75 | 31.75 | 38.1 | 38.1 | 38.1 | 38.1 | 38.1 |
| t | 3 | 3 | 3 | 3 | 3 | 6 | 6 | 6 | 6 | 6 |
| t1 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| z-d | 2-11 | 2-11 | 2-13 | 2-13 | 2-13 | 2-15 | 2-18 | 2-18 | 2-22 | 2-22 |

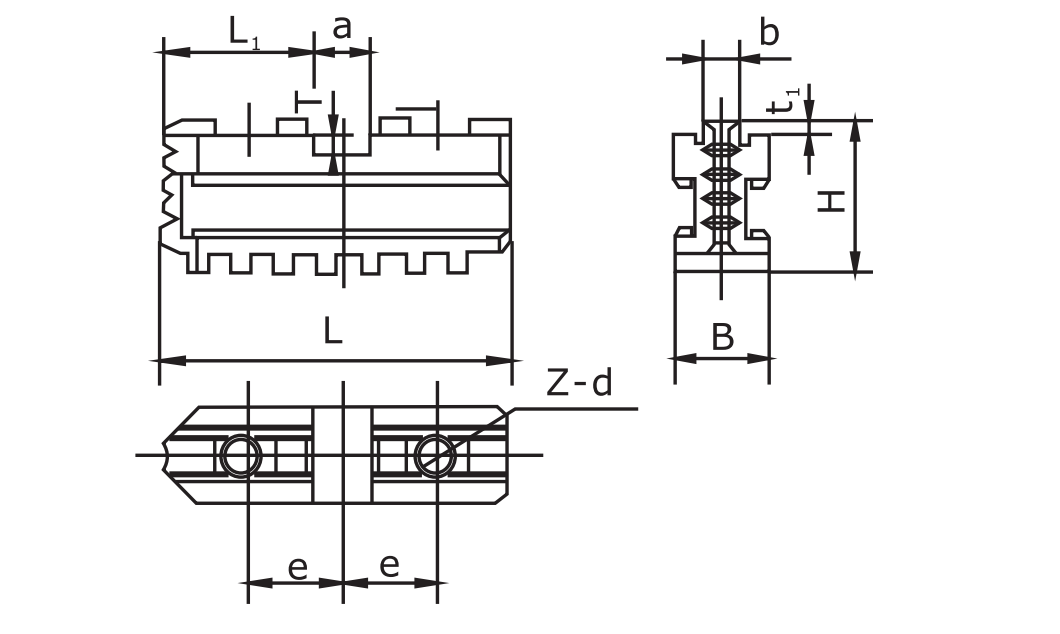

Two-Piece Jaws for FormD
|
Size
|
160 | 200 | 250 | 315 | 325 | 325 | 380 | 400 | 500 | 630 |
| L | 64 | 80 | 98 | 110 | 110 | 114 | 114 | 114 | 152 | 210 |
| L1 | 29 | 34.9 | 39.7 | 47.6 | 47.6 | 47.5 | 47.5 | 47.5 | 47.4 | 59 |
| B | 20 | 22 | 27 | 36 | 36 | 36 | 36 | 36 | 45 | 50 |
| H | 33 | 35 | 38 | 42 | 42 | 46 | 46 | 46 | 55 | 60 |
| a | 12.675 | 12.675 | 19.025 | 19.025 | 19.025 | 19.025 | 19.025 | 19.025 | 19.025 | 19.025 |
| b | 7.94 | 7.94 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 |
| e | 19 | 22.2 | 27 | 31.72 | 31.75 | 38.1 | 38.1 | 38.1 | 38.1 | 38.1 |
| t | 4 | 4.2 | 4.2 | 4.2 | 4.2 | 7 | 7 | 7 | 7 | 7 |
| t1 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| z-d | 2-M10 | 2-M10 | 2-M12 | 3-M12 | 3-M12 | 3-M16 | 3-M16 | 3-M16 | 4-M20 | 5-M20 |
Subject to technical changes
