| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OMATEI |
| Model Number: | HJ-05,HJ-06,HJ-07 etc. |
| Minimum Order Quantity: | 1set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | STANDARD HARD JAWS FOR HYDRAULIC CHUCK | Material: | 45#Steel |
|---|---|---|---|
| Function: | Clamping | Feature: | Hardness 57-63 HRC |
| Usage: | 111 | Service: | Refer To The Specification |
| Highlight: | metal lathe chuck jaws, kitagawa hard jaws |
||

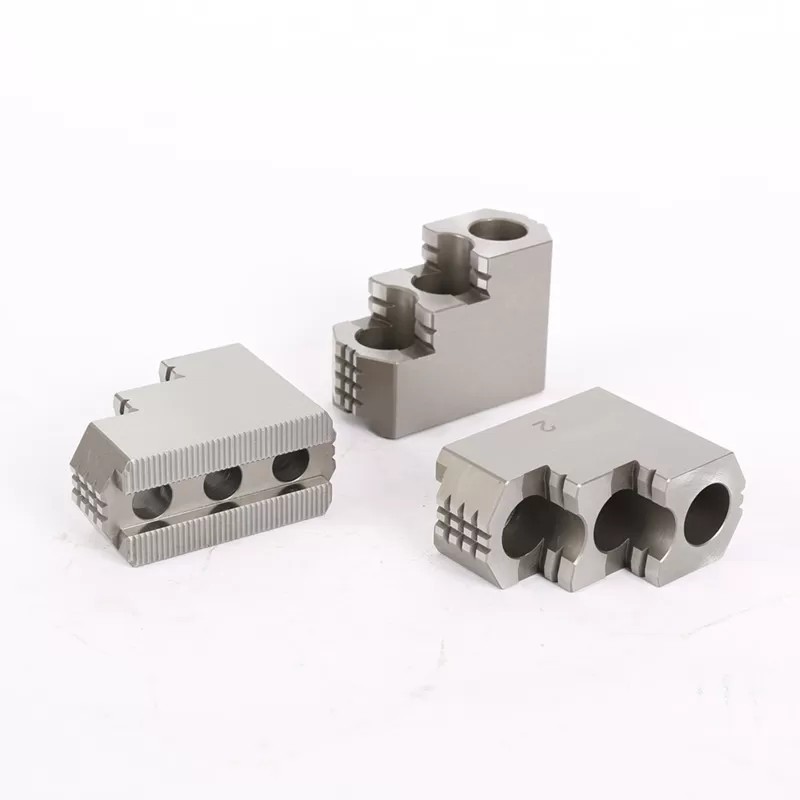

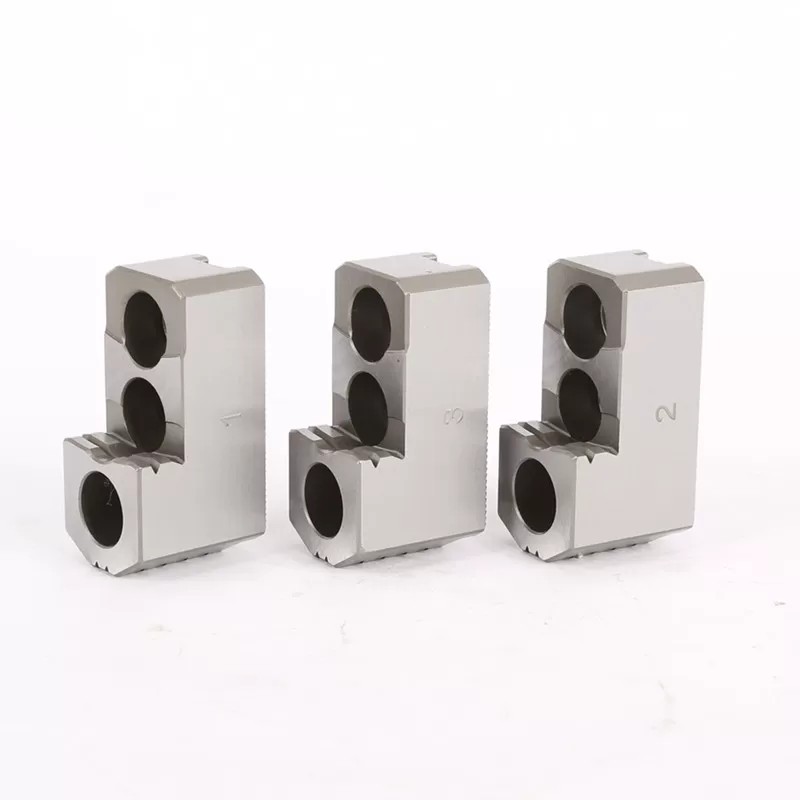

STANDARD HARD JAWS FOR HYDRAULIC CHUCK
Brand:OMATEI
Selection Guidance
1, Chuck brand and model name
2, Workpiece size and the gripping height
Advantage
1, For standard soft jaws, the material is high quality 45# steel, stronger and hardenable.
2, Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
3, Applicable onto the related chuck models of SMW/Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/Autogrip/NTH and so on well-known brand.
4, Customized and non-standard jaws and be designed and OEM.

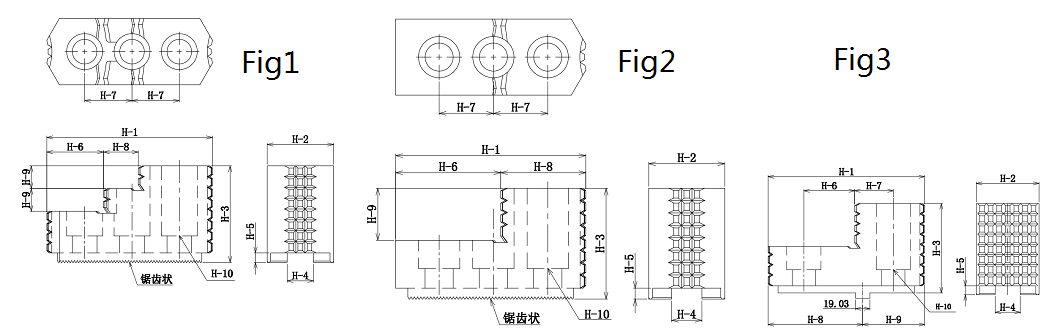

SPEC MODEL | H-1 | H-2 | H-3 | H-4 | H-5 | H-6 | H-7 | H-8 | H-9 | H-10 | Serration Pitch | Gross Weight(kg) | Ref |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HJ-05 | 53 | 23 | 28 | 10 | 4 | 30.5 | 14 | 22.5 | 10 | M8 | 1.5° | 0.4 | Fig2 |
| HJ-06 | 67 | 31 | 36 | 12 | 5 | 39 | 20 | 28 | 12 | M10 | 1.5° | 0.95 | Fig2 |
| HJ-06-3 | 67 | 31 | 49 | 12 | 5 | 18 | 20 | 19 | 12 | M10 | 1.5° | 1 | Fig1 |
| HJ-08 | 86 | 35 | 51 | 14 | 5 | 31 | 25 | 18 | 12 | M12 | 1.5° | 1.95 | Fig1 |
| HJ-10 | 100 | 40 | 54 | 16 | 5 | 43 | 30 | 17 | 14 | M12 | 1.5° | 2.85 | Fig1 |
| HJ-12 | 103 | 50 | 52 | 21(18) | 5 | 69.5 | 30 | 43.5 | 20 | M16(M14) | 1.5° | 3.9 | Fig2 |
| HJ-12-3 | 103 | 50 | / | 21(18) | 5 | / | 30 | / | / | M16(M14) | 1.5° | 4 | Fig1 |
| HJ-15(18) | 149 | 62 | 86 | 22(25.5) | 8(5) | 55 | 43 | 38 | 20 | M20 | 1.5° | 9.45 | Fig1 |
| HJ-15-1 | 149 | 62 | 86 | 26 | 8 | 55 | 43 | 38 | 20 | M20 | 3.0° | 9.45 | Fig1 |
| HJ-24(21) | 159.5 | 80 | 90 | 25 | 9 | 104.5 | 50 | 55 | 40 | M20 | 3.0° | 14.3 | Fig2 |
| HJ-32 | 159.5 | 80 | 90 | 25 | 9 | 104.5 | 50 | 55 | 40 | M20 | 3.0° | 14.3 | Fig2 |
| HJ-40(50) | 223 | 85 | 117 | 30 | 7 | 72.6 | 38.1 | 140 | 83 | M24 | Fig3 | ||
| HJ-63(79) | 223 | 110 | 117 | 30 | 7 | 72.6 | 38.1 | 140 | 83 | M24 | Fig3 |
Other option of serration pitch: 3.0*60°
Subject to technical changes
