| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OMATEI |
| Model Number: | 12081306,12081636,12082036 etc. |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | HARD JAWS FOR DIN STANDARD SMW BRAND POWER CHUCK | Material: | 45#Steel |
|---|---|---|---|
| Function: | Clamping | Feature: | High Quality /High Precision |
| Usage: | Refer To The Specification | Service: | ODM/OEM Is Available |
| Highlight: | kitagawa hard jaws, kitagawa chuck parts |
||

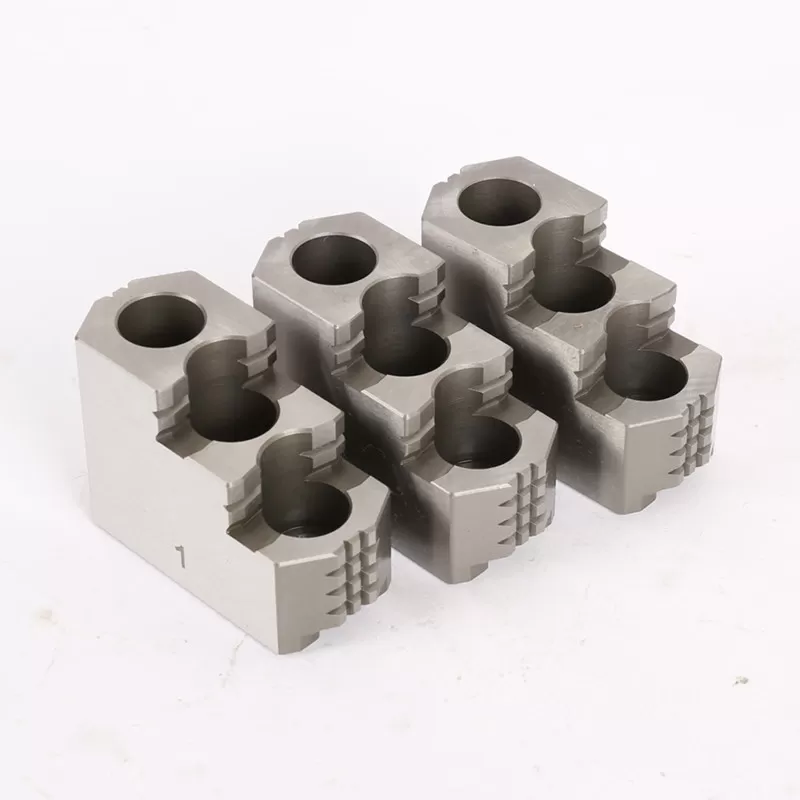

HARD JAWS FOR DIN STANDARD SMW BRAND POWER CHUCK
Brand:OMATEI
Selection Guidance
1, Chuck brand and model name
2, Workpiece size and the gripping height
Advantage
1, For standard soft jaws, the material is high quality 45# steel, stronger and hardenable.
2, Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
3, Applicable onto the related chuck models of SMW/Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/Autogrip/NTH and so on well-known brand.
4, Customized and non-standard jaws and be designed and OEM.
Hard top jaws

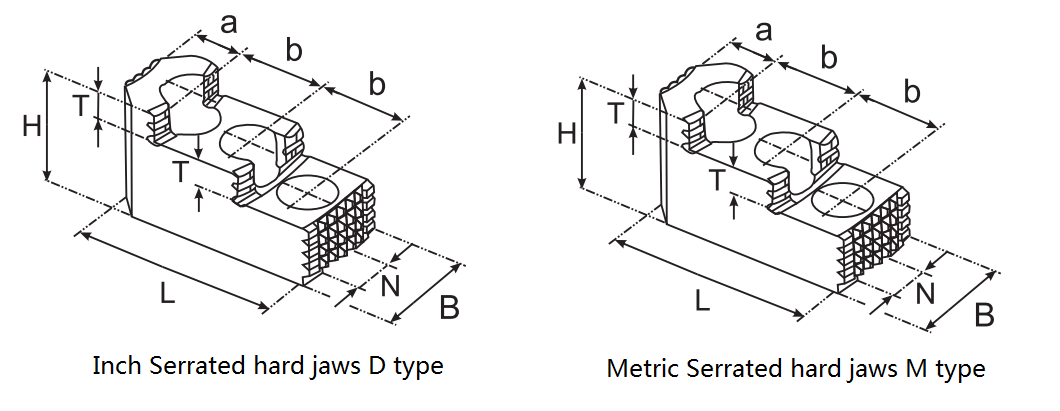

Inch serrated hard top jaws“D”
if high concentricity is required jaws have to be ground on the chuck at clamping pressure
| Id.No. | Serration inch | B mm | H mm | L mm | N mm | T mm | a mm | b mm | Mass kg/jaw |
|---|---|---|---|---|---|---|---|---|---|
| 12081306 | 1/16″×90° | 30 | 34 | 58 | 12 | 8.5 | 13 | 16 | 0.2 |
| 12081636 | 1/16″×90° | 34 | 39 | 65 | 14 | 10 | 18 | 16.5 | 0.3 |
| 12082036 | 1/16″×90° | 40 | 45 | 82 | 17 | 10.5 | 19 | 23 | 0.57 |
| 12082626 | 1/16″×90° | 45 | 56 | 100 | 17 | 15.5 | 23 | 30 | 0.85 |
| 12083036 | 1/16″×90° | 45 | 56 | 105 | 21 | 13.5 | 26 | 30 | 0.95 |
| 12084006 | 1/16″×90° | 55 | 73 | 120 | 21 | 22 | 30 | 34 | 1.7 |
| 12085046 | 3/32″×90° | 55 | 73 | 145 | 25.5 | 32 | 46 | 38 | 2.2 |
| 12084546 | 3/32″×90° | 60 | 75 | 140 | 25.5 | 19 | 38 | 38 | 2.5 |
| 12086346 | 3/32″×90° | 70 | 75 | 145 | 25.5 | 32 | 46 | 38 | 3 |
Metric serrated hard top jaws“M"
if high concentricity is required jaws have to be ground on the chuck at clamping pressure
| Id.No. | Serration inch | B mm | H mm | L mm | N mm | T mm | a mm | b mm | Mass kg/jaw |
| 12081307 | 1.5×60° | 30 | 34 | 58 | 12 | 8.5 | 13 | 16 | 0.2 |
| 12081627 | 1.5×60° | 34 | 39 | 67 | 12 | 10 | 14 | 20 | 0.31 |
| 12082127 | 1.5×60° | 40 | 45 | 86 | 14 | 10.5 | 19 | 25 | 0.6 |
| 12082627 | 1.5×60° | 45 | 56 | 100 | 16 | 15.5 | 23 | 30 | 0.85 |
| 12083037 | 1.5×60° | 45 | 56 | 105 | 21 | 13.5 | 26 | 30 | 0.95 |
| 12084007 | 1.5×60° | 55 | 73 | 120 | 21 | 22 | 30 | 34 | 1.7 |
| 12084047 | 1.5×60° | 55 | 73 | 145 | 25.5 | 32 | 46 | 38 | 2.2 |
| 12084527 | 1.5×60° | 60 | 75 | 140 | 22 | 19 | 38 | 38 | 2.5 |
Subject to technical changes
