| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OMATEI |
| Model Number: | 12081307,12081627,12082127 etc. |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | HARD JAWS FOR DIN STANDARD SMW CHUCK INCH TYPE | Material: | 45#Steel |
|---|---|---|---|
| Function: | Clamping | Feature: | High Quality /High Precision |
| Usage: | Refer To The Specification | Service: | ODM/OEM Is Available |
| Highlight: | metal lathe chuck jaws, kitagawa chuck parts |
||

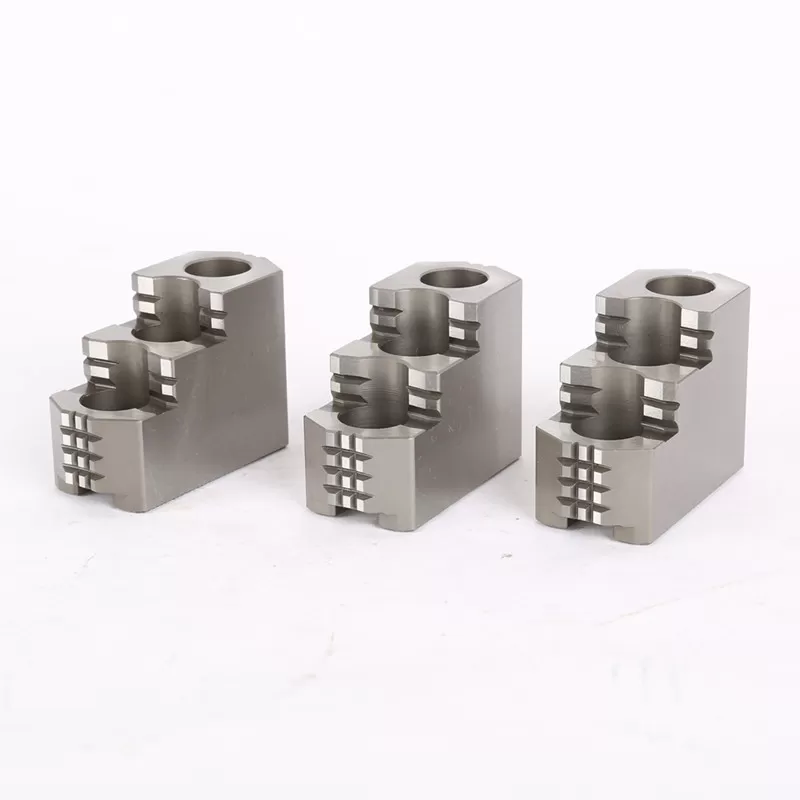

HARD JAWS FOR DIN STANDARD SMW CHUCK INCH TYPE
Brand:OMATEI
Selection Guidance
1, Chuck brand and model name
2, Workpiece size and the gripping height
Advantage
1, For standard soft jaws, the material is high quality 45# steel, stronger and hardenable.
2, Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
3, Applicable onto the related chuck models of SMW/Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/Autogrip/NTH and so on well-known brand.
4, Customized and non-standard jaws and be designed and OEM.

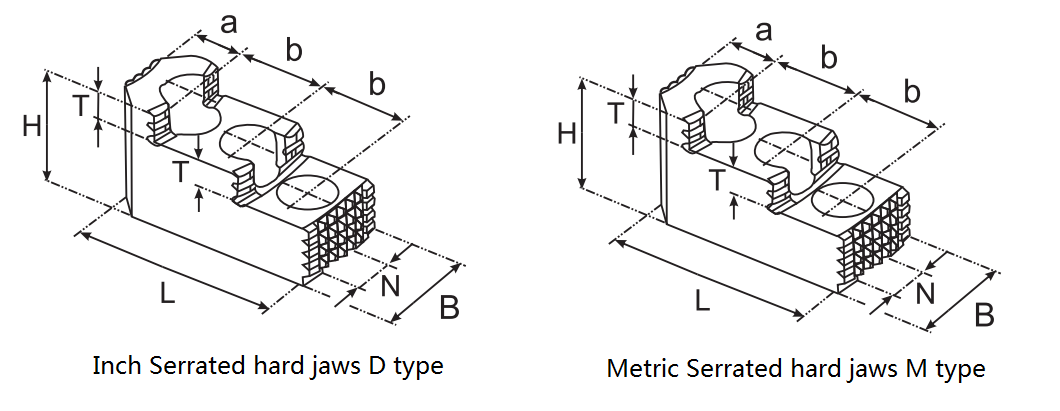

Metric serrated hard top jaws“M"
Metric Serrated hard jaws M type
if high concentricity is required jaws have to be ground on the chuck at clamping pressure
| Id.No. | Serration inch | B mm | H mm | L mm | N mm | T mm | a mm | b mm | Mass kg/jaw |
| 12081307 | 1.5×60° | 30 | 34 | 58 | 12 | 8.5 | 13 | 16 | 0.2 |
| 12081627 | 1.5×60° | 34 | 39 | 67 | 12 | 10 | 14 | 20 | 0.31 |
| 12082127 | 1.5×60° | 40 | 45 | 86 | 14 | 10.5 | 19 | 25 | 0.6 |
| 12082627 | 1.5×60° | 45 | 56 | 100 | 16 | 15.5 | 23 | 30 | 0.85 |
| 12083037 | 1.5×60° | 45 | 56 | 105 | 21 | 13.5 | 26 | 30 | 0.95 |
| 12084007 | 1.5×60° | 55 | 73 | 120 | 21 | 22 | 30 | 34 | 1.7 |
| 12084047 | 1.5×60° | 55 | 73 | 145 | 25.5 | 32 | 46 | 38 | 2.2 |
| 12084527 | 1.5×60° | 60 | 75 | 140 | 22 | 19 | 38 | 38 | 2.5 |
Inch serrated hard top jaws“D”
if high concentricity is required jaws have to be ground on the chuck at clamping pressure
| Id.No. | Serration inch | B mm | H mm | L mm | N mm | T mm | a mm | b mm | Mass kg/jaw |
|---|---|---|---|---|---|---|---|---|---|
| 12081306 | 1/16″×90° | 30 | 34 | 58 | 12 | 8.5 | 13 | 16 | 0.2 |
| 12081636 | 1/16″×90° | 34 | 39 | 65 | 14 | 10 | 18 | 16.5 | 0.3 |
| 12082036 | 1/16″×90° | 40 | 45 | 82 | 17 | 10.5 | 19 | 23 | 0.57 |
| 12082626 | 1/16″×90° | 45 | 56 | 100 | 17 | 15.5 | 23 | 30 | 0.85 |
| 12083036 | 1/16″×90° | 45 | 56 | 105 | 21 | 13.5 | 26 | 30 | 0.95 |
| 12084006 | 1/16″×90° | 55 | 73 | 120 | 21 | 22 | 30 | 34 | 1.7 |
| 12085046 | 3/32″×90° | 55 | 73 | 145 | 25.5 | 32 | 46 | 38 | 2.2 |
| 12084546 | 3/32″×90° | 60 | 75 | 140 | 25.5 | 19 | 38 | 38 | 2.5 |
| 12086346 | 3/32″×90° | 70 | 75 | 145 | 25.5 | 32 | 46 | 38 | 3 |
Subject to technical changes
