| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OMATEI |
| Model Number: | SC-06 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for the sea and air shipping |
| Delivery Time: | 3work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | 6 Inch Lathe Soft Jaws For Hydraulic Power Chuck B-206 | Material: | 45#Steel/Aluminum/Plastic/Brass |
|---|---|---|---|
| Function: | Clamping | Feature: | High Quality /High Precision |
| Usage: | Acceories For Chucks | Service: | ODM/OEM Is Available |
| Highlight: | Clamping Soft Jaw Chuck, 6 Inch Lathe Soft Jaws, Hydraulic Power Chuck Lathe Soft Jaws |
||

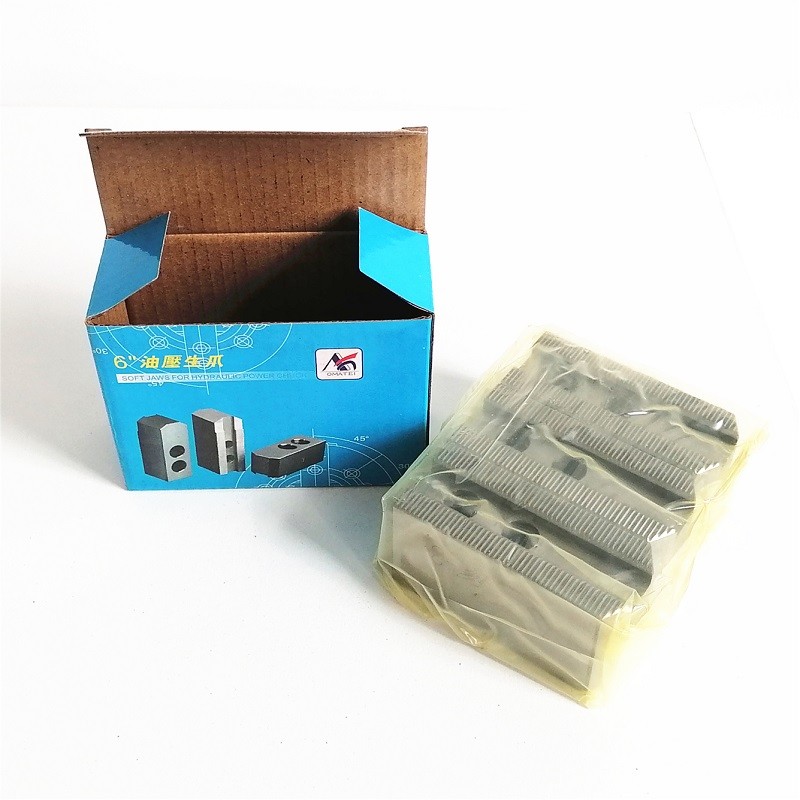

6 Inch Lathe Soft Jaws For Hydraulic Power Chuck B-206
6" INCH SOFT JAWS FOR HYDRAULIC POWER CHUCK B-206
Brand:OMATEI
Advantages
1, Standard soft jaws SC-06, the material is high quality 45# steel, stronger and hardenable.
2, Fine serration pitch can tight fit with the chuck master jaws, so it's lower abrasion.
3, Matched with the related chuck models of Kitagawa B-206/Samchully HS-06/Auto-strong N-206/Tonfou TF3B-6/Chandox OP-206/Autogrip 3H-206/NTH B-206 and so on well-known brand.
4, Customized and non-standard jaws and be designed and OEM.

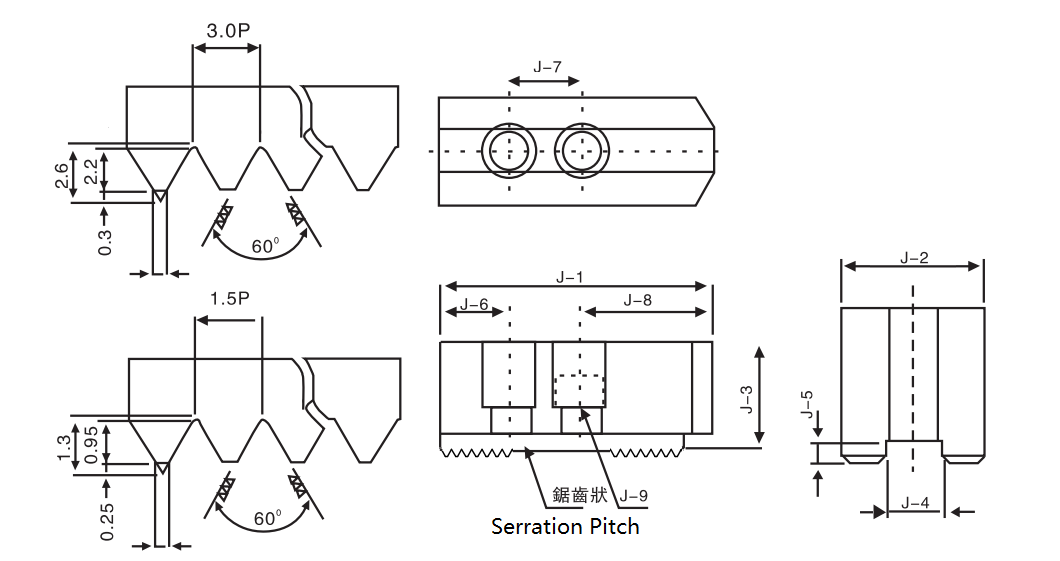

Specification Unit:mm
| SPEC/SIZE | Length J-1 | Width J-2 | Height J-3 | Slot width J-4 | Slot depth J-5 | J-6 | Hole center distance J-7 | J-8 | Screw J-9 | Normal Serration pitch | N.W.(Kg/set) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SC-06 | 73 | 31 | 36 | 12 | 5 | 15 | 20 | 38 | M10 | 1.5×60° | 1.5 |
Other option of serration pitch: 3.0*60°
Subject to technical changes
