| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OMATEI |
| Model Number: | SC08H38P60/90/120,SC08H50P60/90/120,etc |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | SC08 POINTED SOFT JAWS FOR HYDRAULIC POWER CHUCK | Material: | 45#steel/brass/plastic |
|---|---|---|---|
| Function: | Clamping | Feature: | High Quality /High Precision/Pointed |
| Usage: | Refer To The Specification | Service: | ODM/OEM Is Available |
| Highlight: | aluminum soft jaws, machining soft jaws |
||

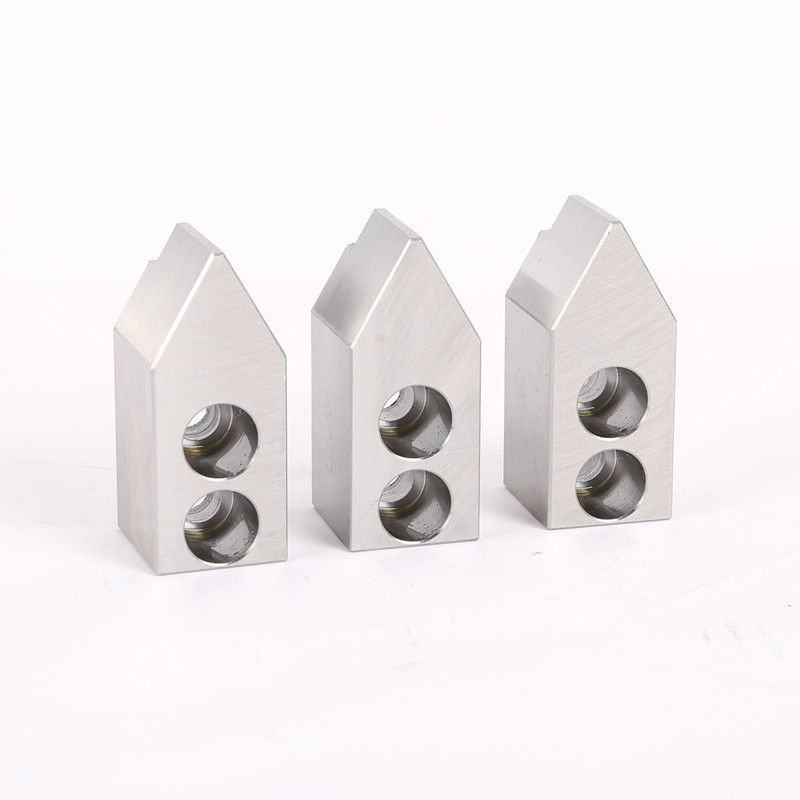

SC08 POINTED SOFT JAWS FOR HYDRAULIC POWER CHUCK
SC08 POINTED SOFT JAWS HYDRAULIC POWER CHUCK
Brand:OMATEI
Selection Guidance
1, Chuck brand and model name
2, Workpiece size and the gripping height
Advantage
1, For standard soft jaws, the material is high quality 45# steel, stronger and hardenable.
2, Customized and non-standard jaws and be designed and OEM.
3, Applicable onto the related chuck models of SMW/Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/Autogrip/NTH and so on well-known brand.
4, Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
Serration Pitch:1.5×60° UNIT:mm

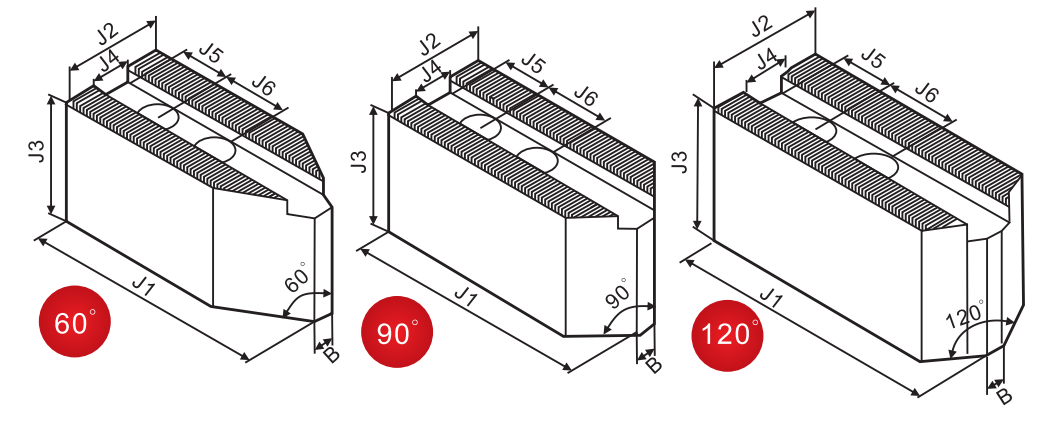

Model | J1 | J2 | J3 | J4 | J5 | J6 | B | Screw | Weight Kg/set |
|---|---|---|---|---|---|---|---|---|---|
| SC08H38P60/90/120 | 95 | 35 | 38 | 14 | 15 | 25 | 3 | M12 | 2.5 |
| SC08H50P60/90/120 | 95 | 35 | 50 | 14 | 15 | 25 | 3 | M12 | 3.2 |
| SC08H60P60/90/120 | 95 | 35 | 60 | 14 | 15 | 25 | 3 | M12 | 3.8 |
| SC08H70P60/90/120 | 95 | 35 | 70 | 14 | 15 | 25 | 3 | M12 | 4.4 |
| SC08H80P60/90/120 | 95 | 35 | 80 | 14 | 15 | 25 | 3 | M12 | 5.1 |
| SC08H90P60/90/120 | 95 | 35 | 90 | 14 | 15 | 25 | 3 | M12 | 5.8 |
| SC08H100P60/90/120 | 95 | 35 | 100 | 14 | 15 | 25 | 3 | M12 | 6.4 |
Option for pointed soft jaws:60/90/120 angle degree or other special requirements;Customized spec can be made.
