| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OMATEI |
| Model Number: | SC06H36P60/90/120; ETC. |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for the sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | SC06 POINTED SOFT JAWS FOR LATHE POWER CHUCK | Material: | 45#Steel/Aluminum/Plastic/Brass |
|---|---|---|---|
| Funcition: | Clamping | Frature: | High Quality /High Precision |
| Usage: | Acceories For Chucks | Service: | ODM/OEM Is Available |
| High Light: | machining soft jaws,cnc soft jaws |
||

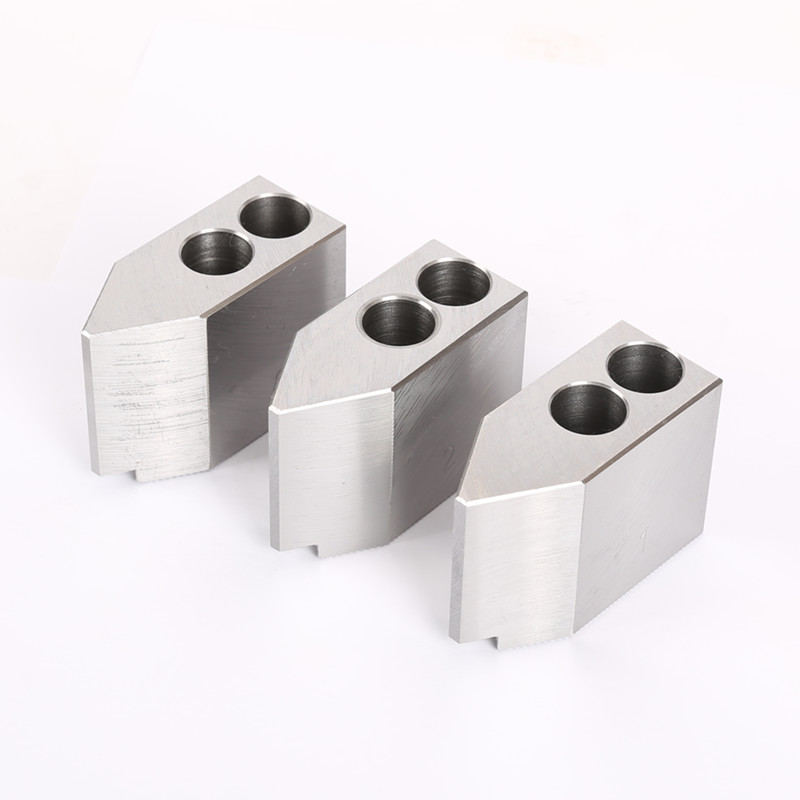

SC06 POINTED SOFT JAWS FOR LATHE POWER CHUCK
Brand:OMATEI
Selection Guidance
1, Chuck brand and model name
2, Workpiece size and the gripping height
Advantage
1, For standard soft jaws, the material is high quality 45# steel, stronger and hardenable.
2, Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
3, Customized and non-standard jaws and be designed and OEM.
4, Applicable onto the related chuck models of SMW/Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/Autogrip/NTH and so on well-known brand.

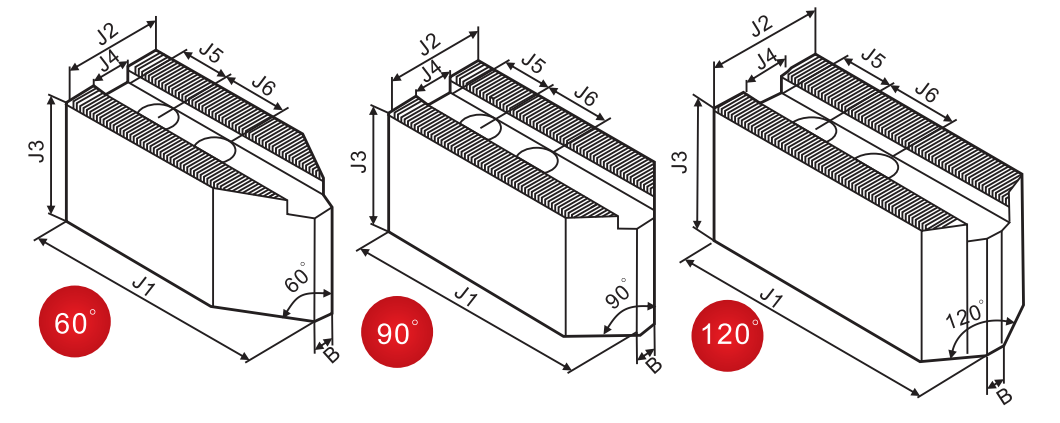

Serration Pitch:1.5×60° UNIT:mm
| Model | J1 | J2 | J3 | J4 | J5 | J6 | B | Screw | Weight kg/set |
| SC06H36P60/90/120 | 73 | 31 | 36 | 12 | 10 | 20 | 3 | M10 | 1.5 |
| SC06H50P60/90/120 | 73 | 31 | 50 | 12 | 10 | 20 | 3 | M10 | 2 |
| SC06H60P60/90/120 | 73 | 31 | 60 | 12 | 10 | 20 | 3 | M10 | 2.5 |
| SC06H70P60/90/120 | 73 | 31 | 70 | 12 | 10 | 20 | 3 | M10 | 2.9 |
| SC06H80P60/90/120 | 73 | 31 | 80 | 12 | 10 | 20 | 3 | M10 | 3.3 |
| SC06H90P60/90/120 | 73 | 31 | 90 | 12 | 10 | 20 | 3 | M10 | 3.7 |
| SC06H100P60/90/120 | 73 | 31 | 100 | 12 | 10 | 20 | 3 | M10 | 4 |
| SC06H110P60/90/120 | 73 | 31 | 110 | 12 | 10 | 20 | 3 | M10 | 4.4 |
| SC06H120P60/90/120 | 73 | 31 | 120 | 12 | 10 | 20 | 3 | M10 | 4.8 |
| SC06H130P60/90/120 | 73 | 31 | 130 | 12 | 10 | 20 | 3 | M10 | 5.3 |
| SC06H140P60/90/120 | 73 | 31 | 140 | 12 | 10 | 20 | 3 | M10 | 5.8 |
| SC06H150P60/90/120 | 73 | 31 | 150 | 12 | 10 | 20 | 3 | M10 | 6.2 |
| SC06H160P60/90/120 | 73 | 31 | 160 | 12 | 10 | 20 | 3 | M10 | 6.6 |
Other option of serration pitch: 3.0*60°
Subject to technical changes
