| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OMATEI |
| Model Number: | SC06H50,SC06H60 etc. |
| Minimum Order Quantity: | 1set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for the sea and air shipping |
| Delivery Time: | 3 work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | SC06 EXTRA HEIGHT SOFT JAWS FOR HYDRAULIC POWER CHUCKS | Material: | 45#Steel/Aluminum/Plastic/Brass |
|---|---|---|---|
| Function: | Clamping | Feature: | High Quality /High Precision |
| Usage: | Acceories For Lathe Chucks | Service: | ODM/OEM Is Available |
| Highlight: | aluminum soft jaws, machining soft jaws |
||

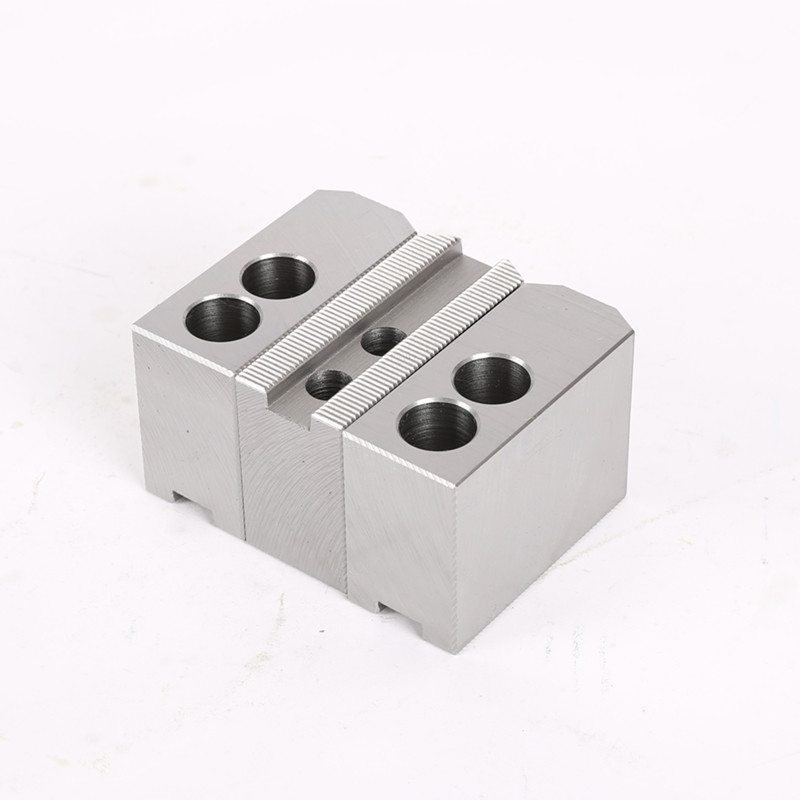

SC06 EXTRA HEIGHT SOFT JAWS FOR HYDRAULIC POWER CHUCKS
SC06 EXTRA HEIGHT SOFT JAWS FOR HYDRAULIC POWER CHUCKS
Brand:OMATEI
Selection Guidance
1, Chuck brand and model name
2, Workpiece size and the gripping height
Advantage
1, Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
2, For standard soft jaws, the material is high quality 45# steel, stronger and hardenable.
3, Applicable onto the related chuck models of SMW/Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/Autogrip/NTH and so on well-known brand.
4, Customized and non-standard jaws and be designed and OEM.

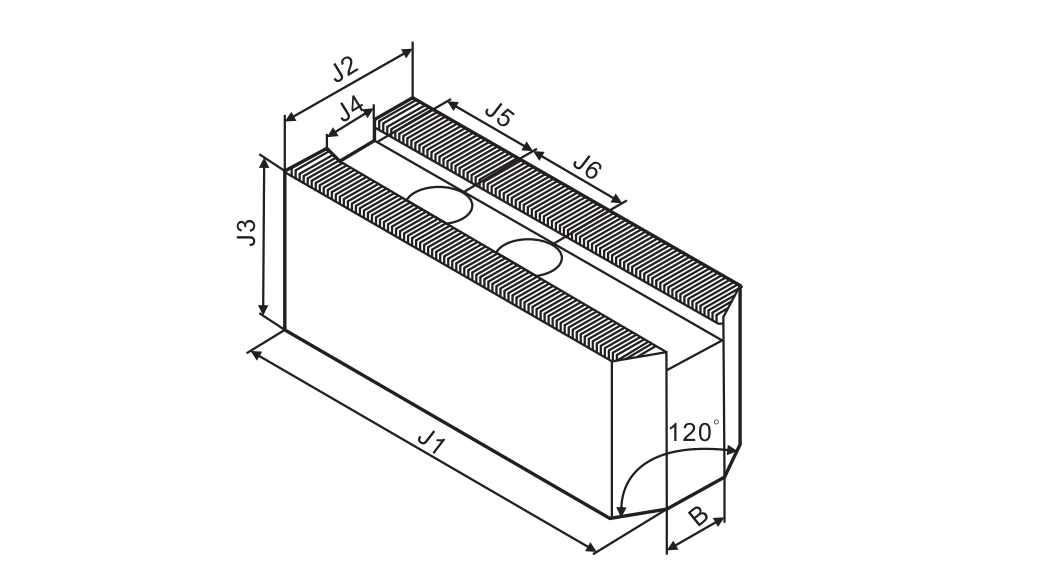

Serration Pitch:1.5×60° UNIT:mm
| Model | J1 | J2 | J3 | J4 | J5 | J6 | B | Screw | Weight kg/set |
| SC06H50 | 73 | 31 | 50 | 12 | 15 | 20 | 14 | M10 | 2 |
| SC06H60 | 73 | 31 | 60 | 12 | 15 | 20 | 14 | M10 | 2.6 |
| SC06H70 | 73 | 31 | 70 | 12 | 15 | 20 | 14 | M10 | 3 |
| SC06H80 | 73 | 31 | 80 | 12 | 15 | 20 | 14 | M10 | 3.4 |
| SC06H90 | 73 | 31 | 90 | 12 | 15 | 20 | 14 | M10 | 3.8 |
| SC06H100 | 73 | 31 | 100 | 12 | 15 | 20 | 14 | M10 | 4.2 |
| SC06H110 | 73 | 31 | 110 | 12 | 15 | 20 | 14 | M10 | 4.6 |
| SC06H120 | 73 | 31 | 120 | 12 | 15 | 20 | 14 | M10 | 5 |
| SC06H130 | 73 | 31 | 130 | 12 | 15 | 20 | 14 | M10 | 5.5 |
| SC06H140 | 73 | 31 | 140 | 12 | 15 | 20 | 14 | M10 | 6 |
| SC06H150 | 73 | 31 | 150 | 12 | 15 | 20 | 14 | M10 | 6.5 |
| SC06H160 | 73 | 31 | 160 | 12 | 15 | 20 | 14 | M10 | 7 |
| SC06H170 | 73 | 31 | 170 | 12 | 15 | 20 | 14 | M10 | 7.5 |
| SC06H180 | 73 | 31 | 180 | 12 | 15 | 20 | 14 | M10 | 8 |
| SC06H190 | 73 | 31 | 190 | 12 | 15 | 20 | 14 | M10 | 8.5 |
| SC06H200 | 73 | 31 | 200 | 12 | 15 | 20 | 14 | M10 | 9 |
Other option of serration pitch: 3.0*60°
Subject to technical changes
