| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OMATEI |
| Model Number: | 1 SET |
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiation |
| Packaging Details: | 3 work days |
| Delivery Time: | T/T, Western Union |
| Payment Terms: | 1000 sets/M |
| Supply Ability: | 45#Steel/Aluminum/Plastic/Brass |
| Product Name: | SC08 EXTRA HEIGHT SOFT JAWS FOR POWER CHUCK | Material: | 45#Steel/Aluminum/Plastic/Brass |
|---|---|---|---|
| Function: | Clamping | Feature: | High Quality /High Precision/Highten |
| Usage: | Refer To The Specification | Service: | ODM/OEM Is Available |
| Highlight: | aluminum soft jaws, machining soft jaws |
||

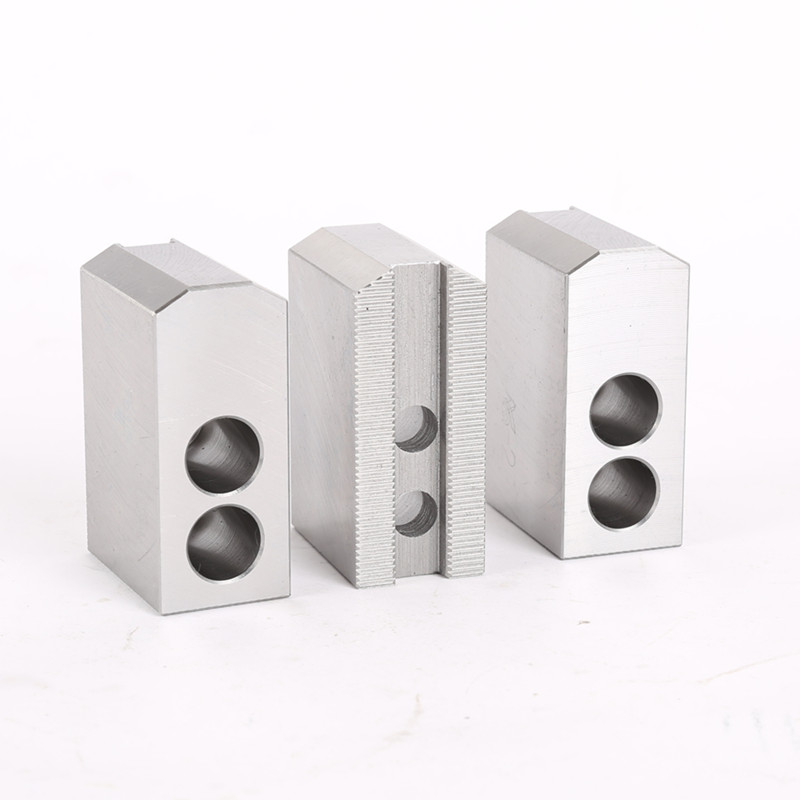

SC08 EXTRA HEIGHT SOFT JAWS FOR POWER CHUCK
SC08 EXTRA HEIGHT SOFT JAWS FOR POWER CHUCK
Brand:OMATEI
Selection Guidance
1, Chuck brand and model name
2, Workpiece size and the gripping height
Advantage
1, For standard soft jaws, the material is high quality 45# steel, stronger and hardenable.
2, Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
3, Applicable onto the related chuck models of Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/Autogrip/SMW/NTH and so on well-known brand.
4, Customized and non-standard jaws and be designed and OEM.

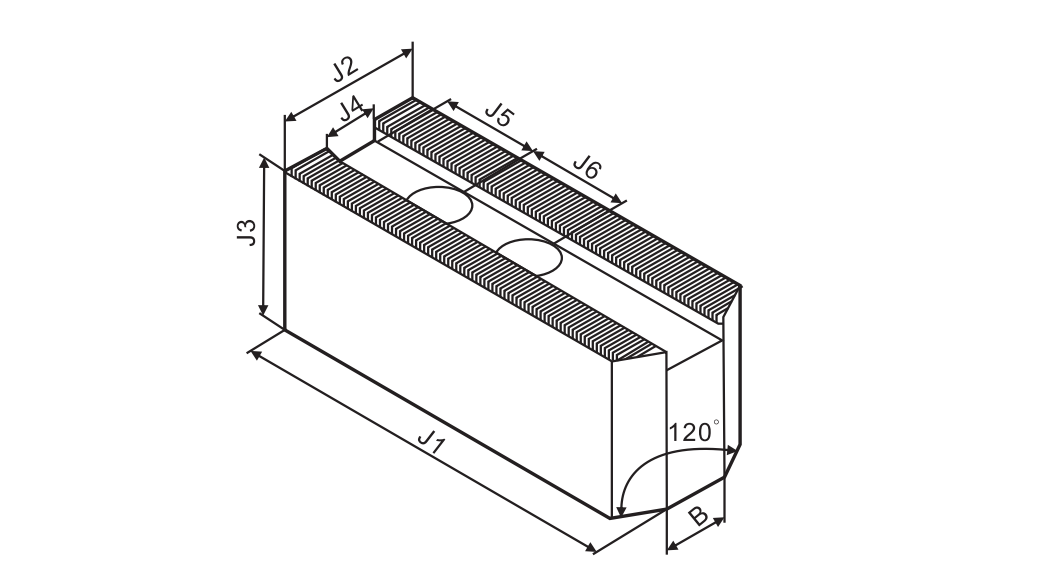

Serration Pitch:1.5×60° UNIT:mm
| Model | J1 | J2 | J3 | J4 | J5 | J6 | B | Screw | Weight Kg/set |
| SC08H50 | 95 | 35 | 50 | 14 | 24 | 25 | 16 | M12 | 3.2 |
| SC08H60 | 95 | 35 | 60 | 14 | 24 | 25 | 16 | M12 | 3.8 |
| SC08H70 | 95 | 35 | 70 | 14 | 24 | 25 | 16 | M12 | 4.4 |
| SC08H80 | 95 | 35 | 80 | 14 | 24 | 25 | 16 | M12 | 5.1 |
| SC08H90 | 95 | 35 | 90 | 14 | 24 | 25 | 16 | M12 | 5.8 |
| SC08H100 | 95 | 35 | 100 | 14 | 24 | 25 | 16 | M12 | 6.4 |
| SC08H110 | 95 | 35 | 110 | 14 | 24 | 25 | 16 | M12 | 7 |
| SC08H120 | 95 | 35 | 120 | 14 | 24 | 25 | 16 | M12 | 7.6 |
| SC08H130 | 95 | 35 | 130 | 14 | 24 | 25 | 16 | M12 | 8.2 |
| SC08H140 | 95 | 35 | 140 | 14 | 24 | 25 | 16 | M12 | 8.8 |
| SC08H150 | 95 | 35 | 150 | 14 | 24 | 25 | 16 | M12 | 9.4 |
| SC08H160 | 95 | 35 | 160 | 14 | 24 | 25 | 16 | M12 | 10.1 |
| SC08H170 | 95 | 35 | 170 | 14 | 24 | 25 | 16 | M12 | 11.7 |
| SC08H180 | 95 | 35 | 180 | 14 | 24 | 25 | 16 | M12 | 11.4 |
| SC08H190 | 95 | 35 | 190 | 14 | 24 | 25 | 16 | M12 | 12 |
| SC08H200 | 95 | 35 | 200 | 14 | 24 | 25 | 16 | M12 | 12.6 |
Other option of serration pitch: 3.0*60°
Subject to technical changes
