| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OMATEI |
| Model Number: | GI-A GI-B |
| Minimum Order Quantity: | 10 PCS |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | Gripper Insert Of Powder Tungsten Steel Alloy | Material: | Tungsten Steel |
|---|---|---|---|
| Function: | For Blackening Surface Workpiece | Feature: | Blackening |
| Usage: | Service: | ODM/OEM Is Available | |
| Highlight: | aluminum soft jaws, cnc soft jaws |
||

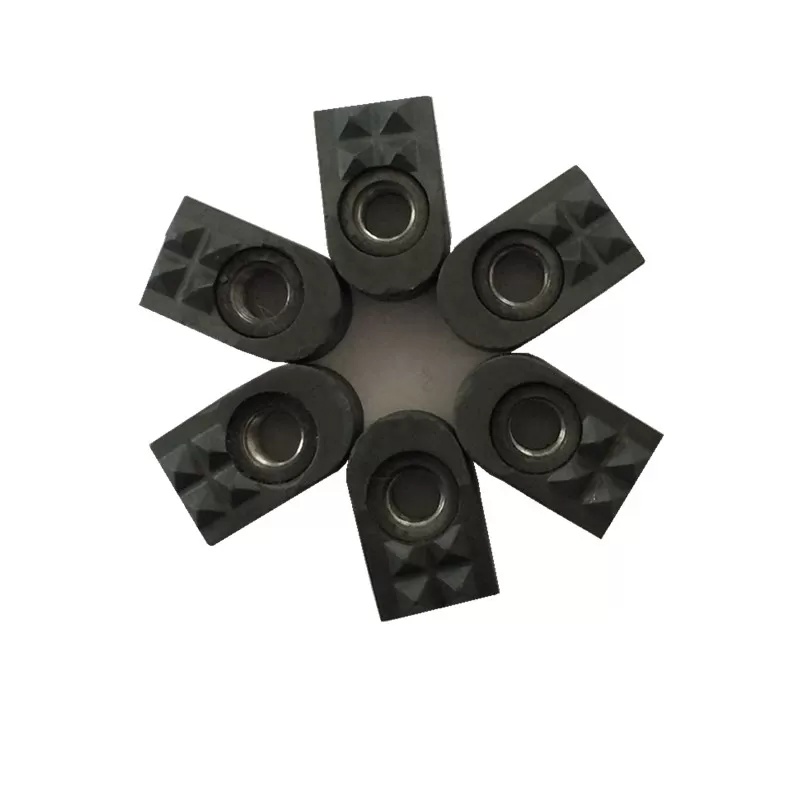

Gripper Insert Of Powder Tungsten Steel Alloy
Gripper insert of powder tungsten steel alloy
Mater:Powder tungsten steel alloy
Application:

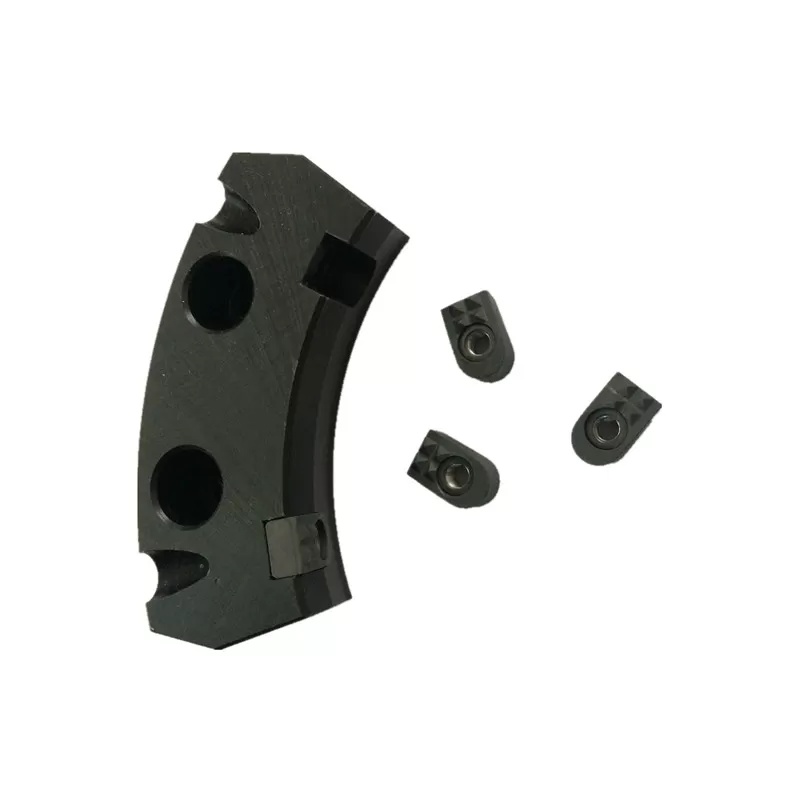

To set the gripper insert onto soft jaws, in order to increase the friction force and strength of clamping workpiece.
It can grip the workpiece with flat or round or taper shape to do rough machining with high efficiency.
Surface: Blackening
Advantages:
Very high hardness and super abrasion resistance and very long working life.
It’s easy to set the gripper insert onto the jaws to make the clamping effect more strong and stable.

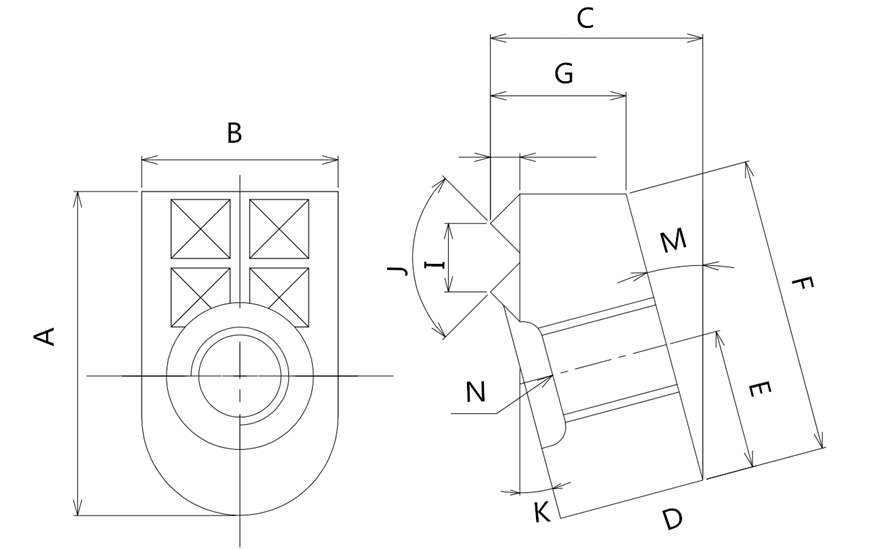

GI-A

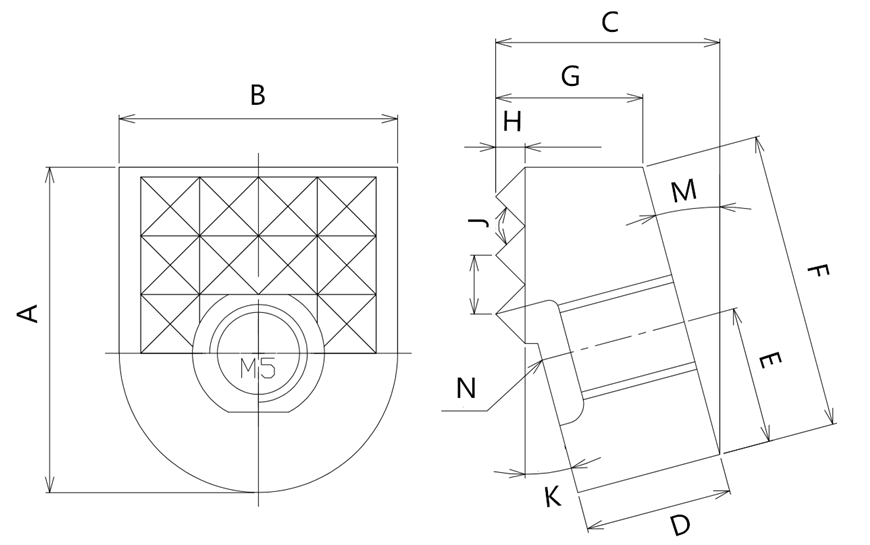

GI-B
Gripper Inserts Unit:mm
SPEC | A | B | C | D | E | F | G | H | I | J | K | M | N |
GI-A | 16.5 | 10 | 10.82 | 8 | 7.15 | 15.1 | 7 | 1.5 | 3.5 | 90° | 15° | 15° | M5 |
GI-B | 16.6 | 14.2 | 11.43 | 8 | 7 | 15.18 | 7.5 | 1.5 | 3 | 90° | 15° | 15° | M5 |
