| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OMATEI |
| Model Number: | HJ-40(50) , HJ-63(79) ETC. |
| Minimum Order Quantity: | 1set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | HJ-40(50) AND HJ-63(79) BIG SIZE HARD JAWS FOR HYDRAULIC POWER CHUCK | Material: | 45#Steel |
|---|---|---|---|
| Function: | Clamping | Feature: | Hardness 57-63 HRC |
| Size: | Refer To The Specification | Service: | ODM/OEM Is Available |
| High Light: | kitagawa hard jaws,kitagawa chuck parts |
||

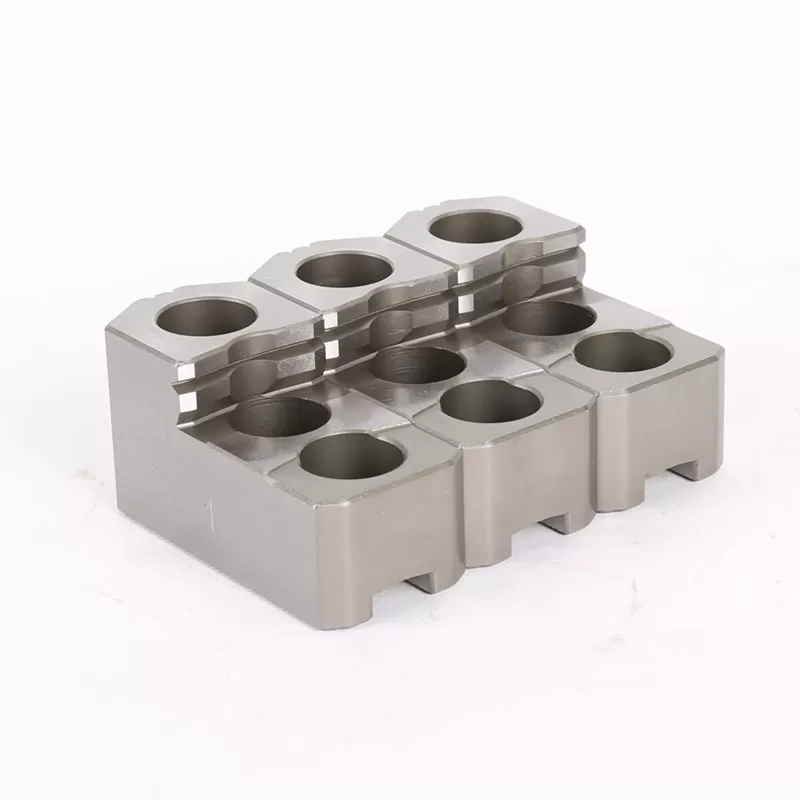

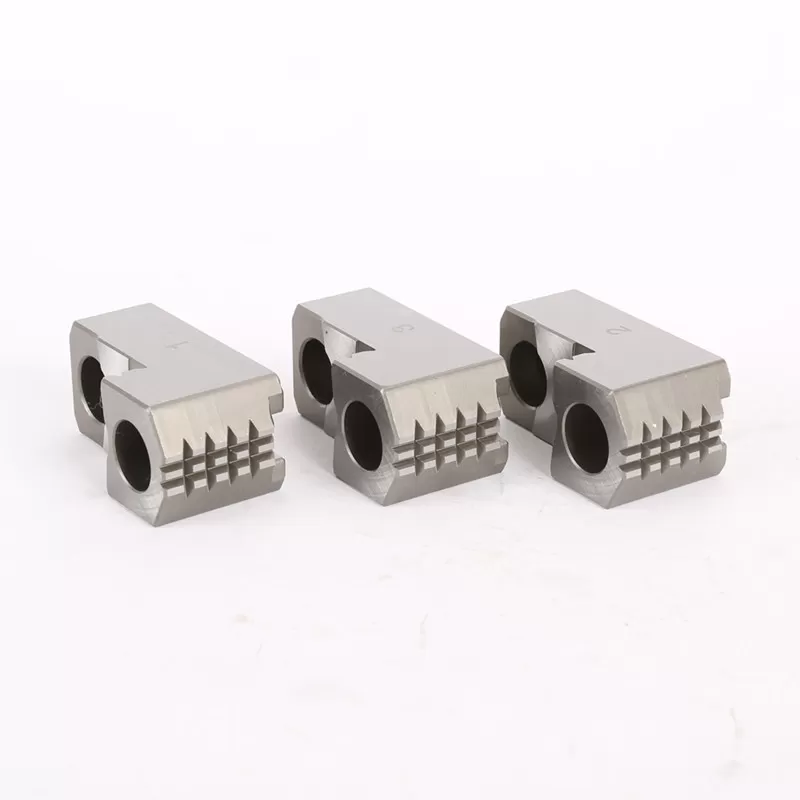

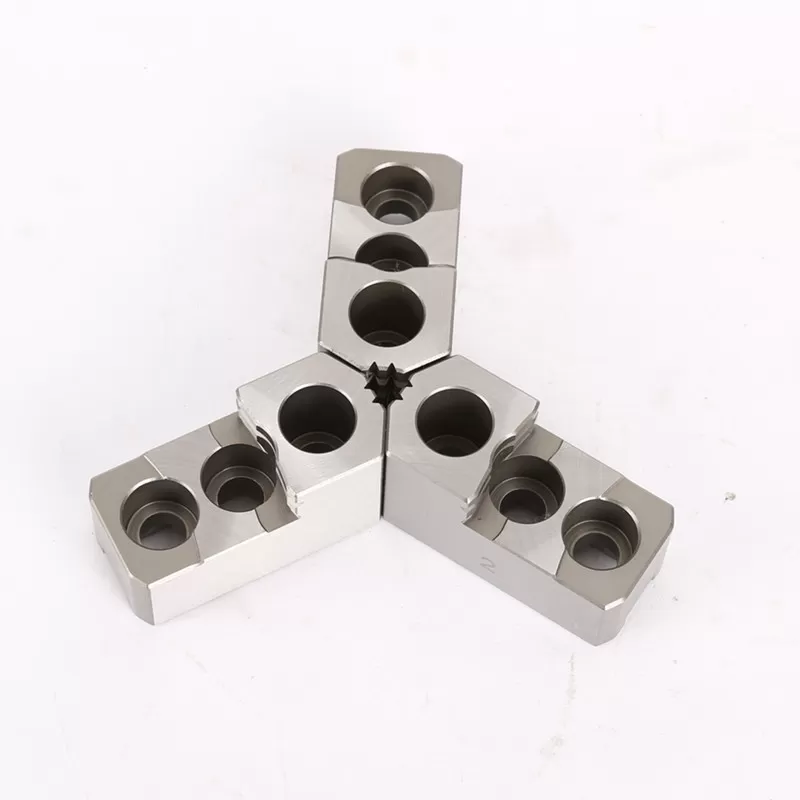

HJ-40(50) AND HJ-63(79) BIG SIZE HARD JAWS FOR HYDRAULIC POWER CHUCK
Brand:OMATEI
Selection Guidance
1, Chuck brand and model name
2, Workpiece size and the gripping height
Advantage
1, For standard soft jaws, the material is high quality 45# steel, stronger and hardenable.
2, Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
3, Applicable onto the related chuck models of SMW/Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/Autogrip/NTH and so on well-known brand.
4, Customized and non-standard jaws and be designed and OEM.
|

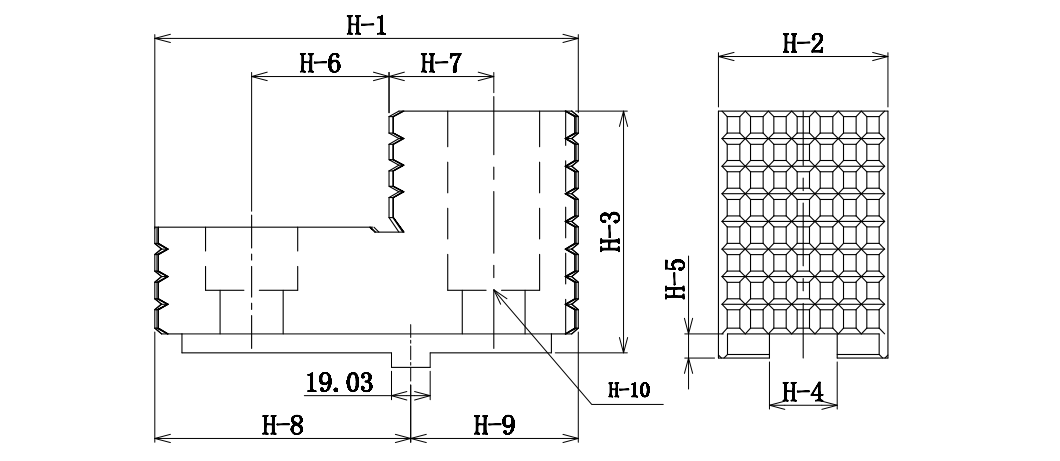

SPEC MODEL |
H-1 |
H-2 |
H-3 |
H-4 |
H-5 |
H-6 |
H-7 |
H-8 |
H-9 |
H-10 |
Gross Weight(kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| HJ-40(50) | 223 | 85 | 117 | 30 | 7 | 72.6 | 38.1 | 140 | 83 | M24 | |
| HJ-63(79) | 223 | 110 | 117 | 30 | 7 | 72.6 | 38.1 | 140 | 83 | M24 |
Subject to technical changes
