Product Name: | HIGH QUALITY STANDARD HARD JAWS FOR HYDRAULIC POWER CHUCK | Material: | 45#Steel |
---|---|---|---|
Function: | Clamping | Feature: | Hardness 57-63 HRC |
Size: | Refer To The Specification | Service: | ODM/OEM Is Available |
Highlight: | metal lathe chuck jaws,kitagawa chuck parts |

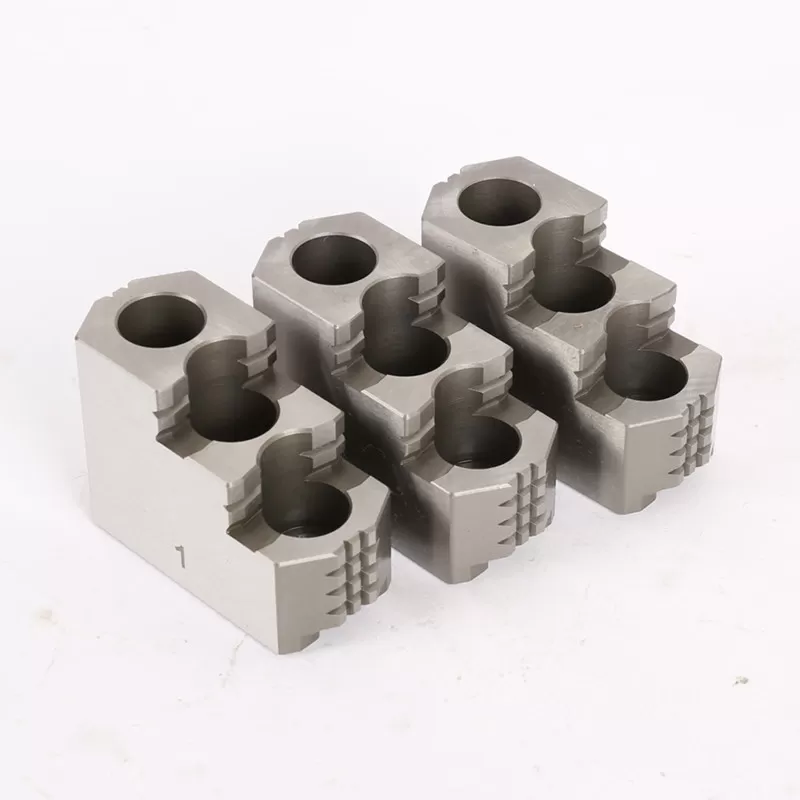

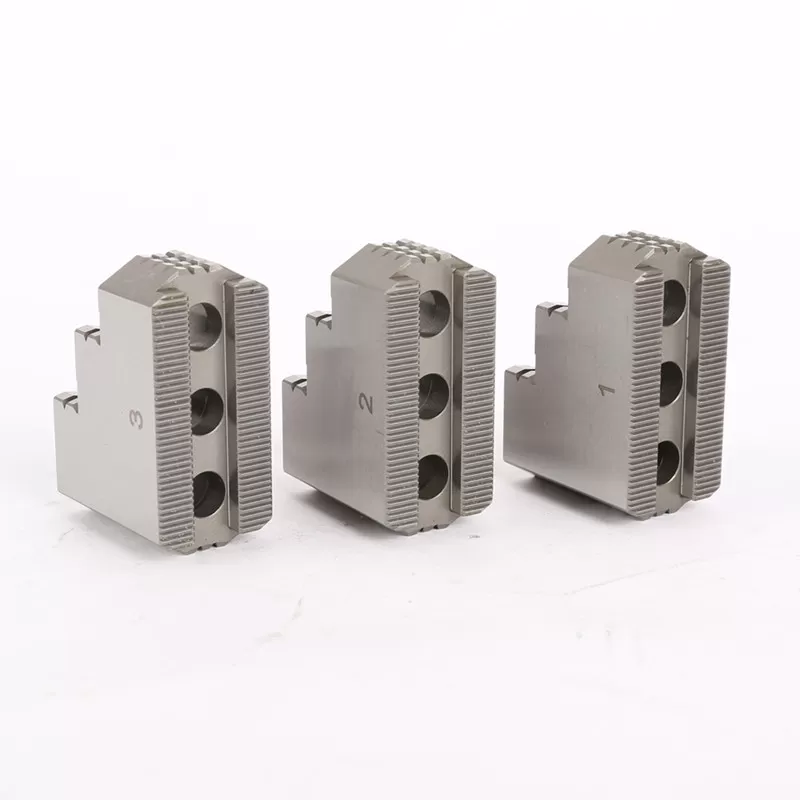

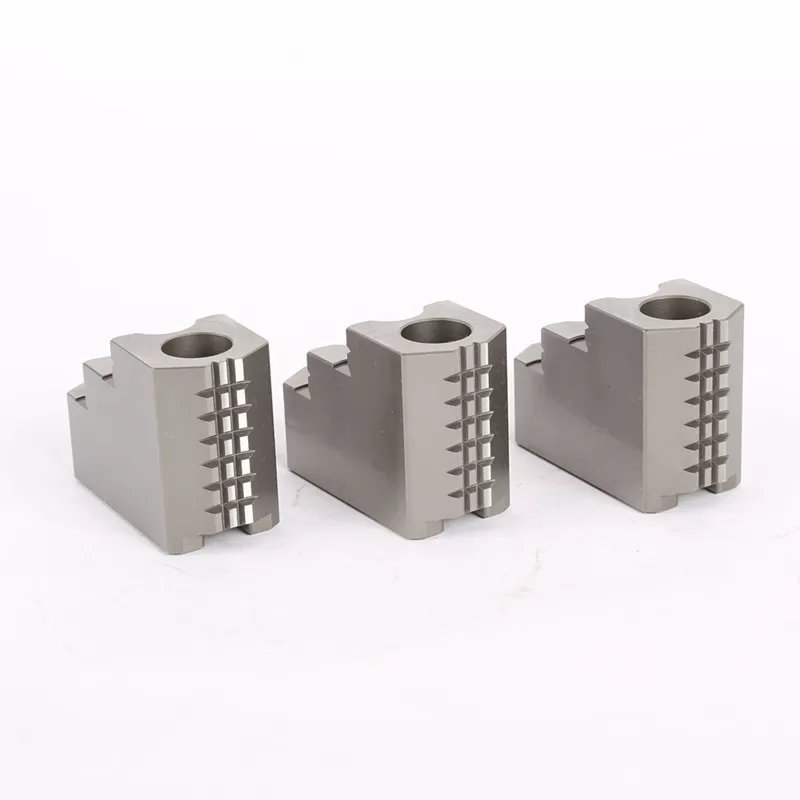

HIGH QUALITY STANDARD HARD JAWS FOR HYDRAULIC POWER CHUCK
Brand:OMATEI
Selection Guidance
1, Chuck brand and model name
2, Workpiece size and the gripping height
Advantage
1, For standard soft jaws, the material is high quality 45# steel, stronger and hardenable.
2, Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
3, Applicable onto the related chuck models of SMW/Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/Autogrip/NTH and so on well-known brand.
4, Customized and non-standard jaws and be designed and OEM.

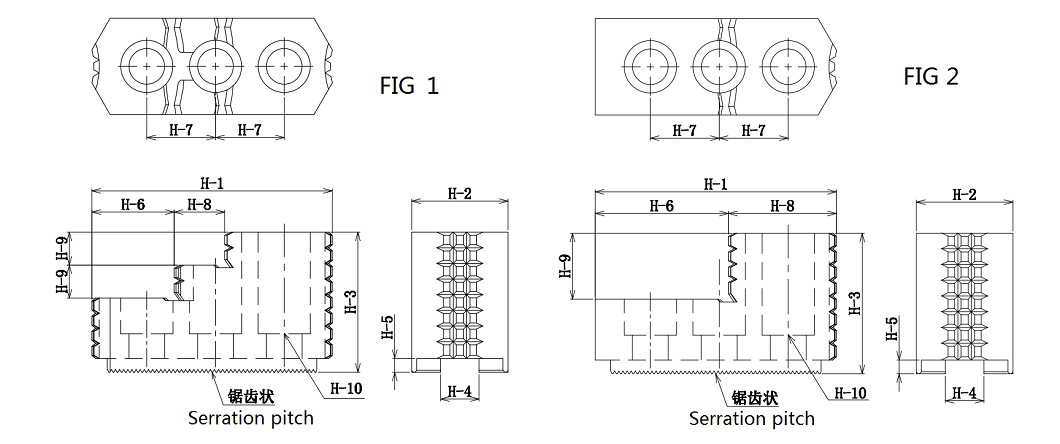

SPEC MODEL |
H-1 |
H-2 |
H-3 |
H-4 |
H-5 |
H-6 |
H-7 |
H-8 |
H-9 |
H-10 |
Serration Pitch |
Gross Weight(kg) |
Ref |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
HJ-05 | 53 | 23 | 28 | 10 | 4 | 30.5 | 14 | 22.5 | 10 | M8 | 1.5° | 0.4 | Fig2 |
HJ-06 | 67 | 31 | 36 | 12 | 5 | 39 | 20 | 28 | 12 | M10 | 1.5° | 0.95 | Fig2 |
HJ-06-3 | 67 | 31 | 49 | 12 | 5 | 18 | 20 | 19 | 12 | M10 | 1.5° | 1 | Fig1 |
HJ-08 | 86 | 35 | 51 | 14 | 5 | 31 | 25 | 18 | 12 | M12 | 1.5° | 1.95 | Fig1 |
HJ-10 | 100 | 40 | 54 | 16 | 5 | 43 | 30 | 17 | 14 | M12 | 1.5° | 2.85 | Fig1 |
HJ-12 | 103 | 50 | 52 | 21(18) | 5 | 69.5 | 30 | 43.5 | 20 | M16(M14) | 1.5° | 3.9 | Fig2 |
HJ-12-3 | 103 | 50 | / | 21(18) | 5 | / | 30 | / | / | M16(M14) | 1.5° | 4 | Fig1 |
HJ-15(18) | 149 | 62 | 86 | 22(25.5) | 8(5) | 55 | 43 | 38 | 20 | M20 | 1.5° | 9.45 | Fig1 |
HJ-15-1 | 149 | 62 | 86 | 26 | 8 | 55 | 43 | 38 | 20 | M20 | 3.0° | 9.45 | Fig1 |
HJ-24(21) | 159.5 | 80 | 90 | 25 | 9 | 104.5 | 50 | 55 | 40 | M20 | 3.0° | 14.3 | Fig2 |
HJ-32 | 159.5 | 80 | 90 | 25 | 9 | 104.5 | 50 | 55 | 40 | M20 | 3.0° | 14.3 | Fig2 |
Other option of serration pitch: 3.0*60°
Subject to technical changes
