| Product Name: | HIGH PRECISION SOFT TOP JAWS FOR HYDRAULIC CHUCKS , SOFT CHUCK JAWS OEM ODM | Material: | 45#Steel/Aluminum/Plastic/Brass |
|---|---|---|---|
| Function: | Clamping | Feature: | High Quality /High Precision |
| Usage: | Acceories For Chucks | Service: | ODM/OEM Is Available |
| Highlight: | aluminum soft jaws, cnc soft jaws |
||

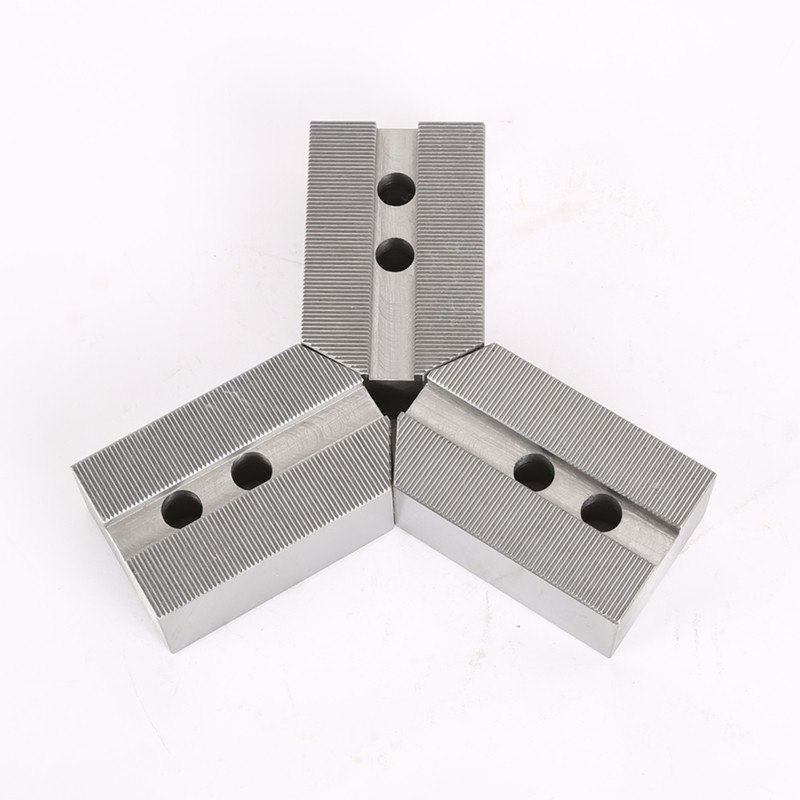

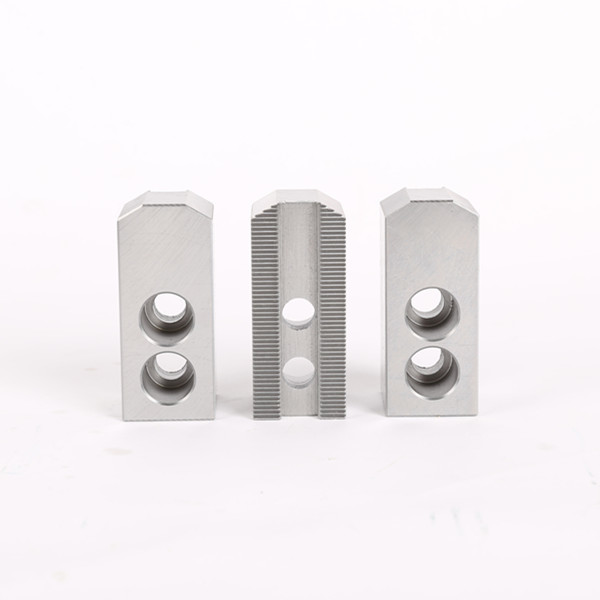

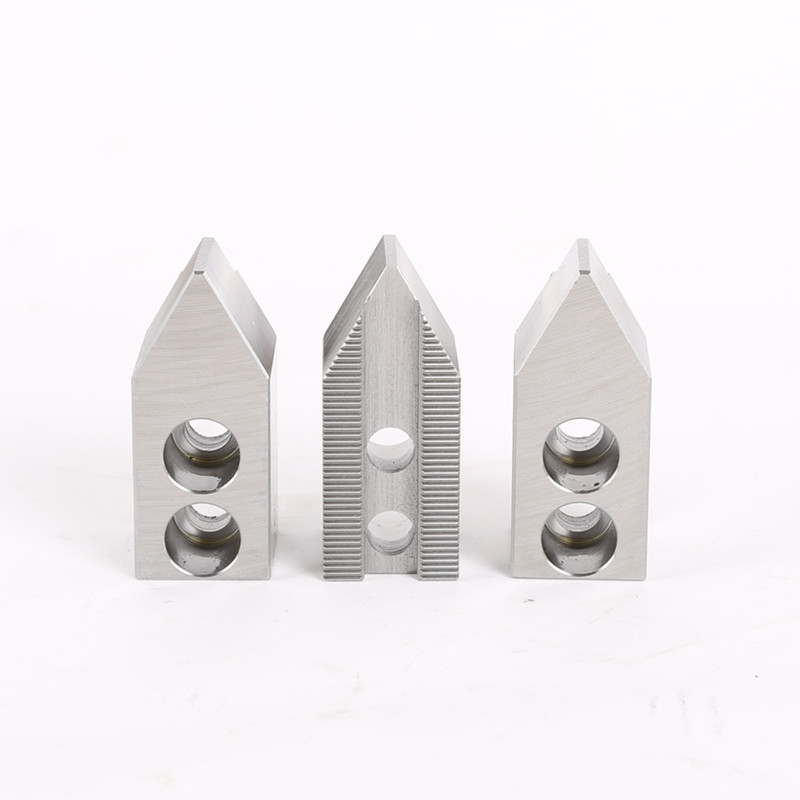

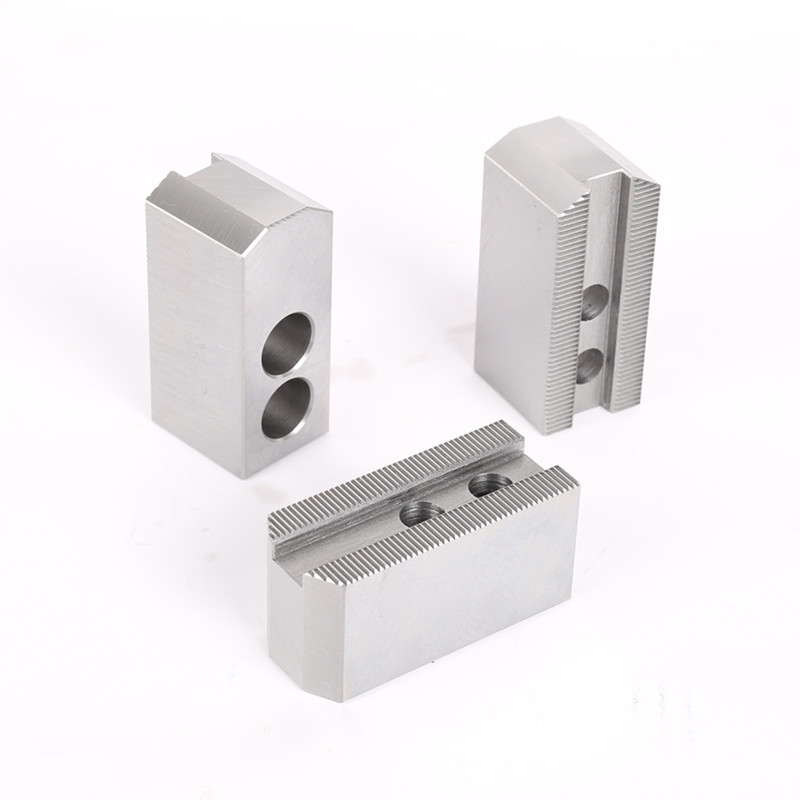

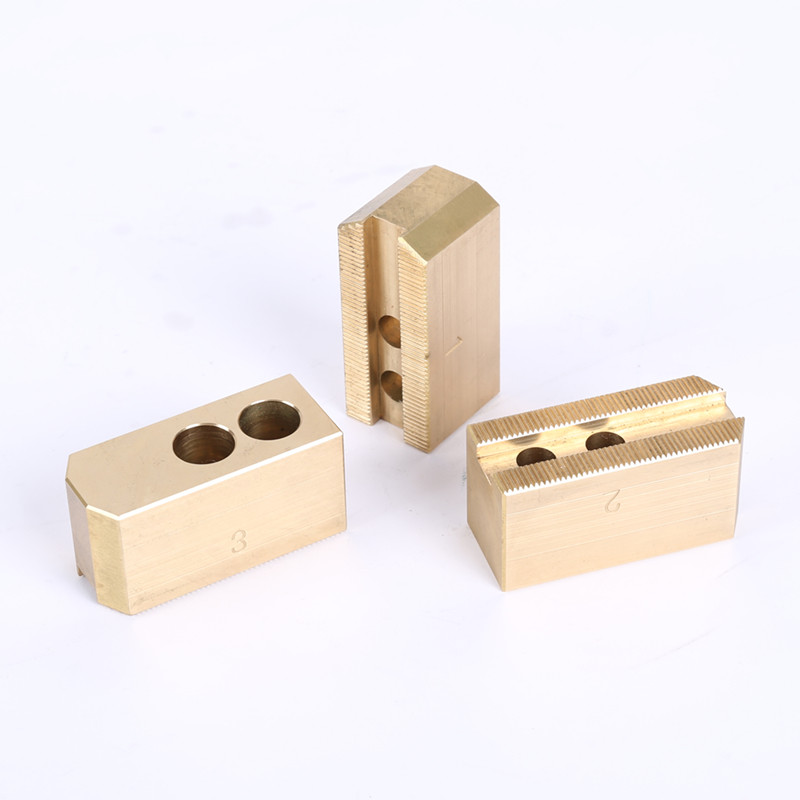

HIGH PRECISION SOFT TOP JAWS FOR HYDRAULIC CHUCKS , SOFT CHUCK JAWS OEM ODM
HIGH PRECISION SOFT TOP JAWS FOR HYDRAULIC CHUCKS , SOFT CHUCK JAWS OEM ODM MANUFACTURER
Brand:OMATEI
Selection Guidance
1, Chuck brand and model name
2, Workpiece size and the gripping height
Advantages
1, For standard soft jaws, the material is high quality 45# steel, stronger and hardenable.
2, Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
3, Applicable onto the related chuck models of SMW/Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/Autogrip/NTH and so on well-known brand.
4, Customized and non-standard jaws and be designed and OEM.
Specification Unit:mm

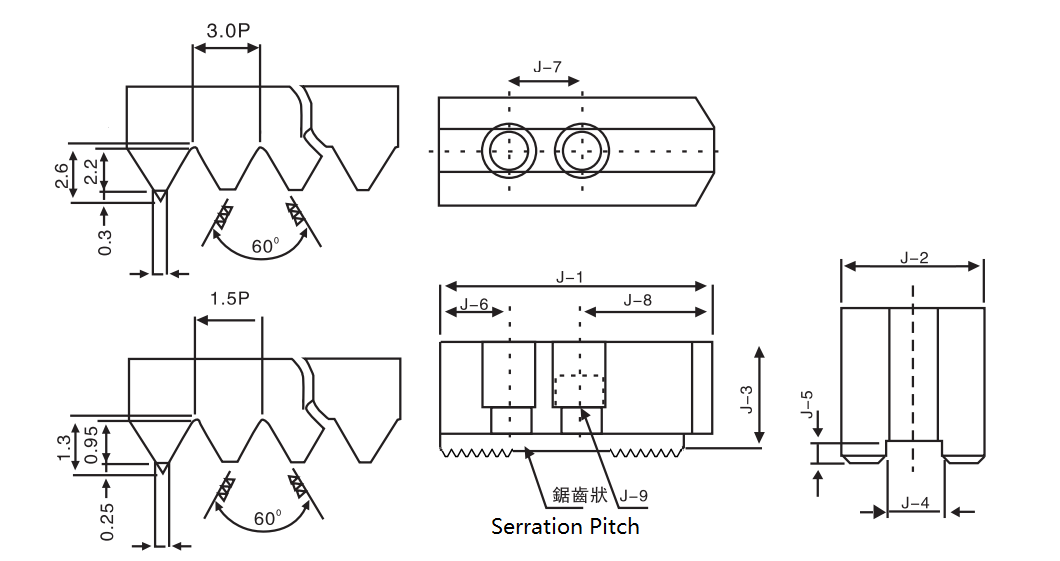

| SPEC/SIZE | Length J-1 | Width J-2 | Height J-3 | Slot width J-4 | Slot depth J-5 | J-6 | Hole center distance J-7 | J-8 | Screw J-9 | Normal Serration pitch | N.W.(Kg/set) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SC-04 | 53 | 23 | 23 | 10 | 4 | 9 | 14 | 29 | M8 | 1.5×60° | 0.42 |
| SC-05 | 62 | 25 | 30 | 10 | 4 | 10 | 14 | 38 | M8 | 1.5×60° | 0.85 |
| SC-06 | 73 | 31 | 36 | 12 | 5 | 15 | 20 | 38 | M10 | 1.5×60° | 1.5 |
| SC-08 | 95 | 35 | 38 | 14 | 5 | 24 | 25 | 46 | M12 | 1.5×60° | 2.4 |
| SC-10 | 110 | 40 | 42 | 16 | 5 | 30 | 30 | 50 | M12 | 1.5×60° | 3.6 |
SC-12-NT (Thru) | 129 | 50 | 50 | 21 | 6 | 39 | 30 | 60 | M16 | 1.5×60° | 6.1 |
SC-12-NT (Non-Thru) | 129 | 50 | 50 | 18 | 6 | 39 | 30 | 60 | M14 | 1.5×60° | 6.2 |
SC-15-T SC-18-T (Thru) | 165 | 62 | 62 | 22 | 8 | 37 | 43 | 85 | M20 | 1.5×60° | 12.5 |
SC-15-NT SC-18-NT (Non-Thru) | 165 | 62 | 62 | 25.5(26) | 6(9) | 37 | 43 | 85 | M20 | 1.5×60° | 12.5 |
SC-21 SC-24 | 180 | 65 | 70 | 25 | 9 | 40 | 60 | 80 | M20 | 3.0×60° | 16.2 |
| SC-32 | 210 | 74 | 90 | 25 | 9 | 40 | 80 | 90 | M20 | 3.0×60° | 29.2 |
| SC-40 | 270 | 85 | 110 | 30 | 4 | 76.2 | M24 | ||||
| SC-50 | 270 | 85 | 110 | 30 | 4 | 76.2 | M24 | ||||
| SC-63 | 270 | 110 | 110 | 30 | 4 | 76.2 | M24 | ||||
| SC-79 | 270 | 110 | 110 | 30 | 4 | 76.2 | M24 |
Other option of serration pitch: 3.0*60°
Subject to technical changes
