| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OMATEI |
| Model Number: | 12041660 ，12042060 ，12042560 etc. |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | SOFT TOP JAWS FOR SMW CHUCK DIN STANDARD | Material: | 45#Steel |
|---|---|---|---|
| Function: | Clamping | Feature: | High Quality /High Precision |
| Usage: | Refer To The Specification | Service: | ODM/OEM Is Available |
| Highlight: | machining soft jaws, cnc soft jaws |
||
SOFT TOP JAWS FOR SMW CHUCK DIN STANDARD
SOFT TOP JAWS FOR SMW CHUCK DIN STANDARD
Brand:OMATEI
Selection Guidance
1, Chuck brand and model name
2, Workpiece size and the gripping height
Advantage
1, For standard soft jaws, the material is high quality 45# steel, stronger and hardenable.
2, Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
3, Applicable onto the related chuck models of SMW/Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/Autogrip/NTH and so on well-known brand.
4, Customized and non-standard jaws and be designed and OEM.

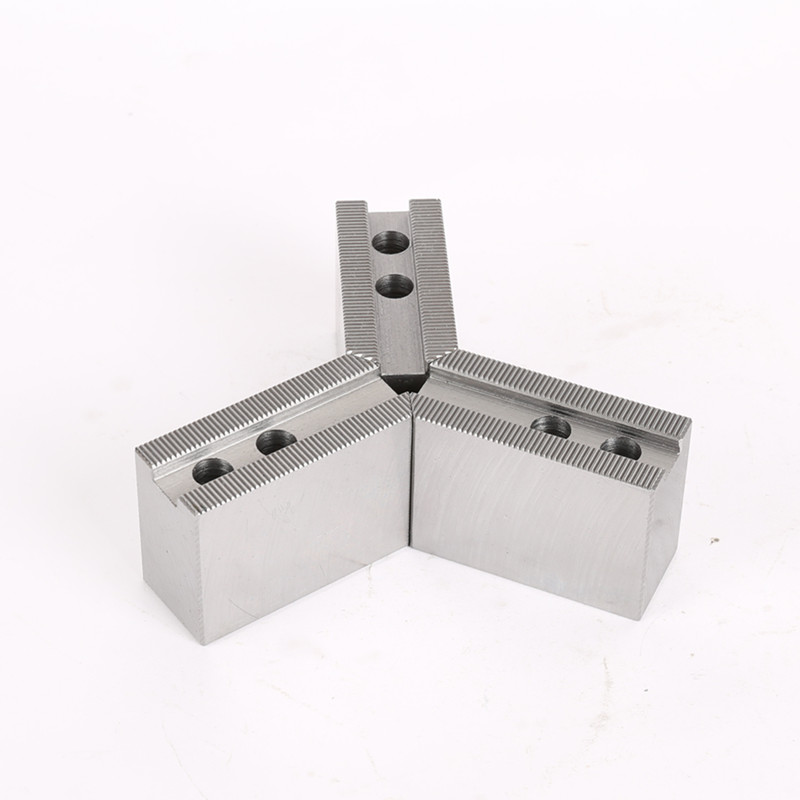

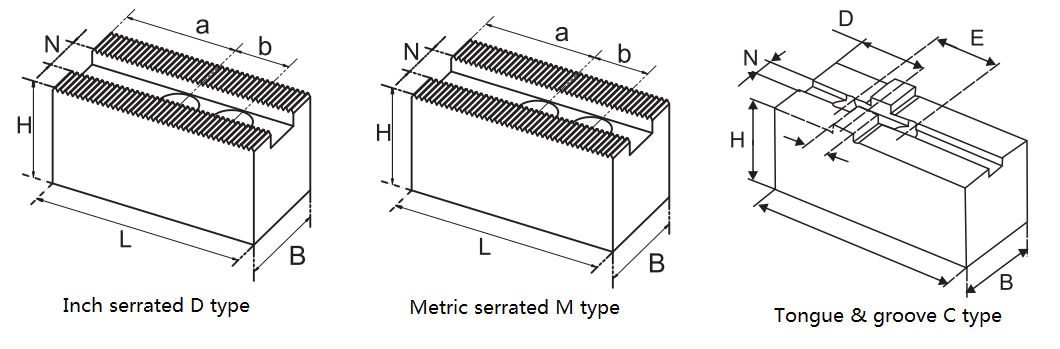

Inch serrated soft blank top jaws “D” type
| Id.No. | Serration inch | B mm | H mm | L mm | N mm | a mm | b mm | Mass kg/jaw |
| 12071300 | 1/16″×90° | 30 | 30 | 60 | 12 | 29 | 16 | 0.3 |
| 12071680 | 1/16″×90° | 30 | 35 | 70 | 14 | 38 | 16.5 | 0.42 |
| 12072130 | 1/16″×90° | 35 | 40 | 90 | 17 | 47 | 23 | 0.85 |
| 12072620 | 1/16″×90° | 40 | 45 | 110 | 17 | 60 | 30 | 1.23 |
| 12072500 | 1/16″×90° | 45 | 45 | 110 | 21 | 60 | 30 | 1.25 |
| 90072500 | 1/16″×90° | 60 | 60 | 120 | 25.5 | 64 | 34 | 2.6 |
| 12073000 | 1/16″×90° | 50 | 50 | 125 | 21 | 73 | 30 | 1.85 |
| 12074030 | 1/16″×90° | 60 | 60 | 140 | 21 | 81 | 34 | 3.2 |
| 12074040 | 3/32″×90° | 60 | 60 | 140 | 25.5 | 75 | 38 | 3.2 |
| 12075050 | 3/32″×90° | 60 | 60 | 170 | 25.5 | 105 | 38 | 3.6 |
| 12075040 | 3/32″×90° | 75 | 75 | 160 | 25.5 | 97 | 38 | 5.5 |
| 12075140 | 3/32″×90° | 60 | 60 | 205 | 25.5 | 104 | 38 | 4.5 |
Metric serrated M type
| Id.No. | Serration inch | B mm | H mm | L mm | N mm | a mm | b mm | Mass kg/jaw |
|---|---|---|---|---|---|---|---|---|
| 12071301 | 1.5×60° | 30 | 30 | 60 | 12 | 29 | 16 | 0.3 |
| 12071621 | 1.5×60° | 30 | 35 | 70 | 12 | 34 | 20 | 0.42 |
| 12072121 | 1.5×60° | 35 | 40 | 90 | 14 | 47 | 25 | 0.85 |
| 12072621 | 1.5×60° | 45 | 45 | 110 | 16 | 60 | 30 | 1.3 |
| 12073001 | 1.5×60° | 50 | 50 | 125 | 21 | 73 | 30 | 1.85 |
| 12074021 | 1.5×60° | 60 | 60 | 140 | 22 | 75 | 38 | 3.2 |
| 12074031 | 1.5×60° | 60 | 60 | 140 | 21 | 81 | 34 | 3.2 |
| 12074041 | 1.5×60° | 60 | 60 | 140 | 25.5 | 75 | 38 | 3.2 |

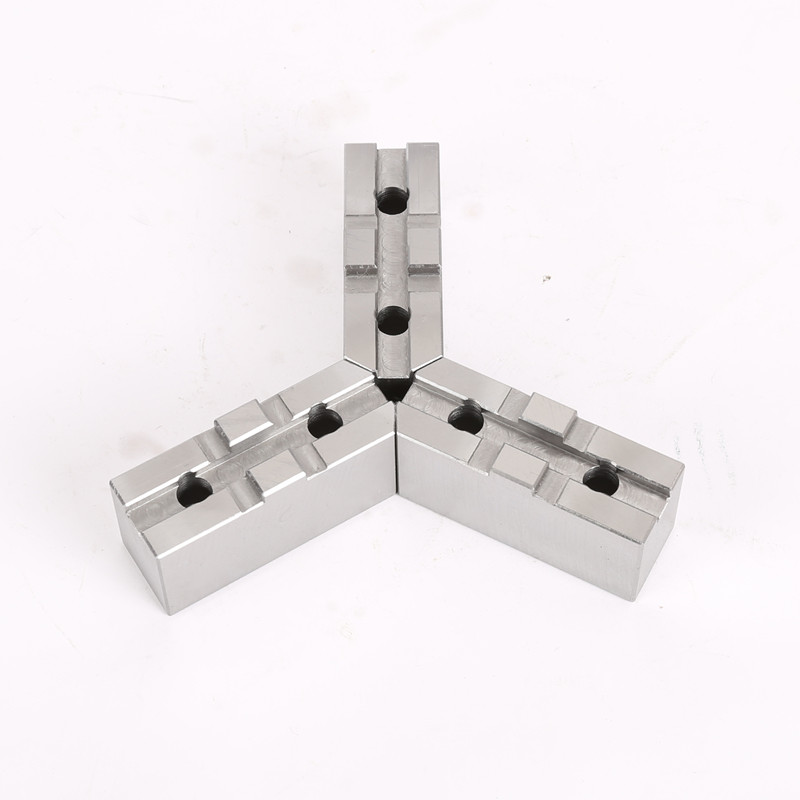

American standard Tongue & groove soft blank top jaws “C”
| Id.No. | B mm | H mm | L mm | N mm | D mm | E mm | I mm | Mass kg/jaw |
| 12041660 | 30 | 35 | 80 | 7.94 | 30 | 38.1 | 12.68 | 0.58 |
| 12042060 | 40 | 40 | 100 | 7.94 | 35 | 44.4 | 12.68 | 0.92 |
| 12042560 | 50 | 50 | 120 | 12.7 | 42 | 54 | 19.03 | 1.25 |
| 12043060 | 50 | 50 | 140 | 12.7 | 50 | 63.5 | 19.03 | 2.15 |
| 12044050 | 60 | 60 | 165 | 12.7 | 60 | 76.2 | 19.03 | 3.6 |
| 12045050 | 75 | 75 | 165 | 12.7 | 60 | 76.2 | 19.03 | 5.5 |
Subject to technical changes
