| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OMATEI |
| Model Number: | 160,200,250 etc |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | HARD JAWS FOR SCROLL CHUCK ONE PIECE JAWS | Material: | 45#Steel |
|---|---|---|---|
| Function: | Clamping | Feature: | High Quality /High Precision |
| Usage: | Refer To The Specification | Service: | ODM/OEM Is Available |
| Highlight: | metal lathe chuck jaws, kitagawa hard jaws |
||

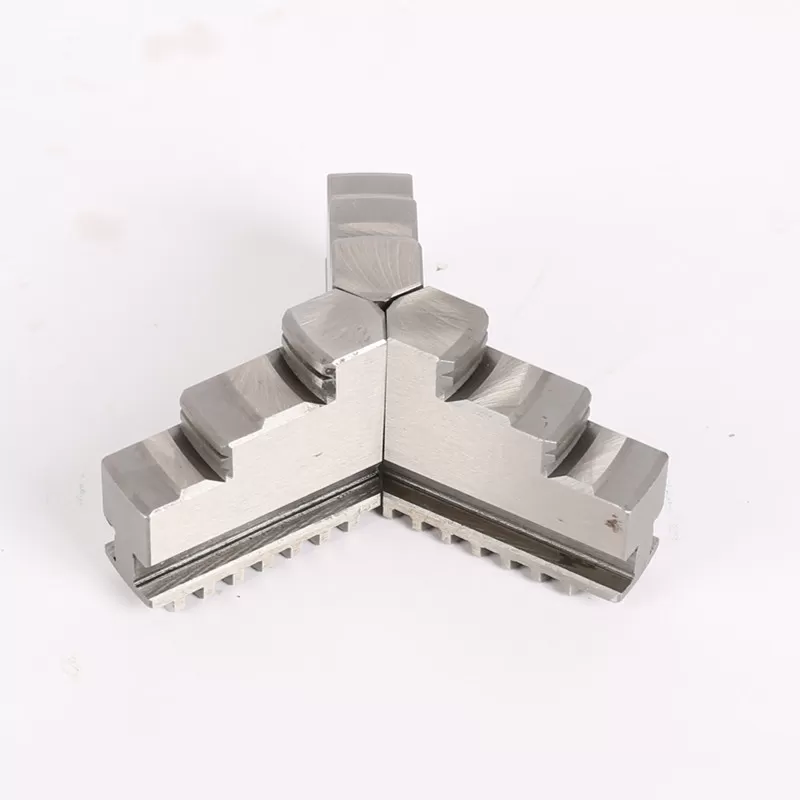

HARD JAWS FOR SCROLL CHUCK ONE PIECE JAWS
Brand:OMATEI
Selection Guidance
1, Chuck brand and model name
2, Workpiece size and the gripping height
Advantage
1, For standard soft jaws, the material is high quality 45# steel, stronger and hardenable.
2, Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
3, Applicable onto the related chuck models of SMW/Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/Autogrip/NTH and so on well-known brand.
4, Customized and non-standard jaws and be designed and OEM.
Description
Hard jaws include one-piece jaws and two-piece jaws for form A,D,C.
All kinds of hard jaws can be provided as the request of customers.

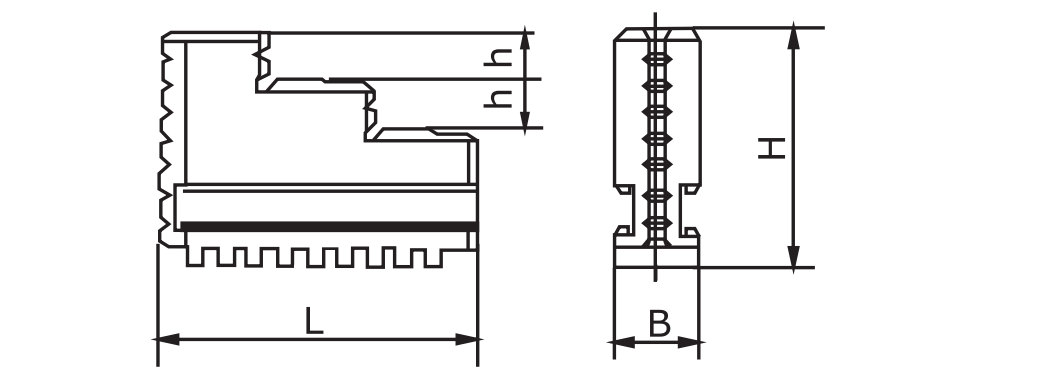

One-Piece Jaws
| Size | 80 | 100 | 125 | 130 | 160 | 165 | 190 | 200 | 240 | 250 | 315 320 325 380 | |
| L | 32 | 42 | 56 | 56 | 70 | 70 | 72 | 85 | 105 | 105 | 130 | |
| B | 12 | 15 | 16 | 16 | 18.5 | 18.5 | 22 | 22 | 27 | 27 | 36 | |
| H | 33 | 38 | 45 | 45 | 54 | 54 | 57 | 61 | 69 | 69 | 91 | |
| h | 6.5 | 7 | 9 | 9 | 12 | 12 | 12 | 12 | 12 | 12 | 18 | |
The chuck with one-piece jaws is provided with each set of internal and external ones.
Subject to technical changes
