| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OMATEI |
| Model Number: | 6″,8″,10″ |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | POM HEAD SOFT JAWS FOR HYDRAULIC CHUCK | Material: | 45#Steel/Plastic/POM/NYLON |
|---|---|---|---|
| Function: | Clamping | Feature: | High Quality /High Precision/Pointed |
| Usage: | Refer To The Specification | Service: | ODM/OEM Is Available |
| Highlight: | aluminum soft jaws, cnc soft jaws |
||

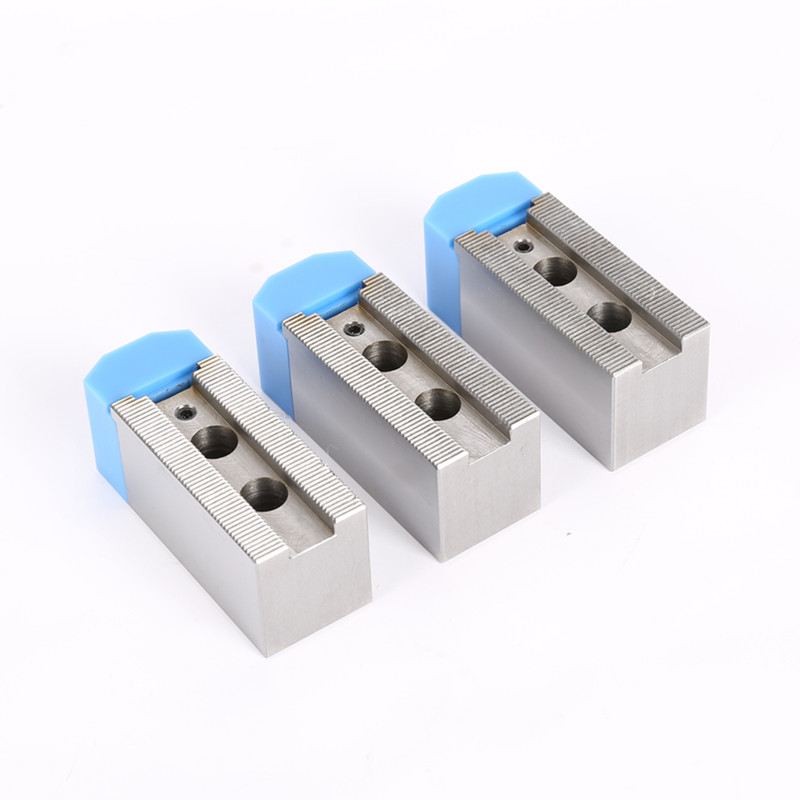

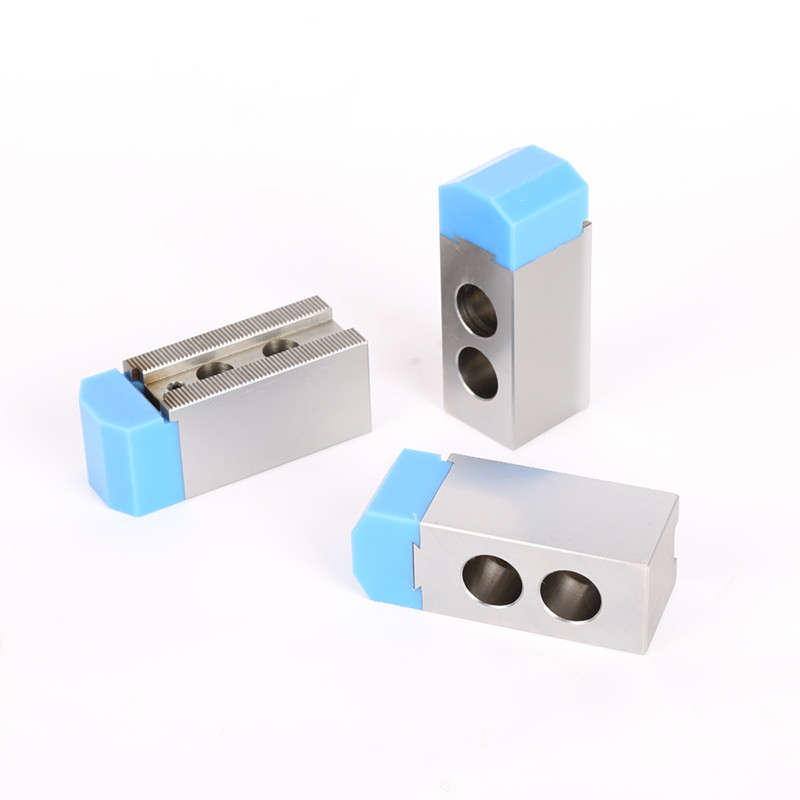

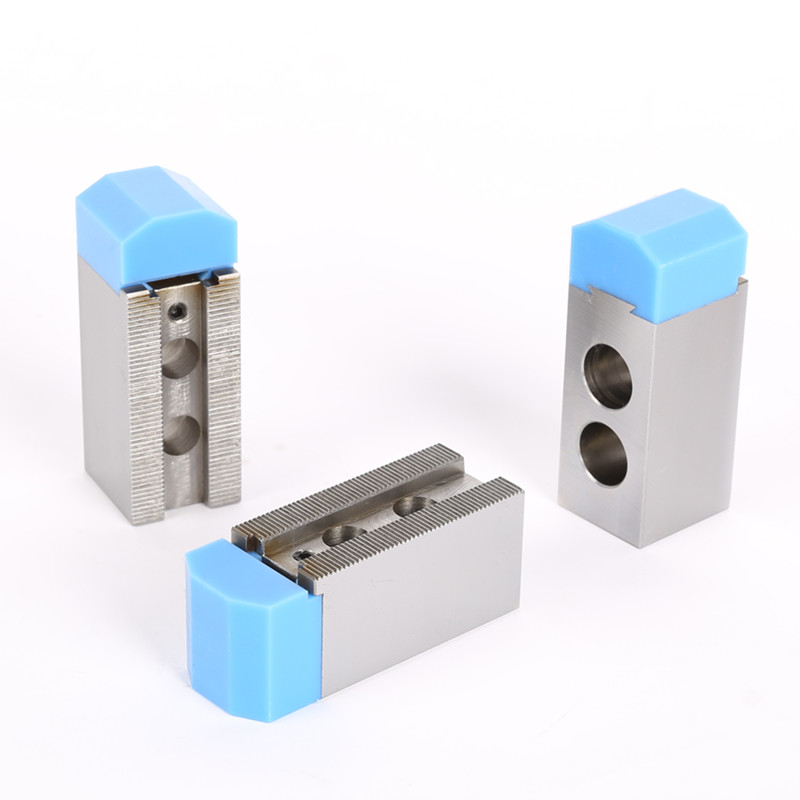

POM HEAD SOFT JAWS FOR HYDRAULIC CHUCK
POM HEAD SOFT JAWS FOR HYDRAULIC CHUCK
Brand:OMATEI
Selection Guidance
1, Chuck model name and brand
2, Workpiece size and the gripping height
Advantage
1, For standard soft jaws, the material is high quality 45# steel, and the head is POM or Nylon 66 material
2, Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
3, Applicable onto the related chuck models of SMW/Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/Autogrip/NTH and so on well-known brand.
4, Customized and non-standard jaws and be designed and OEM.
Description
The POM/MC head is tight fit with steel parts, can´t be changed,it can improve the gripping stability and protect the work piece surface.

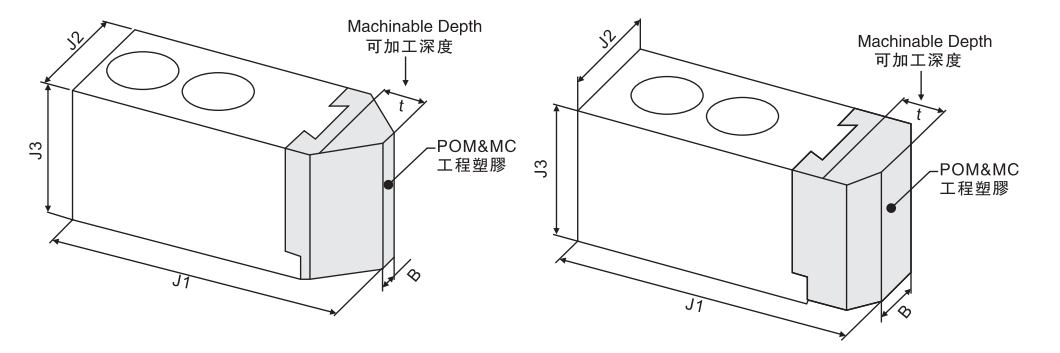

UNIT:mm
| Model | Size(mm) | Angle | Material | |||||
| Specification | J1 | J2 | J3 | B | T | MC/Nylon | POM | |
| POM-06 | 73 | 31 | 36 | 14 | 11 | 120 | V | V |
| POM-06P60/90/120 | 73 | 31 | 36 | 5 | 11 | 90 | V | V |
| POM-08 | 95 | 35 | 38 | 16 | 16 | 120 | V | V |
| POM-08P60/90/120 | 95 | 35 | 38 | 5 | 16 | 90 | V | V |
| POM-10 | 110 | 40 | 42 | 18 | 16 | 120 | V | V |
| POM-10P60/90/120 | 110 | 40 | 42 | 5 | 16 | 90 | V | V |
Remarks:
It´s made for customized order
The available material is MC nylon and POM
Other option of serration pitch: 3.0*60°
Subject to technical changes
