| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OMATEI |
| Model Number: | H063M H064M H3EF |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | SOFT JAWS FOR HOWA CHUCK SERIES 2 | Material: | 45#Steel |
|---|---|---|---|
| Function: | Product Name: SOFT JAWS FOR HOWA CHUCK SERIES 2 Material: 45#Steel Function: Clamping Feature: | Feature: | High Quality /High Precision/For HOWA CHUCK |
| Usage: | Refer To The Specification | Service: | ODM/OEM Is Available |
| Highlight: | machining soft jaws, cnc soft jaws |
||

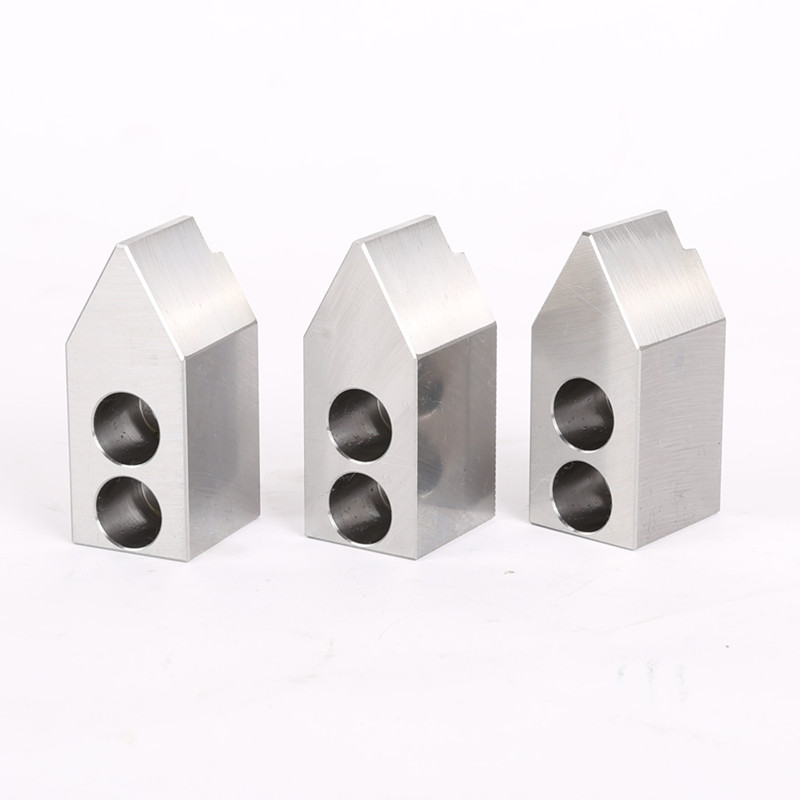

SOFT JAWS FOR HOWA CHUCK SERIES 2
SOFT JAWS FOR HOWA CHUCK SERIES
Brand:OMATEI
Selection Guidance
1, Chuck brand and model name
2, Workpiece size and the gripping height
Advantage
1, For standard soft jaws, the material is high quality 45# steel, stronger and hardenable.
2, Lower abrasion, Fine serration pitch can tight fit with chuck master jaws,
3, Applicable onto the related chuck models of Howa/Samchully/Auto-strong/Tonfou/Chandox/Autogrip/SMW/Kitagawa/Soul/NTH and so on well-known brand.
4, Customized and non-standard jaws and be designed and OEM.

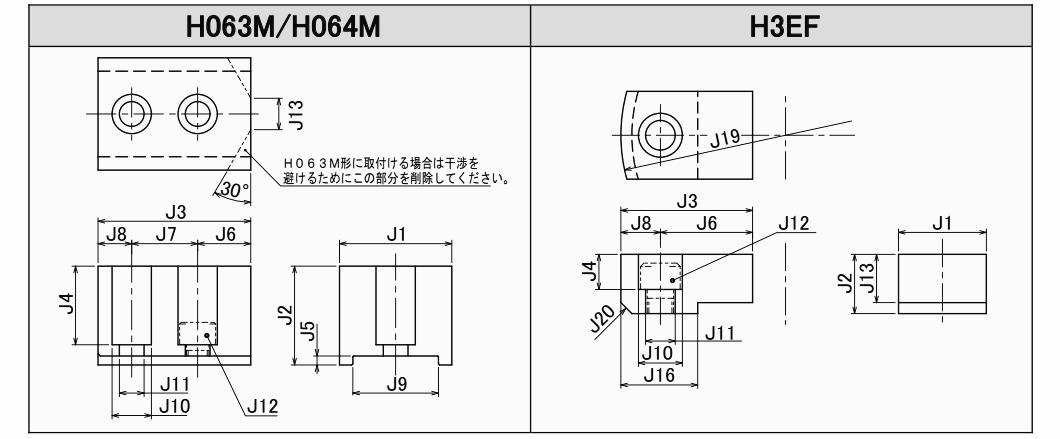

H063M/H064M/H3EF Type
Chuck NO: | Size | J1 | J2 | J3 | J4 | J5 | J6 | J7 | J8 | J9 | J10 | J11 | J12 | J13 | J16 | J19 | J20 | WEIGHT KG |
| H063M H064M | 6 | 50 | 44 | 68 | 35 | 4 | 23.64 | 29.36 | 15 | 38.1 | 17.5 | 11 | M10 | 14 | 1 | |||
| H063M H064M | 8 | 55 | 54 | 83 | 43.5 | 4 | 33.87 | 34.13 | 15 | 44.4 | 20 | 13.5 | M12 | 18 | 1.6 | |||
| H063M H064M | 10 | 70 | 64 | 100 | 52.5 | 4 | 36.55 | 44.45 | 19 | 57.1 | 26 | 17.5 | M16 | 40 | 2.9 | |||
| H063M H064M | 12 | 70 | 64 | 110 | 52.5 | 4 | 46.55 | 44.45 | 19 | 57.1 | 26 | 17.5 | M16 | 70 | 3.2 | |||
| H3EF | 6 | 32 | 22 | 47 | 12 | 32 | 15 | 17.5 | 11 | M10 | 17 | 30 | 118 | C5 | 0.2 | |||
| H3EF | 8 | 40 | 27 | 60 | 16 | 42 | 18 | 20 | 13.5 | M12 | 22 | 35 | 150 | C5 | 0.4 |
Subject to technical changes
