| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OMATEI |
| Model Number: | 6,8,10,12,15,18 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | SOFT JAWS FOR HOWA CHUCK | Material: | 45#Steel |
|---|---|---|---|
| Function: | Clamping | Feature: | High Quality /High Precision /JAPAN Standard |
| Size: | Refer To The Specification | Service: | ODM/OEM Is Available |
| High Light: | aluminum soft jaws,machining soft jaws |
||

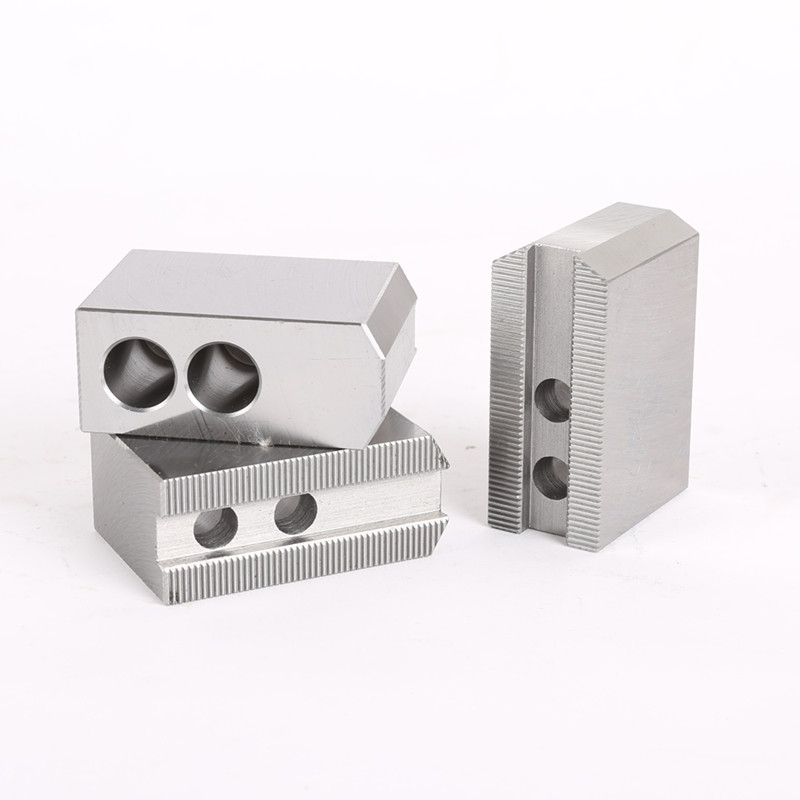

SOFT JAWS FOR HOWA CHUCK
Brand:OMATEI
Selection Guidance
1, Chuck brand and model name
2, Workpiece size and the gripping height
Advantage
1, For standard soft jaws, the material is high quality 45# steel, stronger and hardenable.
2, Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
3, Applicable onto the related chuck models of Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/Autogrip/NTH and so on well-known brand.
4, Customized and non-standard jaws and be designed and OEM.

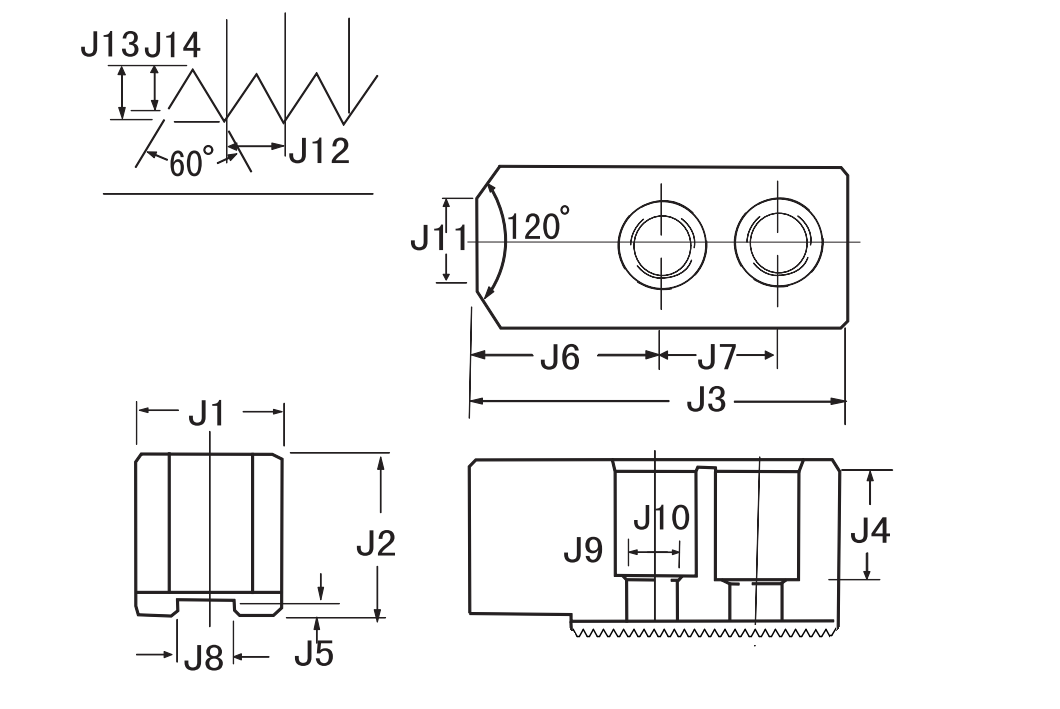

| Size | J1 | J2 | J3 | J4 | J5 | J6 | J7 | J8 | J9 | J10 | J11 | J12 | J13 | J14 | Screw |
| 6 | 30 | 34 | 80 | 26 | 3.5 | 41 | 25 | 11 | 9 | 14 | 10 | 1.5 | 1.3 | 0.15 | M8 |
| 8 | 36 | 40 | 90 | 27 | 3.5 | 45 | 25 | 14 | 13 | 17 | 20 | 1.5 | 1.3 | 0.15 | M12 |
| 10 | 40 | 40 | 110 | 31 | 6 | 50 | 30 | 16 | 13 | 19 | 25 | 1.5 | 1.3 | 0.15 | M12 |
| 12 | 50 | 50 | 130 | 33 | 6 | 60 | 30 | 18 | 15 | 23 | 30 | 1.5 | 1.3 | 0.15 | M14 |
| 15 | 62 | 62 | 150 | 43 | 0.5 | 55 | 50 | 22 | 22 | 32 | - | 3 | 2.6 | 0.5 | M20 |
| 18 | 62 | 62 | 150 | 43 | 8.5 | 55 | 50 | 22 | 22 | 32 | - | 3 | 2.6 | 0.5 | M20 |
Other option of serration pitch: 3.0*60°
Subject to technical changes
