| Product Name: | HARD JAWS AND SOFT JAWS FOR K52 K54 K55 CHUCK | Material: | 45#Steel |
|---|---|---|---|
| Function: | Clamping | Feature: | High Quality /High Precision |
| Usage: | Refer To The Specification | Service: | ODM/OEM Is Available |
| Highlight: | metal lathe chuck jaws, kitagawa hard jaws |
||

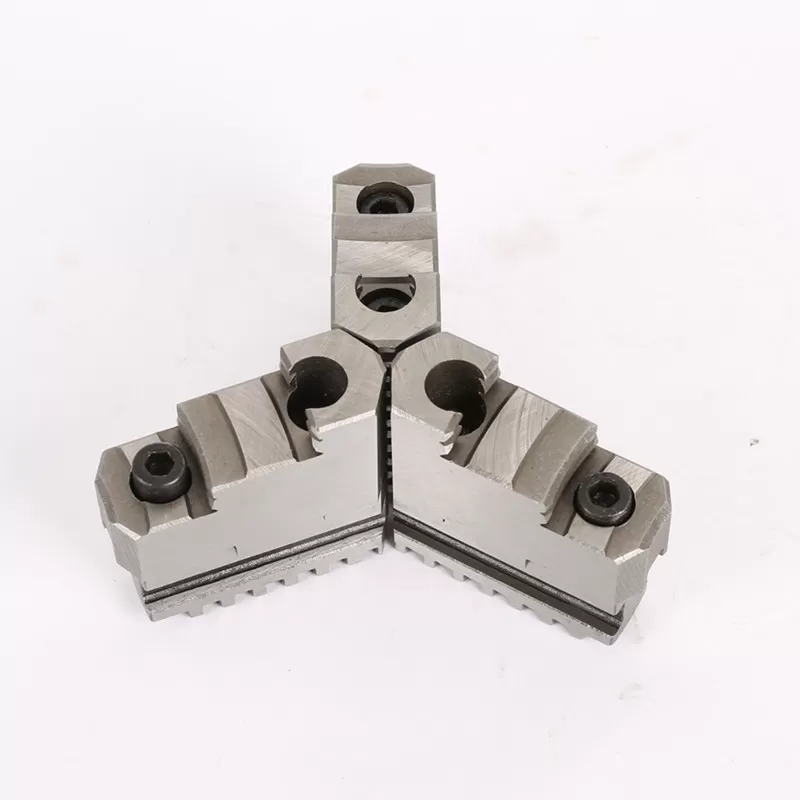

HARD JAWS AND SOFT JAWS FOR K52 K54 K55 CHUCK
Brand:OMATEI
Selection Guidance
1, Chuck brand and model name
2, Workpiece size and the gripping height
Advantage
1, For standard soft jaws, the material is high quality 45# steel, stronger and hardenable.
2, Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
3, Applicable onto the related chuck models of SMW/Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/Autogrip/NTH and so on well-known brand.
4, Customized and non-standard jaws and be designed and OEM.
Description
Form A:Matched with hard top jaws with serrations.
Form B:Matched with soft top jaws with cross tenom.

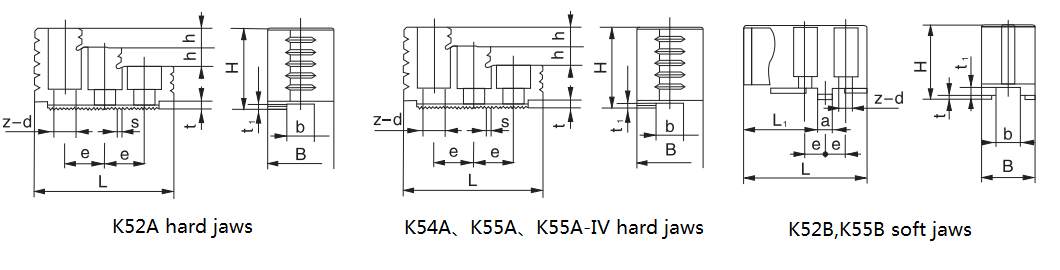

K52A
| Size | L | B | H | b | e | t | t1 | s | h | z-d |
| 160 | 70 | 35 | 42 | 13 | 20 | 4.5 | 4 | 1.5*90゜ | 10 | 3-11 |
| 200 | 82 | 40 | 48 | 16 | 24 | 4.5 | 4 | 1.5*90゜ | 11 | 3-13 |
| 250 | 95 | 45 | 50 | 17 | 28 | 4.5 | 4 | 1.5*90゜ | 12 | 3-13 |
| 315 | 114 | 50 | 62 | 21 | 32 | 4.5 | 4 | 15 | 3-17 | |
| 400 | 148 | 55 | 72 | 22 | 45 | 5.5 | 5 | 18 | 3-17 |
K54A,K55A,K55A-IV
| Size | L | B | H | b | e | t | t1 | s | h | z-d |
| 125 | 56 | 23 | 32 | 11 | 16 | 4 | 3.5 | 1.5*90゜ | 7.5 | 3-9 |
| 160 | 68 | 30 | 42 | 13 | 20 | 4.5 | 4 | 1.5*90゜ | 10 | 3-11 |
| 200 | 84 | 36 | 48 | 16 | 24 | 4.5 | 4 | 1.5*90゜ | 11 | 3-13 |
| 250 | 90 | 40 | 50 | 17 | 28 | 4.5 | 4 | 12 | 3-13 | |
| 315 | 112 | 50 | 62 | 21 | 32 | 4.5 | 4 | 15 | 3-17 |
K52B ,K55B
| Size | L | B | H | a | b | e | t | t1 | L1 | z-d |
| 160 | 74 | 35 | 45 | 12 | 12 | 12.5 | 3 | 4 | 44 | 2-11 |
| 200 | 90 | 40 | 49 | 12 | 15 | 15 | 3 | 4 | 54.5 | 2-13 |
| 250 | 115 | 45 | 53 | 15 | 15 | 20 | 3 | 4 | 70.5 | 2-13 |
| 315 | 145 | 50 | 65 | 15 | 20 | 24 | 3 | 4 | 95 | 2-17 |
| 400 | 180 | 55 | 75 | 20 | 20 | 30 | 3 | 4 | 120 | 2-17 |
