Product Name: | K51 SERIES WEDGE TYPE POWER CHUCK JAWS | Material: | 45#Steel |
---|---|---|---|
Function: | Clamping | Feature: | High Quality /High Precision/Wedge |
Size: | Refer To The Specification | Service: | ODM/OEM Is Available |
High Light: | aluminum soft jaws,machining soft jaws |

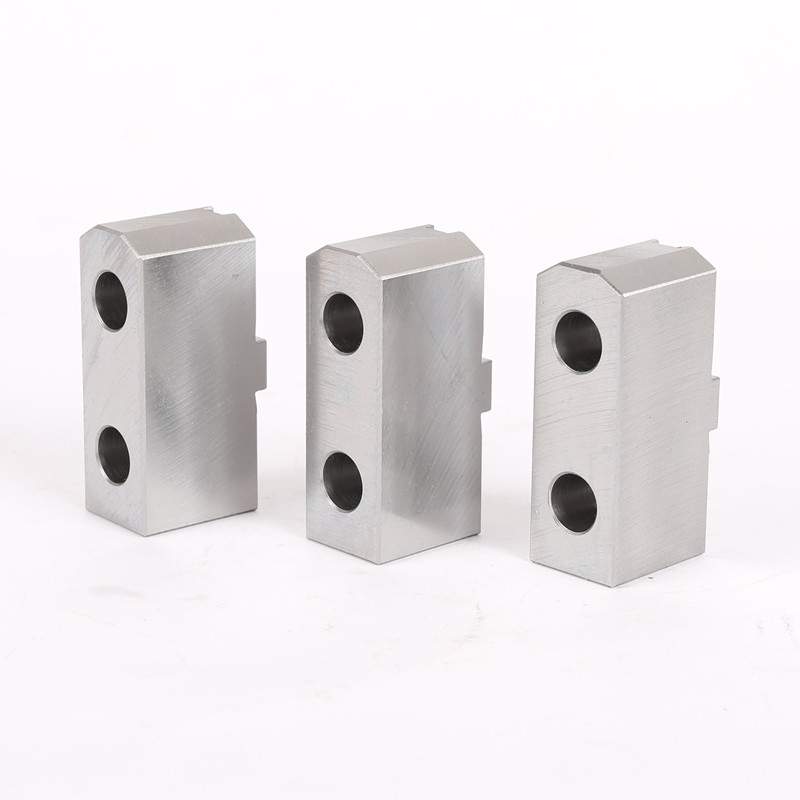

K51 SERIES WEDGE TYPE POWER CHUCK JAWS
Brand:OMATEI
Selection Guidance
1, Chuck brand and model name
2, Workpiece size and the gripping height
Advantage
1, For standard soft jaws, the material is high quality 45# steel, stronger and hardenable.
2, Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
3, Applicable onto the related chuck models of Auto-strong/Tonfou/SMW/Kitagawa/Soul/Howa/Samchully/Chandox/Autogrip/NTH and so on well-known brand.
4, Customized and non-standard jaws and be designed and OEM.
Description
The clamping arc can be turned or ground as the request of the workpieces.
With nice connection rigidity and high clamping accuracy.
Achieving the adjustment of the clamping diameter by jaw-change, especially suitable for machining large-batch components.
Subject to technical change

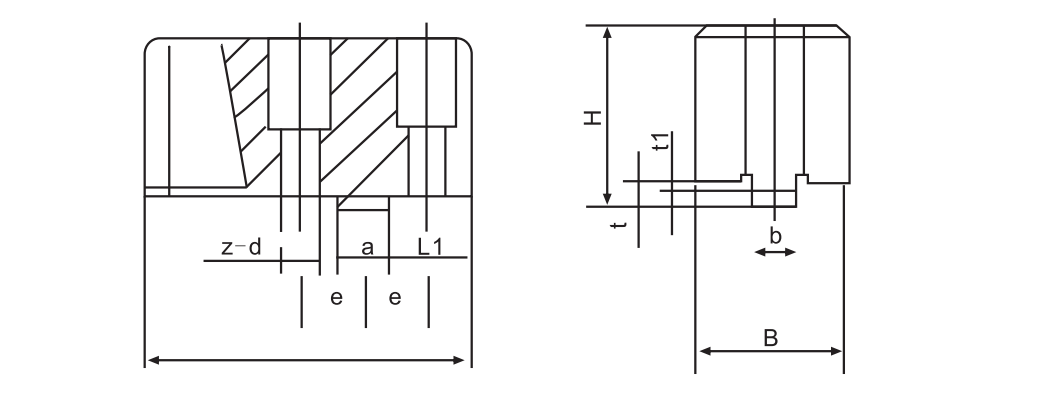

Size | L | L1 | B | H | a | b | e | t | t1 | z-d | Net WT Kg |
K51-160 | 70 | 18 | 35 | 42 | 11 | 11 | 14 | 5 | 1.5 | 2-9 | 11 |
K51-200 | 86 | 20 | 40 | 50 | 13 | 13 | 16 | 6 | 2 | 2-11 | 20 |
K51-250 | 105 | 25 | 45 | 58 | 15 | 15 | 20 | 7 | 2.5 | 2-13 | 31 |
K51-320 | 130 | 28 | 50 | 69 | 18 | 18 | 22.5 | 8 | 3 | 2-15 | 53 |
K51-400 | 160 | 40 | 50 | 80 | 20 | 20 | 30 | 9 | 3.5 | 2-17 | 83 |
K51-500 | 19 | 56 | 55 | 85 | 22 | 22 | 39 | 9 | 3.5 | 2-19 | 134 |
K51-630 | 235 | 76 | 60 | 100 | 24 | 24 | 50 | 10 | 4 | 2-22 |
Subject to technical changes
