| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OMATERI |
| Model Number: | RZ11200C,RZ11240C,RZ11250C |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | SOFT JAWS OF ONE PIECE TYPE AND TWO PIECE TYPE FOR CHINA BRAND SCROLL CHUCK | Material: | 45#Steel |
|---|---|---|---|
| Function: | Clamping | Feature: | High Quality /High Precision/TOP |
| Usage: | Service: | ODM/OEM Is Available | |
| Highlight: | aluminum soft jaws, machining soft jaws |
||
SOFT JAWS OF ONE PIECE TYPE AND TWO PIECE TYPE FOR CHINA BRAND SCROLL CHUCK
SOFT JAWS OF ONE PIECE TYPE AND TWO PIECE TYPE FOR CHINA BRAND SCROLL CHUCK
Brand:OMATEI
Selection Guidance
1, Chuck brand and model name
2, Workpiece size and the gripping height
Advantage
1, Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
2, Customized and non-standard jaws and be designed and OEM.
3, Applicable onto the related chuck models of SMW/Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/Autogrip/NTH and so on well-known brand.
4, For standard soft jaws, the material is high quality 45# steel, stronger and hardenable.
Description
All kinds of soft jaws can be provided as the request of customers for K11,K10,K12 series chucks.
Soft jaws include one-piece soft jaws and two-piece soft jaws(form C,A).

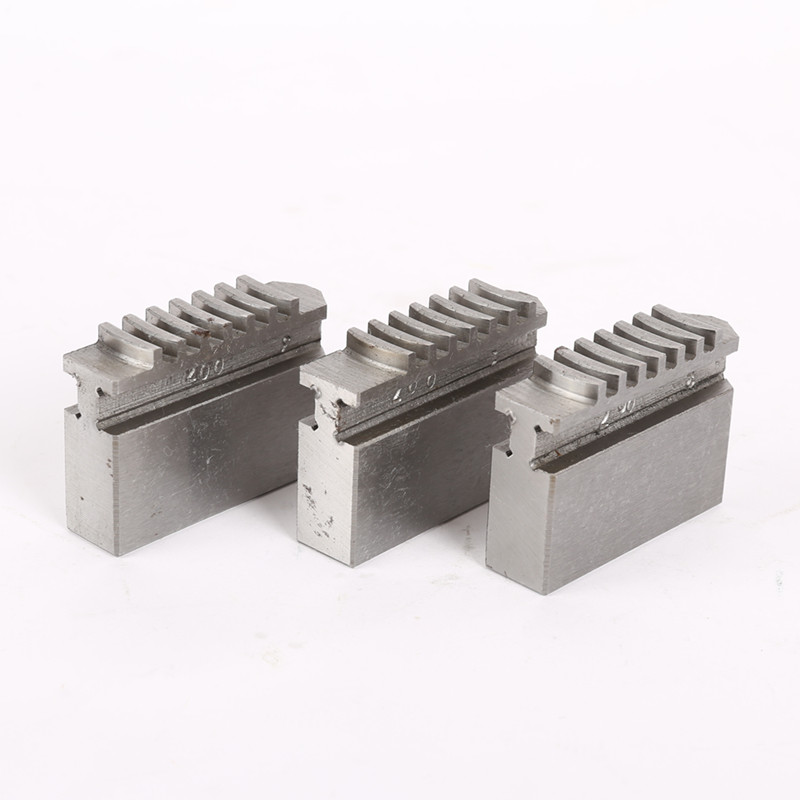

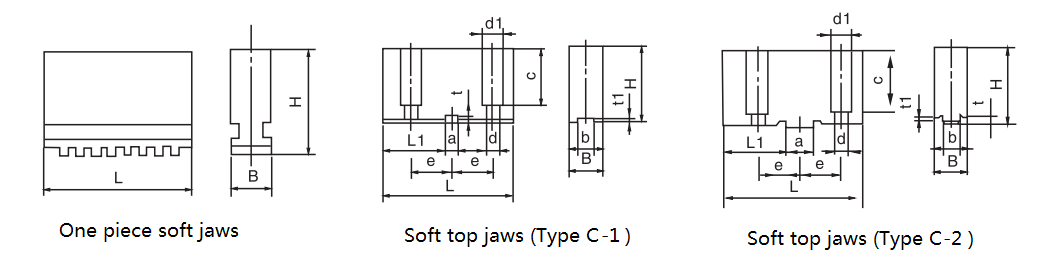

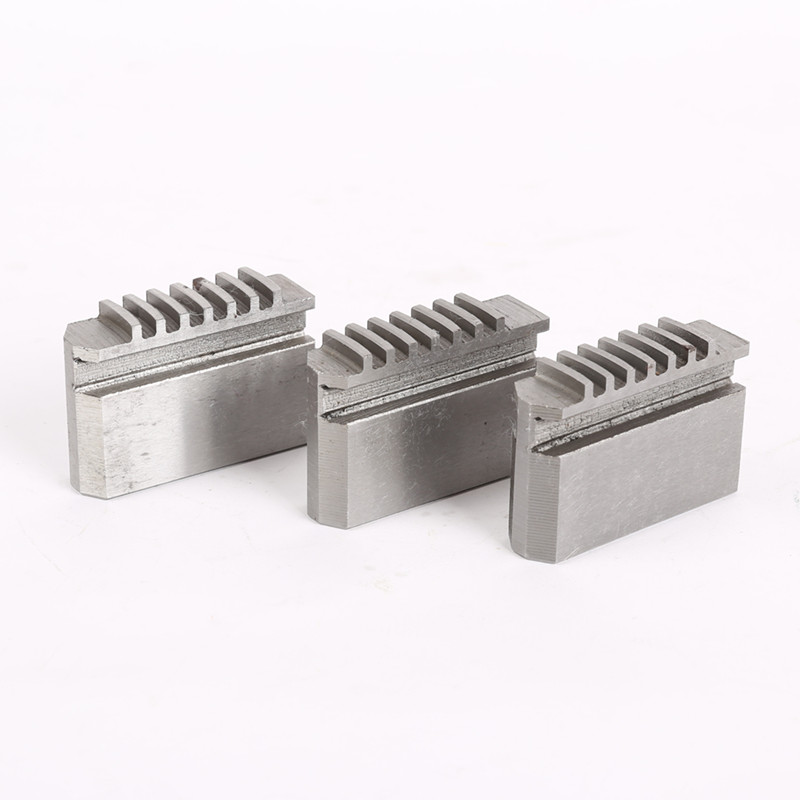

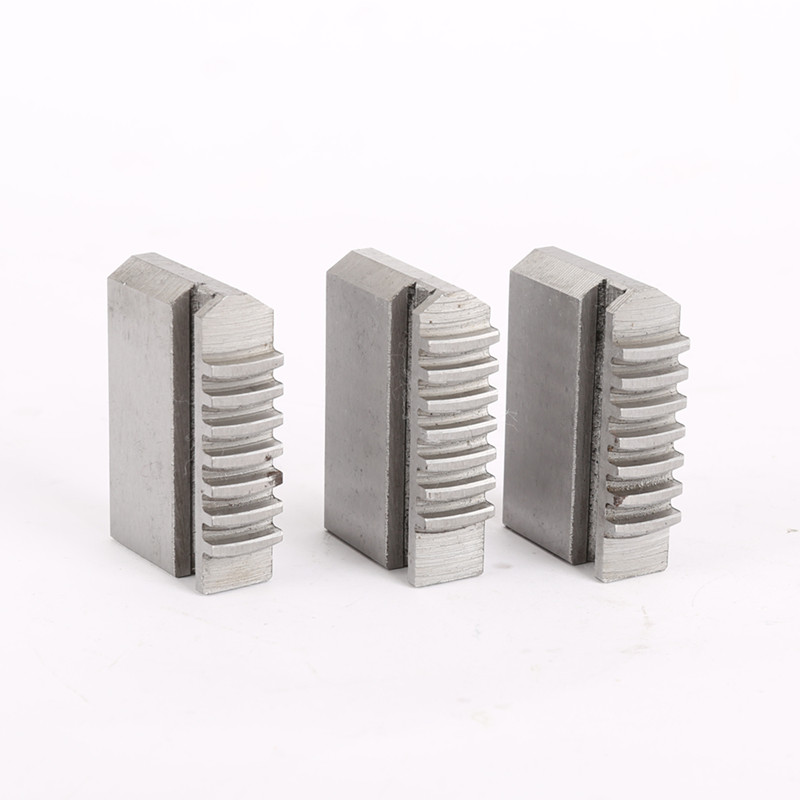

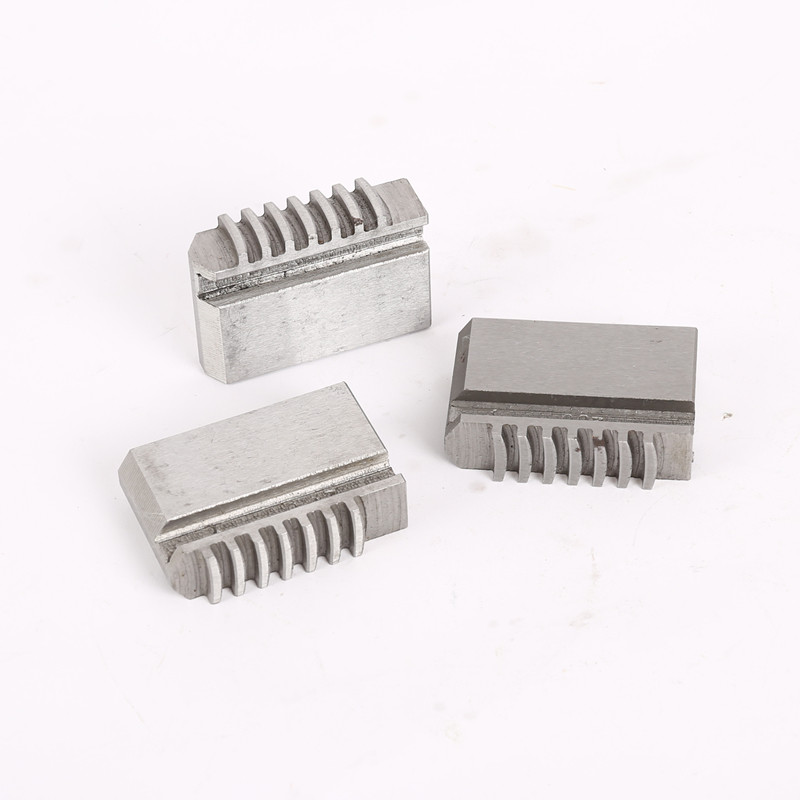

One-piece soft jaws
| Model | RZ1180 | RZ11100 | RZ11125 | RZ11130 | RZ11160 | RZ11165 | RZ11190 | RZ11200 | RZ11240 | RZ11250 | RZ11315 | RZ11325 |
| RZ11320 | RZ11380 | |||||||||||
| L | 32 | 42 | 56 | 56 | 70 | 70 | 72 | 85 | 105 | 105 | 130 | 130 |
| B | 12 | 15 | 16 | 16 | 18.5 | 18.5 | 22 | 22 | 27 | 27 | 36 | 36 |
| H | 32 | 38 | 45 | 45 | 54 | 54 | 57 | 61 | 69 | 69 | 91 | 91 |
Soft top jaws(Type C-1)
| Model | L | L1 | B | H | a | b | e | t | t1 | c | d | d1 |
| RZ11200C | 93 | 46 | 25 | 50 | 13 | 11 | 28 | 7 | 3 | 39 | 9 | 15 |
| RZ11240C | 113 | 58 | 27 | 58 | 13 | 13 | 35 | 7 | 3 | 48 | 11 | 17 |
| RZ11250C | 113 | 58 | 27 | 58 | 13 | 13 | 35 | 7 | 3 | 48 | 11 | 17 |
Soft top jaws(Type C-2)
| Model | L | L1 | B | H | a | b | e | t | t1 | c | d | d1 |
| RZ11320C | 137 | 64 | 36 | 75 | 28 | 15 | 44 | 7.5 | 2.8 | 60.5 | 13 | 20 |
| RZ11325C | 137 | 64 | 36 | 75 | 28 | 15 | 44 | 7.5 | 2.8 | 60.5 | 13 | 20 |
| RZ11380C | 137 | 64 | 36 | 75 | 28 | 15 | 44 | 7.5 | 2.8 | 60.5 | 13 | 20 |
Subject to technical changes
