| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OMATEI |
| Model Number: | CH-125,CH-160,CH-200 etc. |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | SOFT JAWS FOR K52 CHUCK | Material: | 45#Steel/Plastic/Brass |
|---|---|---|---|
| Function: | Clamping | Feature: | High Quality /High Precision |
| Usage: | Refer To The Specification | Service: | ODM/OEM Is Available |
| Highlight: | aluminum soft jaws, cnc soft jaws |
||

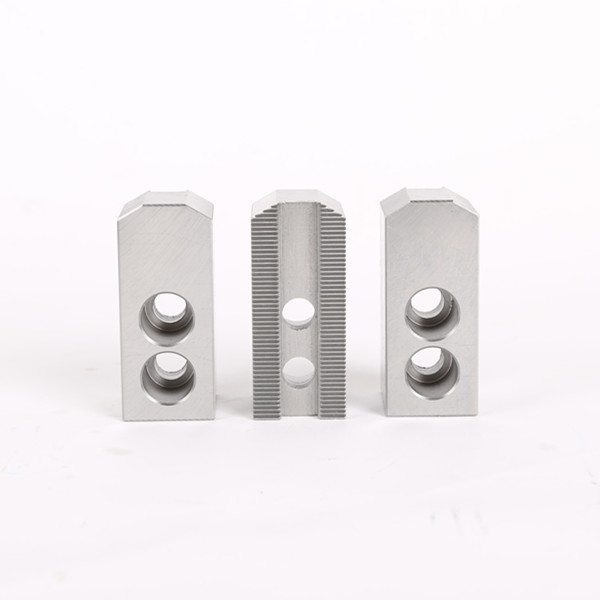

SOFT JAWS FOR K52 CHUCK
SOFT JAWS FOR K52 CHUCK
Brand:OMATEI
Selection Guidance
1, Workpiece size and the gripping height
2, Chuck brand and model name
Advantage
1, For standard soft jaws, the material is high quality 45# steel, stronger and hardenable.
2, Customized and non-standard jaws and be designed and OEM.
3, Applicable onto the related chuck models of SMW/Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/Autogrip/NTH and so on well-known brand.
4, Fine serration pitch can tight fit with chuck master jaws, lower abrasion.

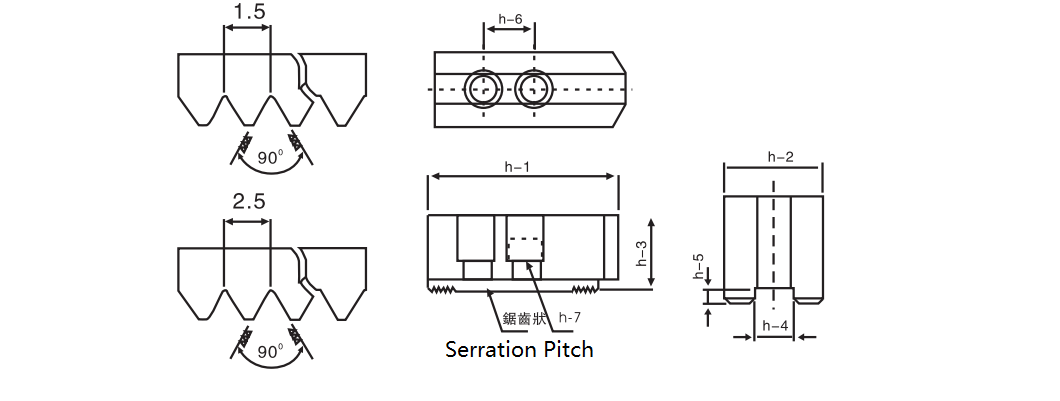

MODELS DIMENSION | Length h-1 | Width h-2 | Height h-3 | Slot width h-4 | Slot depth h-5 | Hole center distance h-6 | Screw h-7 | Serration pitch |
|---|---|---|---|---|---|---|---|---|
| CH-125 | 56 | 25 | 32 | 11 | 3.5 | 16 | M8 | 1.5° |
| CH-160 | 70 | 35 | 42 | 13 | 4 | 20 | M10 | 1.5° |
| CH-200 | 82 | 40 | 46 | 16 | 4 | 24 | M12 | 1.5° |
| CH-250 | 95 | 45 | 50 | 17 | 4 | 28 | M12 | 1.5° |
| CH-315 | 118 | 50 | 62 | 21 | 4 | 32 | M16 | 2.5° |
| CH-400 | 148 | 55 | 72 | 22 | 5 | 45 | M16 | 2.5° |
Other option of serration pitch: 3.0*60°
Subject to technical changes
