| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OMATEI |
| Model Number: | 200,320,400 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | SOFT JAWS FOR KL51CT CHUCK | Material: | 45#Steel/Plastic/Brass |
|---|---|---|---|
| Function: | Clamping | Feature: | High Quality /High Precision |
| Usage: | Refer To The Specification | Service: | ODM/OEM Is Available |
| Highlight: | aluminum soft jaws, machining soft jaws |
||

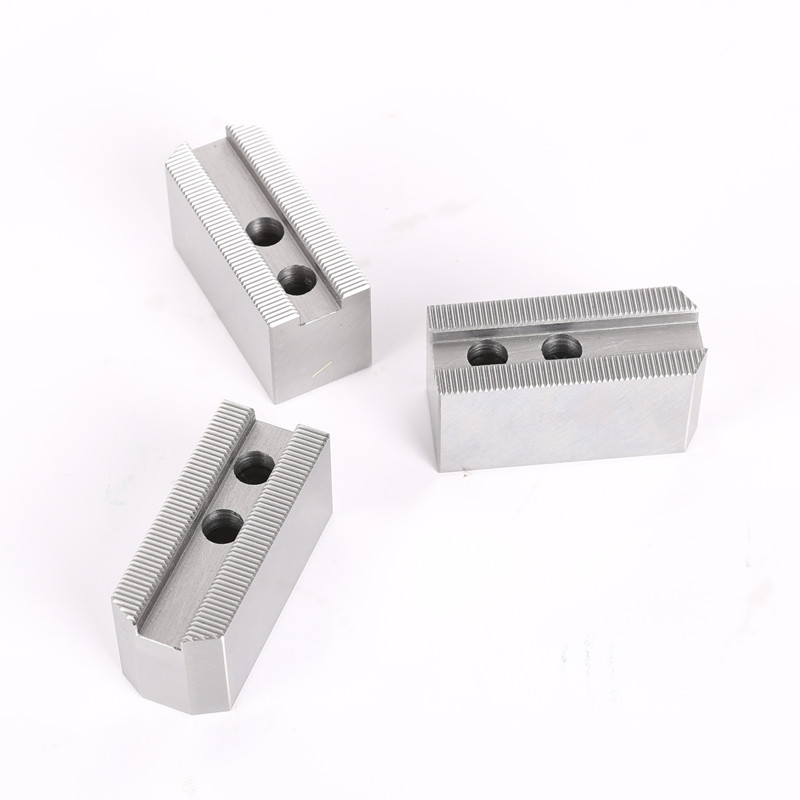

SOFT JAWS FOR KL51CT CHUCK
SOFT JAWS FOR KL51CT CHUCK
Brand:OMATEI
Selection Guidance
1, Chuck brand and model name
2, Workpiece size and the gripping height
Advantage
1, For standard soft jaws, the material is high quality 45# steel, stronger and hardenable.
2, Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
3, Applicable onto the related chuck models of Autogrip/Kitagawa/SMW/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/NTH and so on well-known brand.
4, Customized and non-standard jaws and be designed and OEM.

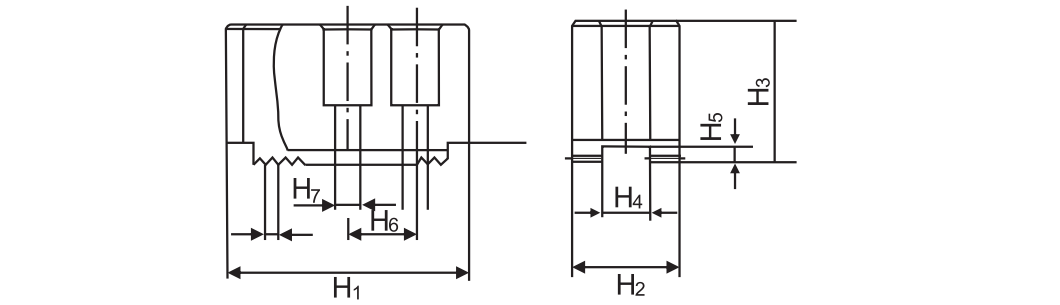

size | H1 | H2 | H3 | H4 | H5 | Serration pitch | H6 | H7 |
|---|---|---|---|---|---|---|---|---|
| KL51CT-200 | 85 | 40 | 45 | 16 | 4 | 1/16″x90° | 24 | 2-13 |
| KL51CT-320 | 118 | 50 | 62 | 21 | 4 | 3/32″x90° | 32 | 2-17 |
| KL51CT-400 | 140 | 50 | 75 | 22 | 5.5 | 3/32″x90° | 45 | 2-17 |
| KL51CT-500 | 160 | 75 | 75 | 26 | 5.5 | 3/32″x90° | 38 | 2-22 |
| KL51CT-630 | 160 | 75 | 75 | 26 | 5.5 | 3/32″x90° | 38 | 2-22 |
| KL51CT-800 | 160 | 75 | 75 | 26 | 5.5 | 3/32″x90° | 38 | 2-22 |
| KL51CT-1000 | 200 | 85 | 110 | 30 | 9 | 100 | 2-26 | |
| KL51CT-1250 | 200 | 85 | 110 | 30 | 9 | 100 | 2-26 |
Other option of serration pitch: 3.0*60°
Subject to technical changes
