| Product Name: | SOFT JAWS FOR K51 CHUCK | Material: | 45#Steel/Plastic/Brass |
|---|---|---|---|
| Function: | Clamping | Feature: | High Quality /High Precision |
| Usage: | Refer To The Specification | Service: | ODM/OEM Is Available |
| Highlight: | aluminum soft jaws, cnc soft jaws |
||

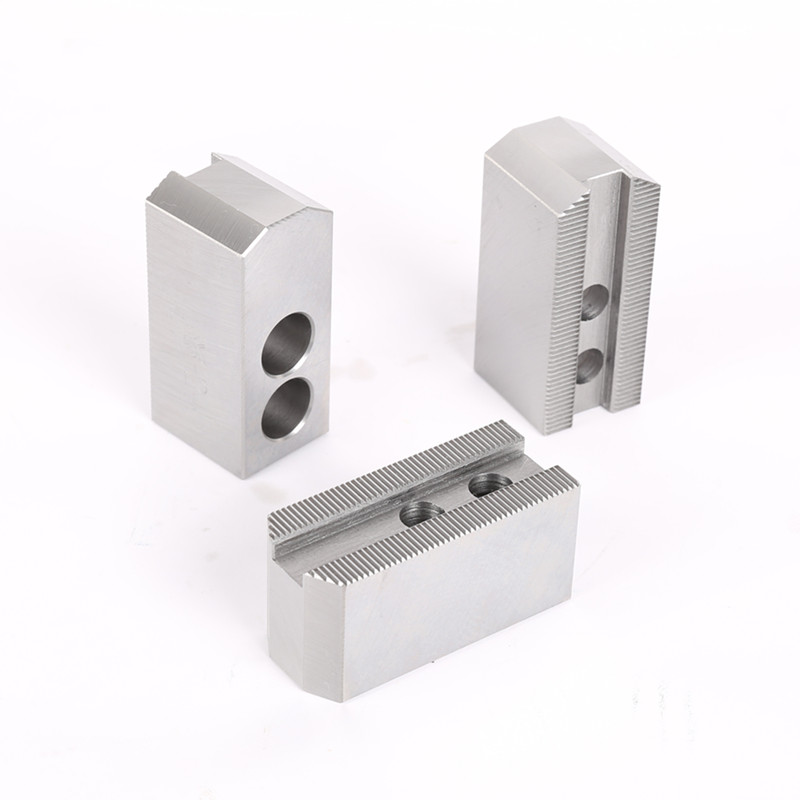

SOFT JAWS FOR K51 CHUCK
SOFT JAWS FOR K51 CHUCK
Brand:OMATEI
Selection Guidance
1, Chuck brand and model name
2, Workpiece size and the gripping height
Advantage
1, Customized and non-standard jaws and be designed and OEM.
2, Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
3, Applicable onto the related chuck models of SMW/Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/Autogrip/NTH and so on well-known brand.
4, For standard soft jaws, the material is high quality 45# steel, stronger and hardenable.

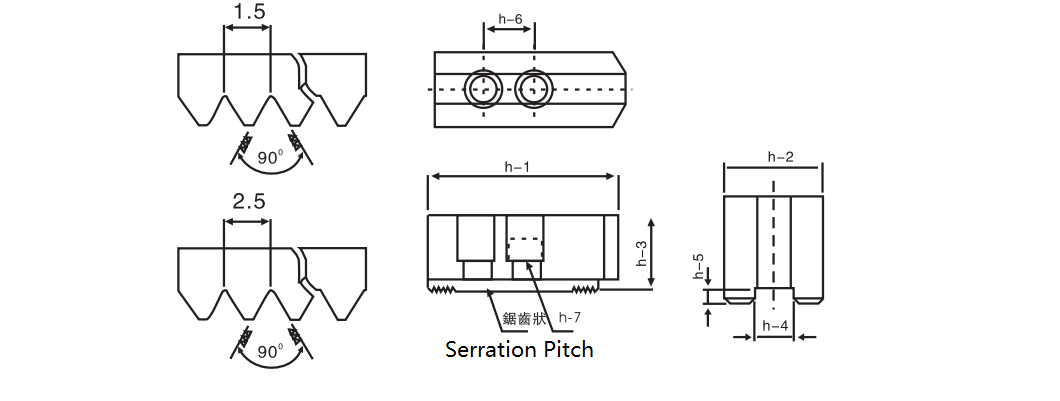

| SPEC/SIZE | Length h-1 | Width h-2 | Height h-3 | Slot width h-4 | Slot depth h-5 | Span h-6 | Screw h-7 | Serration pitch |
| CH-06(160) | 62 | 35 | 38 | 11 | 4.5 | 20 | M8 | 1.5×90° |
| CH-08(200) | 80 | 40 | 45 | 13 | 4.5 | 24 | M10 | 1.5×90° |
| CH-10(250) | 100 | 45 | 52 | 15 | 4.5 | 28 | M 12 | 1.5×90° |
| CH-12(320) | 115 | 50 | 62 | 18 | 4.5 | 32 | M 14 | 2.5×90° |
| CH-15(400) | 140 | 50 | 75 | 20 | 6 | 45 | M 16 | 2.5×90° |
| CH-20(500) | 160 | 55 | 85 | 22 | 6 | 50 | M 18 | 2.5×90° |
| CH-24(630) | 190 | 60 | 100 | 26 | 6 | 55 | M 21 | 2.5×90° |
Other option of serration pitch: 3.0*60°
Subject to technical changes
