| Place of Origin: | SC15 EXTRA HEIGHT SOFT JAWS FOR HYDRAULIC POWER CHUCKS |
|---|---|
| Brand Name: | OMATEI |
| Model Number: | SC15H80,SC15H90 etc. |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for the sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | SC15 EXTRA HEIGHT SOFT JAWS FOR HYDRAULIC POWER CHUCKS | Material: | 45#Steel/Plastic/Brass |
|---|---|---|---|
| Function: | Clamping | Feature: | High Quality /High Precision |
| Usage: | Refer To The Specification | Service: | ODM/OEM Is Available |
| Highlight: | machining soft jaws, cnc soft jaws |
||

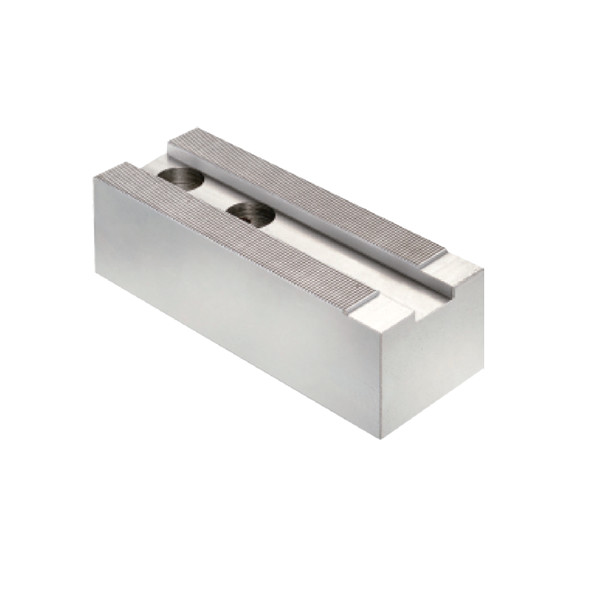

SC15 EXTRA HEIGHT SOFT JAWS FOR HYDRAULIC POWER CHUCKS
SC15 EXTRA HEIGHT SOFT JAWS FOR HYDRAULIC POWER CHUCKS
Brand:OMATEI
Selection Guidance
1, Chuck brand and model name
2, Workpiece size and the gripping height
Advantages
1, For standard soft jaws, the material is high quality 45# steel, stronger and hardenable.
2, Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
3, Applicable onto the related chuck models of NTH/Kitagawa/Soul/Howa/Samchully/SMW/Auto-strong/Tonfou/Chandox/Autogrip and so on well-known brand.
4, Customized and non-standard jaws and be designed and OEM.

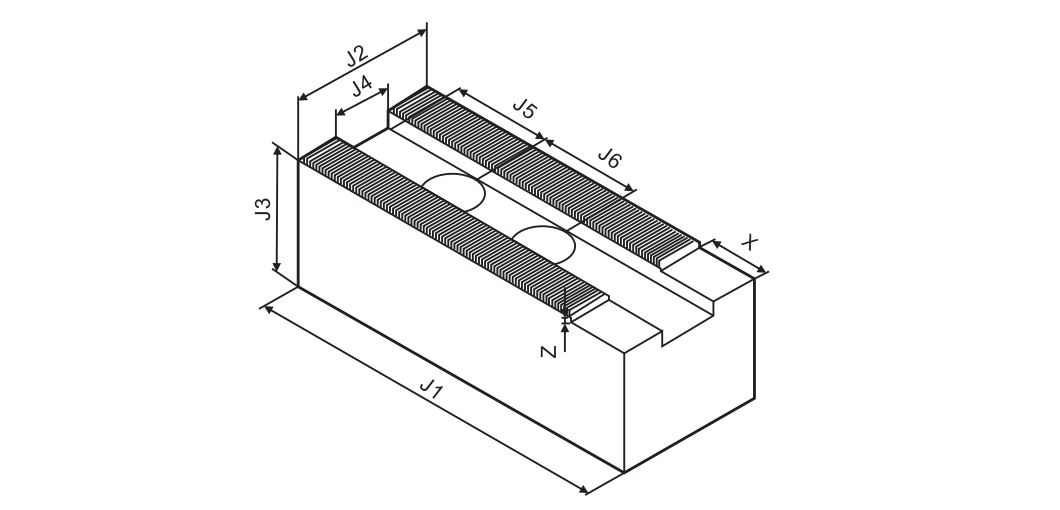

Serration Pitch:1.5×60° UNIT:mm
| Model | J1 | J2 | J3 | J4 | J5 | J6 | X | Z | Screw | Weight kg/set |
| SC15H80 | 165 | 62 | 80 | 22(22.5) | 37 | 43 | 25 | 2 | M20 | 16.1 |
| SC15H90 | 165 | 62 | 90 | 22(22.5) | 37 | 43 | 25 | 2 | M20 | 18.2 |
| SC15H100 | 165 | 62 | 100 | 22(22.5) | 37 | 43 | 25 | 2 | M20 | 20 |
| SC15H110 | 165 | 62 | 110 | 22(22.5) | 37 | 43 | 25 | 2 | M20 | 22.3 |
| SC15H120 | 165 | 62 | 120 | 22(22.5) | 37 | 43 | 25 | 2 | M20 | 25 |
| SC15H130 | 165 | 62 | 130 | 22(22.5) | 37 | 43 | 25 | 2 | M20 | 26.8 |
| SC15H140 | 165 | 62 | 140 | 22(22.5) | 37 | 43 | 25 | 2 | M20 | 28.5 |
| SC15H150 | 165 | 62 | 150 | 22(22.5) | 37 | 43 | 25 | 2 | M20 | 30 |
Customized spec can be made.
