| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OMATEI |
| Model Number: | SC12H50P60/90/120,SC12H60P60/90/120 etc. |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for the sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | SC12 POINTED SOFT JAWS | Material: | 45#Steel/Plastic/Brass |
|---|---|---|---|
| Function: | Clamping | Feature: | High Quality /High Precision |
| Usage: | Refer To The Specification | Service: | ODM/OEM Is Available |
| Highlight: | aluminum soft jaws, cnc soft jaws |
||

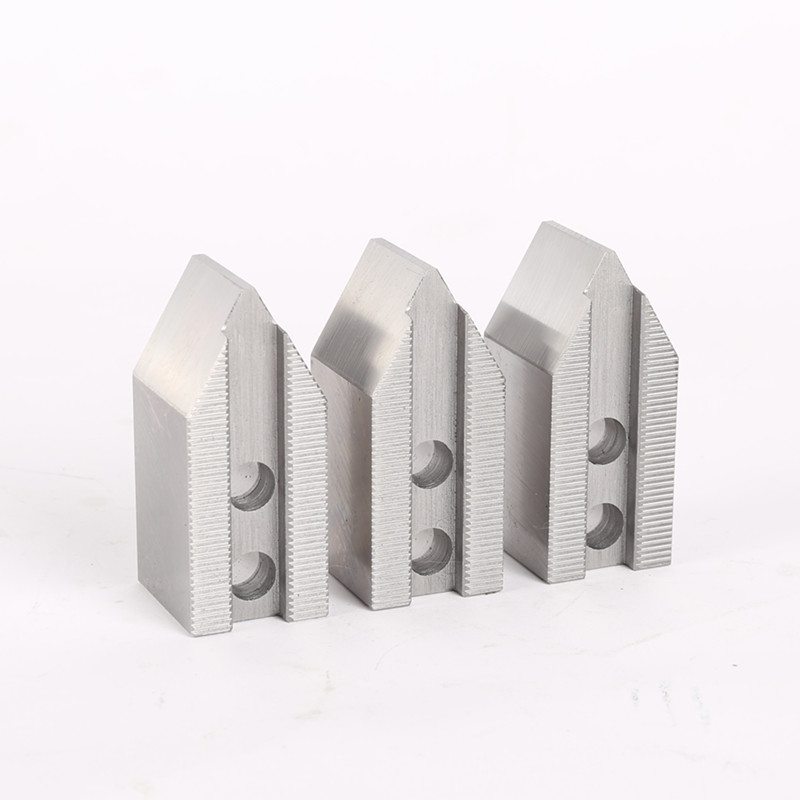

SC12 POINTED SOFT JAWS
SC12 POINTED SOFT JAWS
Brand:OMATEI
Selection Guidance
1, Chuck brand and model name
2, Workpiece size and the gripping height
Advantage
1, For standard soft jaws, the material is high quality 45# steel, stronger and hardenable.
2, Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
3, Applicable onto the related chuck models of Tonfou/Chandox/Autogrip/SMW/Kitagawa/Soul/Howa/Samchully/Auto-strong/NTH and so on well-known brand.
4, Customized and non-standard jaws and be designed and OEM.

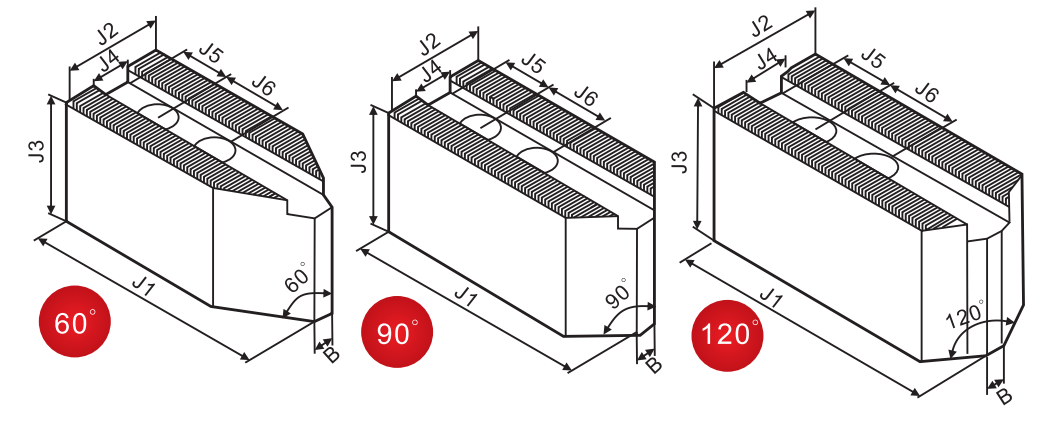

Serration Pitch:1.5×60° UNIT:mm
| Model | J1 | J2 | J3 | J4 | J5 | J6 | B | Screw | Weight Kg/set |
| SC12H50P60/90/120 | 129 | 50 | 50 | 21/18 | 25 | 30 | 6 | M14 | 6.3 |
| SC12H60P60/90/120 | 129 | 50 | 60 | 21/18 | 25 | 30 | 6 | M14 | 7.5 |
| SC12H70P60/90/120 | 129 | 50 | 70 | 21/18 | 25 | 30 | 6 | M14 | 8.8 |
| SC12H80P60/90/120 | 129 | 50 | 80 | 21/18 | 25 | 30 | 6 | M14 | 10.1 |
| SC12H90P60/90/120 | 129 | 50 | 90 | 21/18 | 25 | 30 | 6 | M14 | 11.5 |
Option for pointed soft jaws:60/90/120 angle degree or other special requirements;Customized spec can be made.
Subject to technical changes
