| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OMATEI |
| Model Number: | SC10H42P,SC10H50P |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for the sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | SC10 10 INCH POINTED SOFT JAWS FOR HYDRAULIC POWER CHUCK | Material: | 45#Steel/Plastic/Brass |
|---|---|---|---|
| Function: | Clamping | Feature: | High Quality /High Precision |
| Usage: | Refer To The Specification | Service: | ODM/OEM Is Available |
| Highlight: | aluminum soft jaws, cnc soft jaws |
||

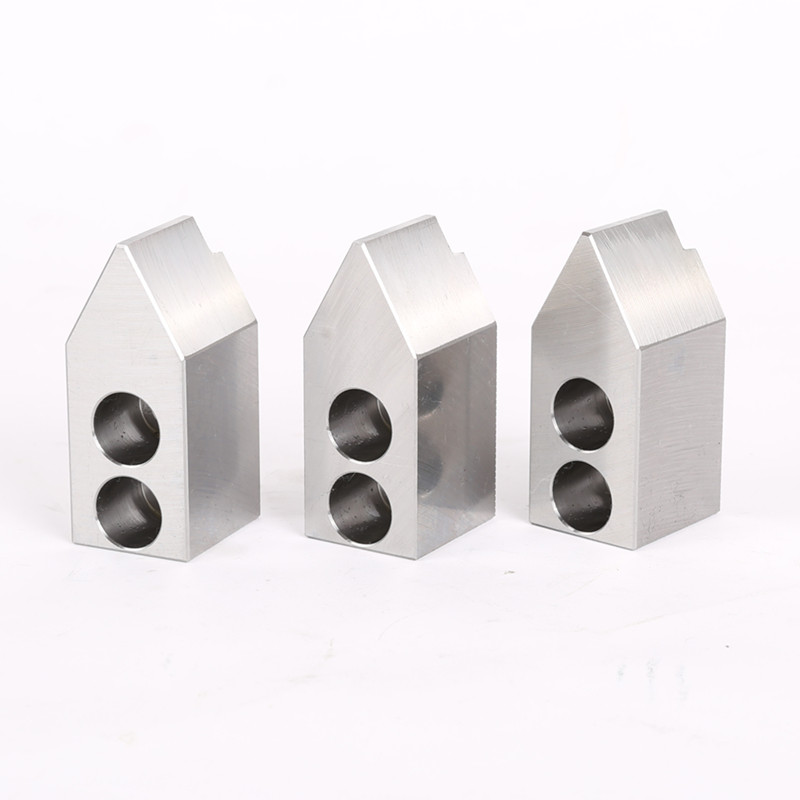

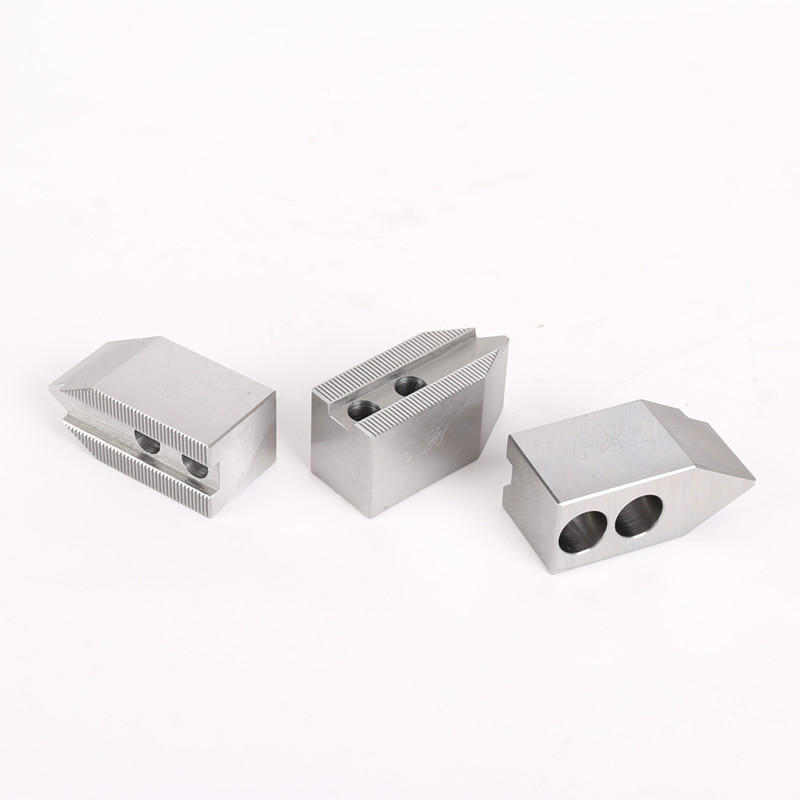

SC10 10 INCH POINTED SOFT JAWS FOR HYDRAULIC POWER CHUCK
SC10 10 INCH POINTED SOFT JAWS FOR HYDRAULIC POWER CHUCK
Brand:OMATEI
Selection Guidance
1, Chuck model name and brand
2, Workpiece size and the gripping height
Advantage
1, For standard soft jaws, the material is high quality 45# steel, stronger and hardenable.
2, Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
3, Applicable onto the related chuck models of SMW/Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/Autogrip/NTH and so on well-known brand.
4, Customized and non-standard jaws and be designed and OEM.

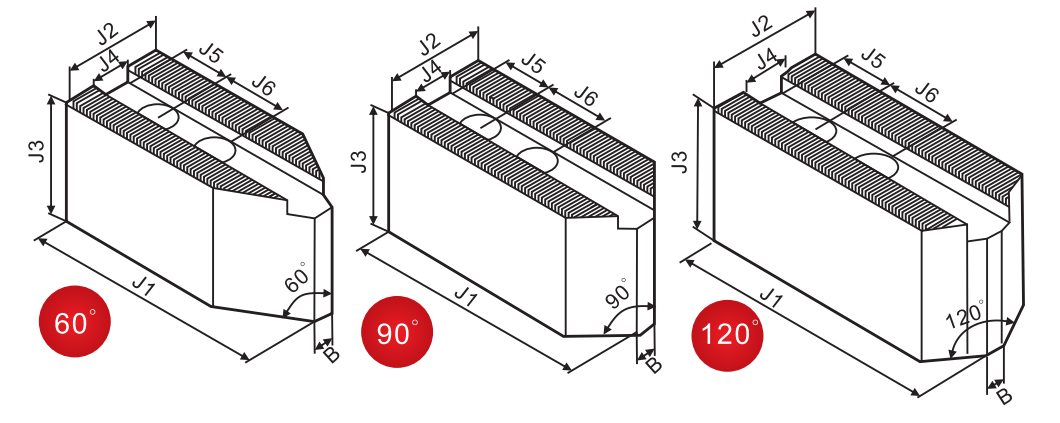

Serration Pitch:1.5×60° UNIT:mm
| Model | J1 | J2 | J3 | J4 | J5 | J6 | B | Screw | Weight kg/set |
| SC10H42P60/90/120 | 110 | 40 | 42 | 16 | 20 | 30 | 3 | M12 | 3.7 |
| SC10H50P60/90/120 | 110 | 40 | 50 | 16 | 20 | 30 | 3 | M12 | 4.2 |
| SC10H60P60/90/120 | 110 | 40 | 60 | 16 | 20 | 30 | 3 | M12 | 5.1 |
| SC10H70P60/90/120 | 110 | 40 | 70 | 16 | 20 | 30 | 3 | M12 | 6.1 |
| SC10H80P60/90/120 | 110 | 40 | 80 | 16 | 20 | 30 | 3 | M12 | 6.9 |
| SC10H90P60/90/120 | 110 | 40 | 90 | 16 | 20 | 30 | 3 | M12 | 7.7 |
| SC10H100P60/90/120 | 110 | 40 | 100 | 16 | 20 | 30 | 3 | M12 | 8.5 |
Other option of serration pitch: 3.0*60°
Subject to technical changes
