| Product Name: | HIGH QUALITY SOFT JAWS FOR HYDRAULIC CHUCKS , CHUCK JAWS OEM ODM MANUFACTURER | Material: | 45#Steel/Aluminum/Plastic/Brass |
|---|---|---|---|
| Function: | Clamping | Feature: | High Quality /High Precision |
| Usage: | Acceories For Chucks | Service: | Refer To The Specification |
| Highlight: | aluminum soft jaws, machining soft jaws |
||
HIGH QUALITY SOFT JAWS FOR HYDRAULIC CHUCKS , CHUCK JAWS OEM ODM MANUFACTURER

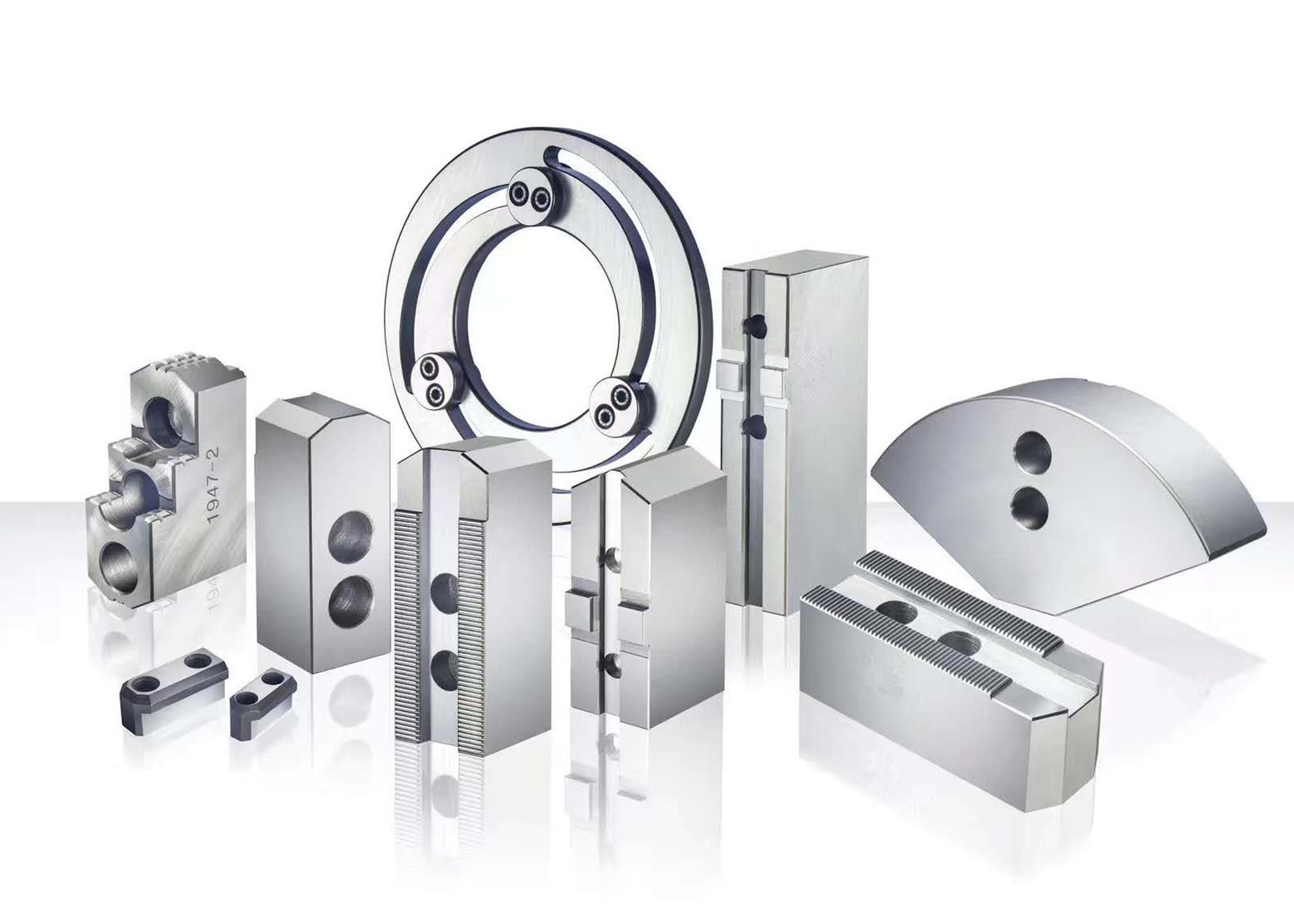

SOFT JAWS FOR HYDRAULIC CHUCKS
Brand:OMATEI
Selection Guidance
1, Please advise Power Chuck brand and model name, we can help choose suitable soft jaws spec.
2, Please advise Workpiece size and the gripping height, we can suggest and design soft jaws spec.
3, Please advise your machining process, we can suggest soft jaws and clamping solution.

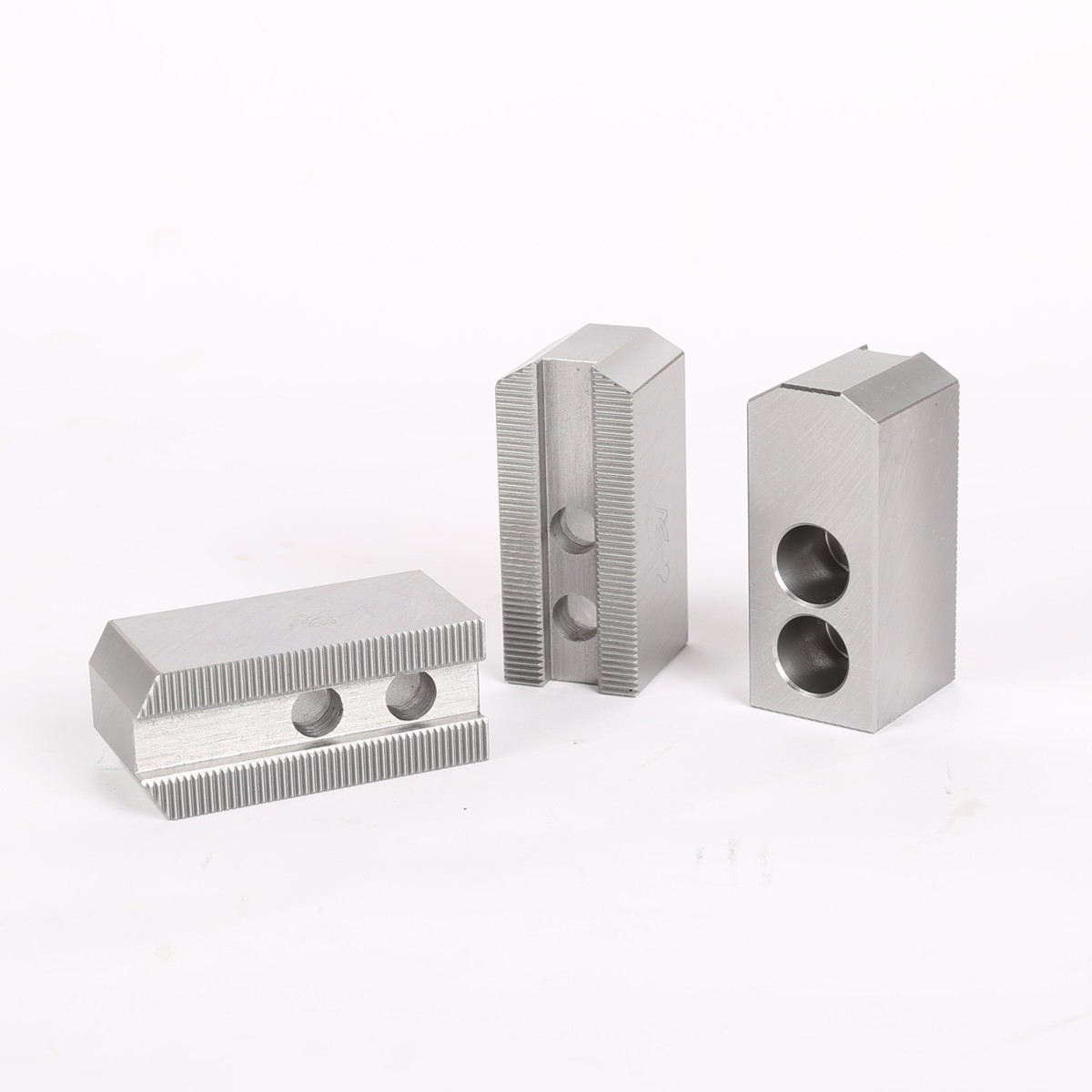

Advantages
1, For standard soft jaws, the material is high quality 45# steel, stronger and hardenable.
2, Fine serration pitch can tight fit with chuck master jaws, lower abrasion.

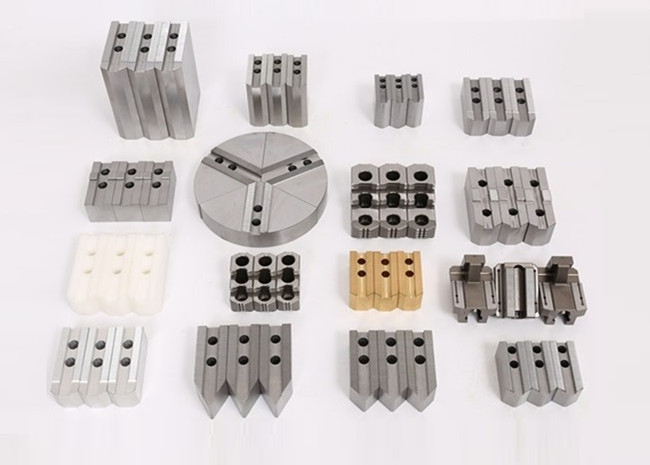

3, Applicable onto the related chuck models of SMW/Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/Autogrip/NTH and so on well-known brand.
4, Customized and non-standard jaws and be designed and OEM.
5, We have lots of successful experience for soft jaws gripping.

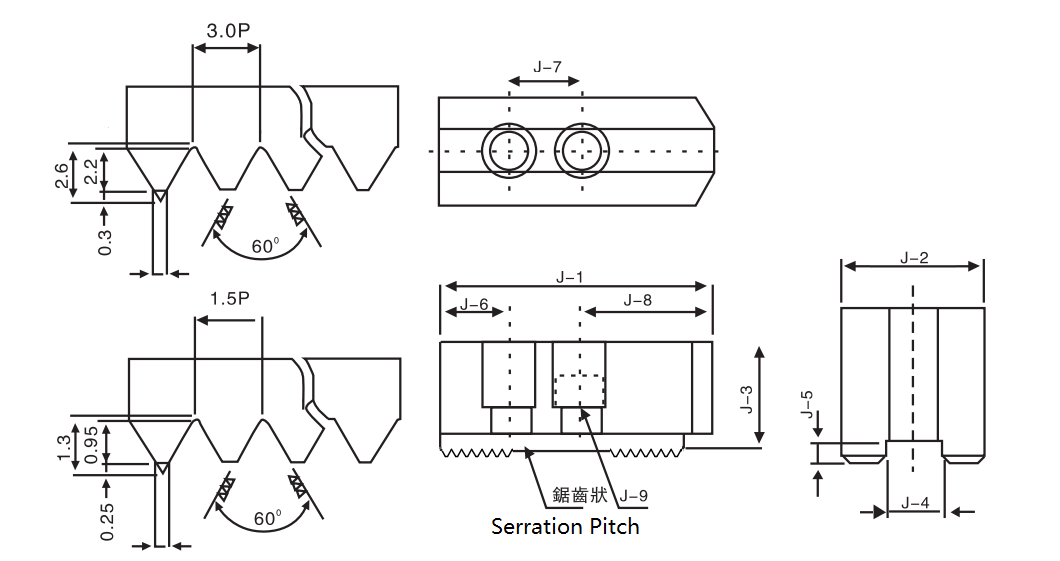

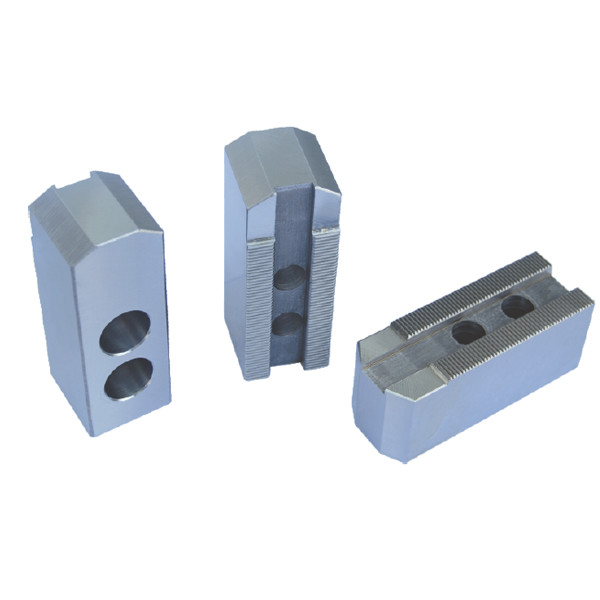

Specification Unit:mm
| SPEC/SIZE | Length J-1 | Width J-2 | Height J-3 | Slot width J-4 | Slot depth J-5 | J-6 | Hole center distance J-7 | J-8 | Screw J-9 | Normal Serration pitch | N.W.(Kg/set) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SC-04 | 53 | 23 | 23 | 10 | 4 | 9 | 14 | 29 | M8 | 1.5×60° | 0.42 |
| SC-05 | 62 | 25 | 30 | 10 | 4 | 10 | 14 | 38 | M8 | 1.5×60° | 0.85 |
| SC-06 | 73 | 31 | 36 | 12 | 5 | 15 | 20 | 38 | M10 | 1.5×60° | 1.5 |
| SC-08 | 95 | 35 | 38 | 14 | 5 | 24 | 25 | 46 | M12 | 1.5×60° | 2.4 |
| SC-10 | 110 | 40 | 42 | 16 | 5 | 30 | 30 | 50 | M12 | 1.5×60° | 3.6 |
SC-12-NT (Thru) | 129 | 50 | 50 | 21 | 6 | 39 | 30 | 60 | M16 | 1.5×60° | 6.1 |
SC-12-NT (Non-Thru) | 129 | 50 | 50 | 18 | 6 | 39 | 30 | 60 | M14 | 1.5×60° | 6.2 |
SC-15-T SC-18-T (Thru) | 165 | 62 | 62 | 22 | 8 | 37 | 43 | 85 | M20 | 1.5×60° | 12.5 |
SC-15-NT SC-18-NT (Non-Thru) | 165 | 62 | 62 | 25.5(26) | 6(9) | 37 | 43 | 85 | M20 | 1.5×60° | 12.5 |
SC-21 SC-24 | 180 | 65 | 70 | 25 | 9 | 40 | 60 | 80 | M20 | 3.0×60° | 16.2 |
| SC-32 | 210 | 74 | 90 | 25 | 9 | 40 | 80 | 90 | M20 | 3.0×60° | 29.2 |
| SC-40 | 270 | 85 | 110 | 30 | 4 | 76.2 | M24 | ||||
| SC-50 | 270 | 85 | 110 | 30 | 4 | 76.2 | M24 | ||||
| SC-63 | 270 | 110 | 110 | 30 | 4 | 76.2 | M24 | ||||
| SC-79 | 270 | 110 | 110 | 30 | 4 | 76.2 | M24 |
Other option of serration pitch: 3.0*60°
Subject to technical changes
