| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | SC-67-B-0408,SC-67-B-0510,SC-67-B-0612,SC-67-B-0616 etc. |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | SC-67-B-30 CHANGEABLE CENTER CONE FACE DIVER FOR HIGH SPEED LATHE TURNING | Material: | Alloy Steel |
|---|---|---|---|
| Function: | High Speed And High Precision Lathe Turning | Feature: | High Quality/High Precision |
| Usage: | Refer To The Specification | Service: | Less Than 0.005mm |
| Highlight: | CHANGEABLE CENTER CONE FACE DIVER, TURNING CHANGEABLE CENTER CONE FACE DIVER |
||

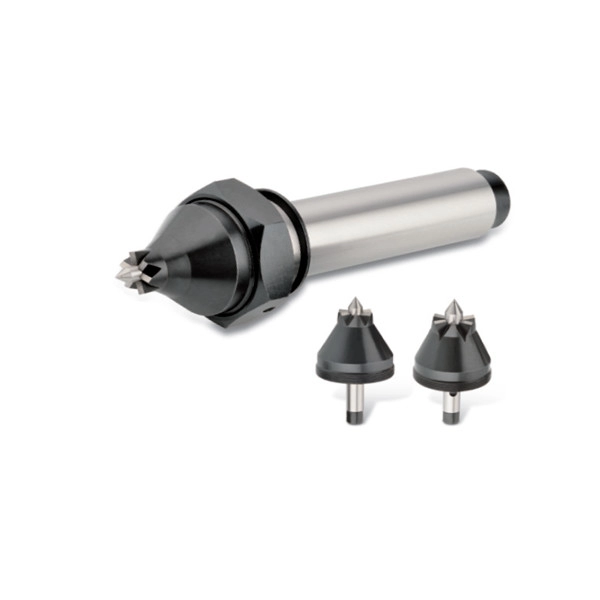

SC-67-B-30 CHANGEABLE CENTER CONE FACE DIVER FOR HIGH SPEED LATHE TURNING
Brand:NTH
Type: Face driving center,Interchangeable driving head type
Application: CNC lathe and high speed lathe and auto feeder and gear hobbing machine or other machine tool.
Characteristics: Before using this center, Please machine the workpiece ends at first,it can be used to turn forward or reverse direction. it's suitable for front and rear synchronous turning so as to the turning process can be finished by one-time. different size center cone is available, So, it's convenient and cost saving.
Inspecting the run out accuracy of the center tip must be under the status of holding the workbar tightly.
Note: Face driving by the enough pressure from the tailstock, stonger pressure, stronger driving force.
Accessories:Standard accessories
SC-67-0616
SC-67-0820
SC-67-1025
Download for More :
Product Catalogue : SC-67-B-30.pdf
Accessories Page for Reference
Center Technical User Manual for Reference

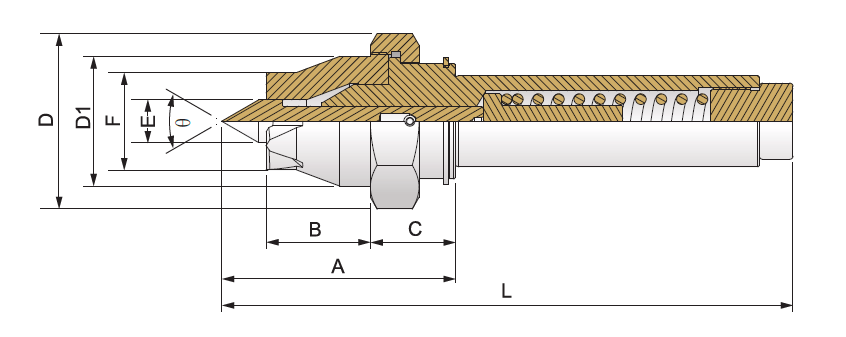

(UNIT:mm)
| Model/Spec | A | B | C | D | D1 | E | F | L |
| SC-67-B-0408 | 68.3 | 34.3 | 28 | 57 | 42.8 | 4 | 8 | 179.3 |
| SC-67-B-0510 | 68.3 | 34.3 | 28 | 57 | 42.8 | 5 | 10 | 179.3 |
| SC-67-B-0612 | 70.3 | 34.3 | 28 | 57 | 42.8 | 6 | 12 | 181.3 |
| SC-67-B-0616 | 70.3 | 34.3 | 28 | 57 | 42.8 | 6 | 16 | 181.3 |
| SC-67-B-0820 | 70.3 | 34.3 | 28 | 57 | 42.8 | 8 | 20 | 181.3 |
| SC-67-B-1025 | 73.9 | 34.3 | 28 | 57 | 42.8 | 10 | 25 | 184.9 |
| SC-67-B-1225 | 76.9 | 34.3 | 28 | 57 | 42.8 | 12 | 25 | 187.9 |
| SC-67-B-1432 | 76.9 | 34.3 | 28 | 57 | 42.8 | 14 | 32 | 187.9 |
Note: Customized order can be accepted.
Subject to technical changes.
