| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | F348-2,F348-3,F348-4,F348-5, |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | F348 INTERCHANGEABLE MEDIUM DUTY SMALL DIAMETER LIVE CENTER | Material: | Alloy Steel |
|---|---|---|---|
| Usage: | High Speed And High Precision Lathe Turning | Feature: | High Quality/High Precision |
| Size: | Refer To The Specification | TIR: | Less Than 0.005mm |
| High Light: | lathe tailstock live center,wood lathe tailstock live center |
||

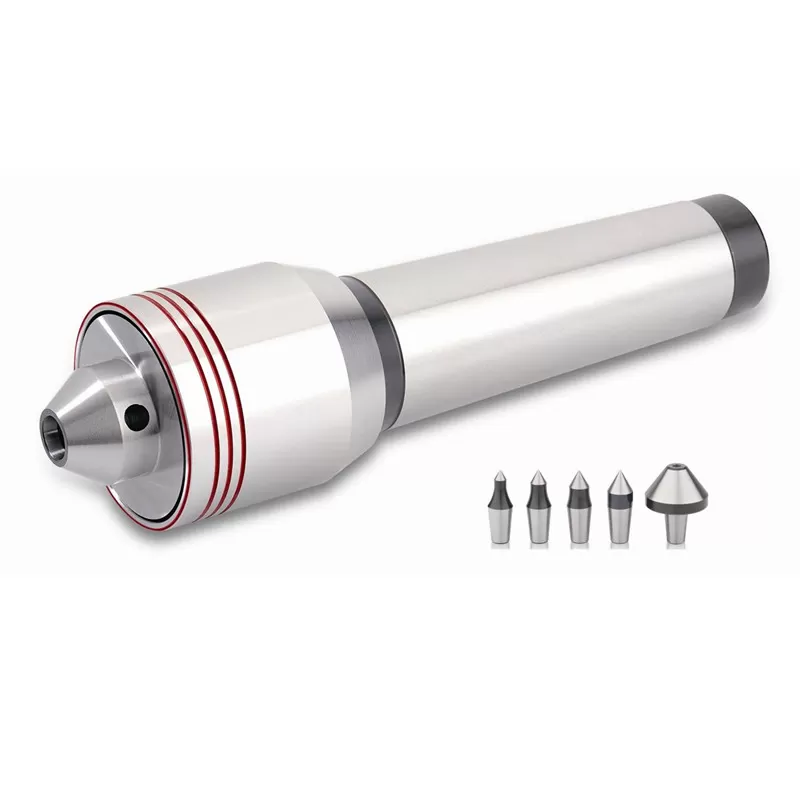

Type: F348 Interchangeble live center
Duty: Medium
Application CNC lathe and high speed lathe or other lathe machine.
Working Usage Applicable for small dia. and the length less than 300mm medium turning process.
Structure Combination of thrust bearing and needle bearing at front and rear place, and with the design of double supporting point.
Accessories 48 type Tips and 61 type pin punch.
TIR Less than 0.005mm

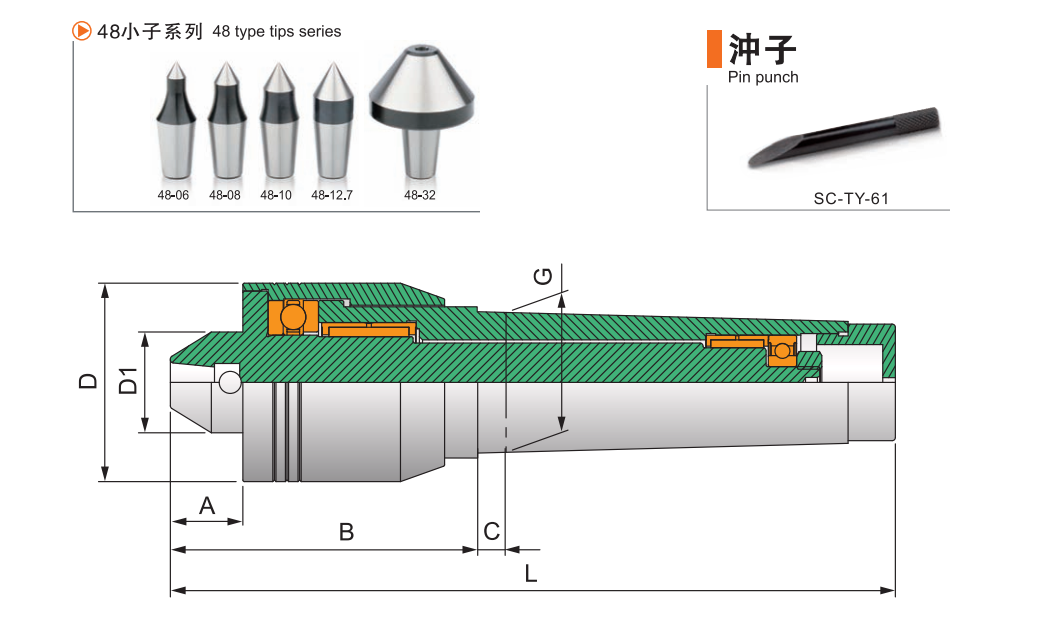

Specification UNIT:mm
Model | A | B | C | D | D1 | G | L | Max.RPM | Max. radial load | Max. axial thrustforce |
| F348-2 | 23 | 70 | 6 | 32 | 25 | 17.780(MT2) | 139 | 4,000rpm | 300kg | 1,000kg |
| F348-3 | 23 | 78 | 8 | 41 | 30 | 23.825(MT3) | 165 | 3,500rpm | 1,200kg | 1,500kg |
| F348-4 | 23 | 82 | 9 | 48 | 32 | 31.267(MT4) | 190 | 3,500rpm | 1,400kg | 1,900kg |
| F348-5 | 23 | 103 | 9 | 63 | 32 | 44.399(MT5) | 238 | 3,000rpm | 2,200kg | 2,500kg |
Remarks
1,For the lubricating oil,SKF-LGMT2 is designated,others aren't allowed
2,if "A" is behind the center model name,it denotes a draw-off nut attached.
3,About radial force data, please refer to workpiece weight and machining force.
4,if "A" is behind the center interchangeable tip name,it denotes the tip is extended length.
5,About axial force data, please refer to the hydraulic pressure data of the tailstock.
6,For live centers, SKF lubricating oil is designated, it is waterproof.
7,Customized order can be accepted.
8,Subject to technical changes
