| Product Name: | NCH-61 INTERCHANGEABLE MEDIUM DUTY PRECISION HIGH SPEED LIVE CENTER | Material: | High Quality/High Precision |
|---|---|---|---|
| Function: | Refer To The Specification | Feature: | NCH-61 INTERCHANGEABLE MEDIUM DUTY PRECISION HIGH SPEED LIVE CENTER |
| Usage: | Less Than 0.005mm | Service: | Alloy Steel |
| Highlight: | lathe tailstock live center, live center tailstock |
||

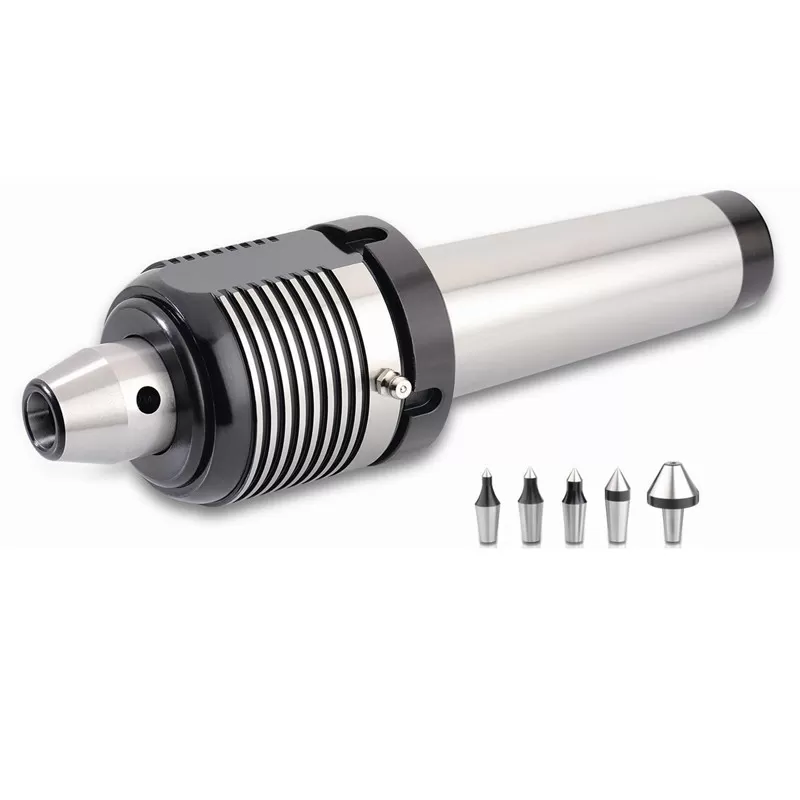

NCH-61 INTERCHANGEABLE MEDIUM DUTY PRECISION HIGH SPEED LIVE CENTER
Type: Interchangeble live center
Duty: Medium
Application CNC lathe and high speed lathe.
Working Usage High speed and high precision lathe turning.
Structure Combination of angular contact ball precise high speed bearing and needle bearing.
Accessories Y spanner and 61 type Tips and 61 type pin punch.
TIR Less than 0.005mm

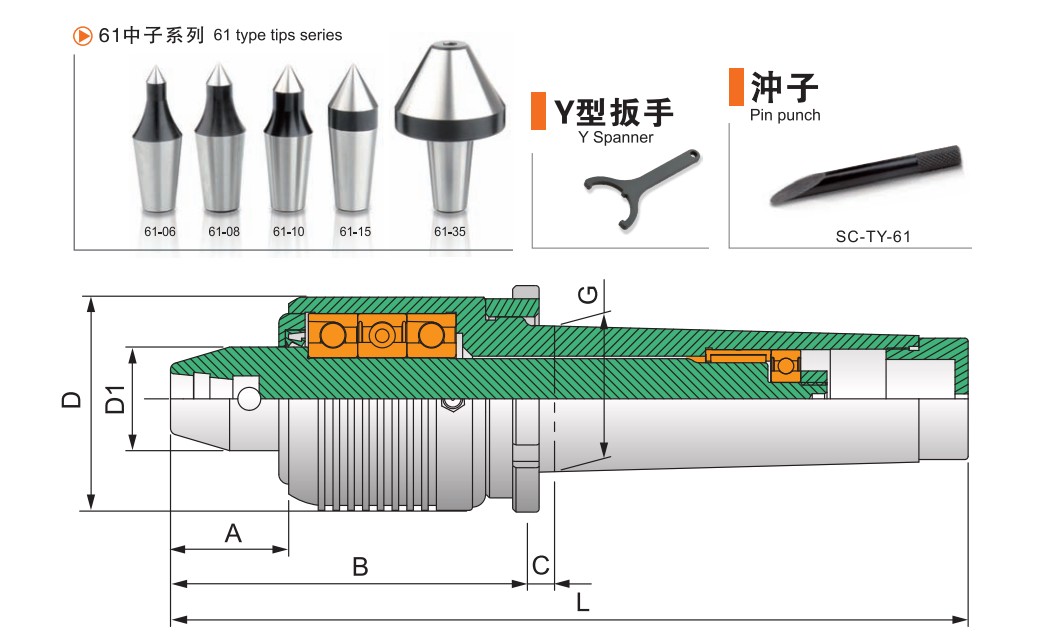

Specification UNIT:mm
| Model/Spec | A | B | C | D | D1 | G | L | Max. RPM | Max. radial load | Max. axial thrust force |
| NCH-61-3A | 36 | 105 | 8 | 57 | 31.2 | 23.825(MT3) | 192 | 12,000rpm | 1,600kg | 1,240kg |
| NCH-61-4A | 36 | 108 | 9 | 62 | 31.2 | 31.267(MT4) | 216 | 12,000rpm | 2,730kg | 1,750kg |
| NCH-61-5A | 36 | 108 | 9 | 62 | 31.2 | 44.399(MT5) | 243 | 12,000rpm | 2,730kg | 1,750kg |
Remarks
1, For the lubricating oil,SKF-LGMT2 is designated,others aren't allowed
2, if "A" is behind the center model name,it denotes a draw-off nut attached.
3, About radial force data, please refer to workpiece weight and machining force.
4, if "A" is behind the center interchangeable tip name,it denotes the tip is extended length.
5, About axial force data, please refer to the hydraulic pressure data of the tailstock.
6, For live centers, SKF lubricating oil is designated, it is waterproof.
7, Customized order can be accepted.
8, Subject to technical changes.
