| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | SC-66-B-40A,SC-66-B-40B,SC-66-B-40C |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | SC-66-B-40 CHANGEABLE SELF COMPENSATING FACE DRIVER | Material: | Alloy Steel |
|---|---|---|---|
| Function: | High Speed And High Precision Lathe Turning | Feature: | High Quality/High Precision |
| Usage: | Refer To The Specification | Service: | Less Than 0.005mm |
| Highlight: | CHANGEABLE SELF COMPENSATING FACE DRIVER, SC-66-B-40 FACE DRIVER |
||

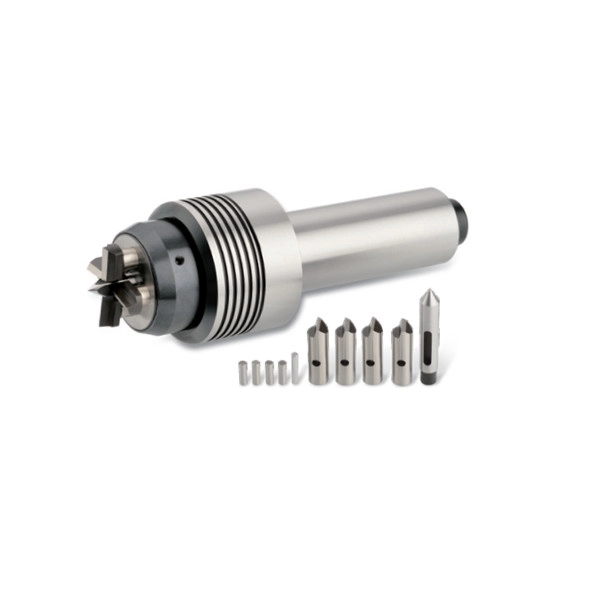

SC-66-B-40 CHANGEABLE SELF COMPENSATING FACE DRIVER
Brand:NTH
Type: Face driving center,Compensating pins type
Application: CNC lathe and high speed lathe and auto feeder or other machine tool
Working Usage: Without turning the workpiece face and each drive pin can adjust the transmission force,better precision and stability for turning and reversing lathing process
Structure: Adopted the design of mechanical balance structure
TIR: Less than 0.005mm
Inspecting the run out accuracy of the center tip must be under the status of holding the workbar tightly.
Accessories:
For SC-66-A group, center pins 09-09 and drive pins 10-10
For SC-66-B group, center pins 09-09 and drive pins 10-13
For SC-66-C group, center pins 09-06 and drive pins 10-17
Download for More :
Product Catalogue : SC-66-B-40 PDF.pdf
Accessories Page for Reference
Center Technical User Manual for Reference

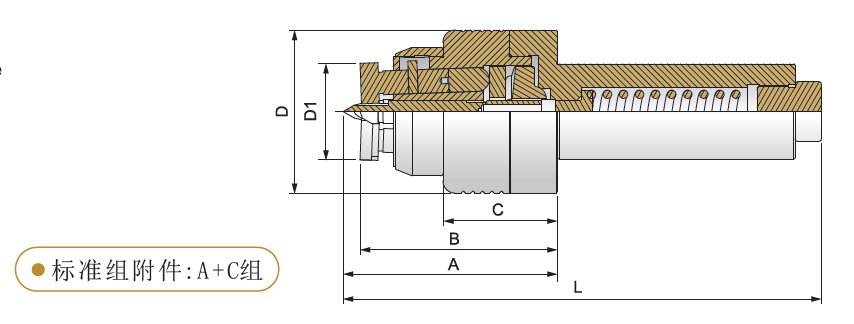

(UNIT:mm)
| Model/Spec | A | B | C | D | D1 | L | Working range (mini pin--big pin) |
| SC-66-B-40A | 92 | 82.7 | 48 | 68.5 | 33.5 | 203 | 17--40mm |
| SC-66-B-40B | 92 | 82.7 | 48 | 68.5 | 36.8 | 203 | 15--45mm |
| SC-66-B-40C | 92 | 82.7 | 48 | 68.5 | 40.5 | 203 | 10--50mm |
Note: Customized order can be accepted.
Subject to technical changes.
