| Product Name: | SC-62-A HEAVY DUTY LIVE CENTER TIR LESS THAN 0.002MM AND LONG-LASTING ALLOY STEEL | Material: | Alloy Steel |
|---|---|---|---|
| Function: | High Speed And High Precision Lathe Turning | Feature: | High Quality/High Precision |
| Usage: | Refer To The Specification | Service: | Less Than 0.002mm |
| Highlight: | SC-62-A LIVE CENTER, HEAVY DUTY LIVE CENTER, ALLOY STEEL HEAVY DUTY LIVE CENTER |
||

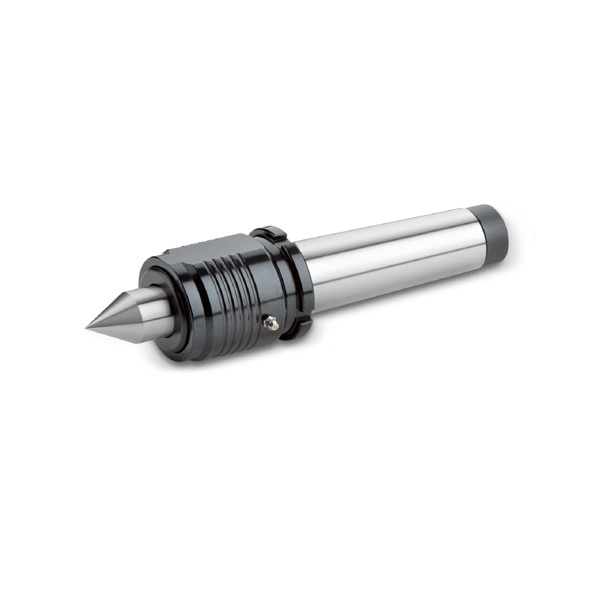

SC-62-A HEAVY DUTY LIVE CENTER TIR LESS THAN 0.002MM AND LONG-LASTING ALLOY STEEL
Brand:NTH
Type: Live centers series
Duty: Heavy
Application: CNC lathe, high speed lathe, other lathe machine
Working Usage: Applicable for the length less than 400mm ordinary stong turning process
Structure: Combination of double row precise ball bearing and thrust bearing and needle bearing
Accessories: For SC-62-H-4A/5A :Y type spanner
TIR: Less than 0.002mm
Inspecting the run out accuracy of the center tip must be under the status of holding the workbar tightly.
There is S model of light duty type, same spec, which can improve the issue of deformation of processing slender workpiece
(UNIT:mm)

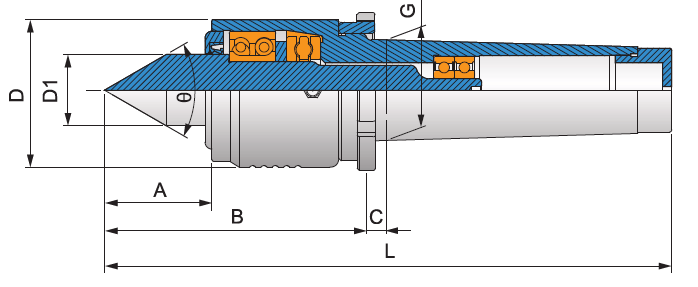

| Model/Spec | A | B | C | D | D1 | G | L | Center | Max. RPM | Max. radial load | Max. axial thrust force |
| SC-62-H-5 | 48 | 104 | 9 | 62 | 31.2 | 44.399(MT5) | 239 | 60° | 4,000rpm | 1,430kg | 2,700kg |
| SC-62-H-3A | 48 | 116 | 5 | 62 | 31.2 | 23.825(MT3) | 224 | 60° | 4,000rpm | 1,430kg | 2,700kg |
| SC-62-H-4A | 48 | 116 | 5 | 62 | 31.2 | 31.267(MT4) | 224 | 60° | 4,000rpm | 1,430kg | 2,700kg |
| SC-62-H-5A | 48 | 116 | 5 | 62 | 31.2 | 44.399(MT5) | 254 | 60° | 4,000rpm | 1,430kg | 2,700kg |
Remarks
1,For the lubricating oil,SKF-LGMT2 is designated,others aren't allowed

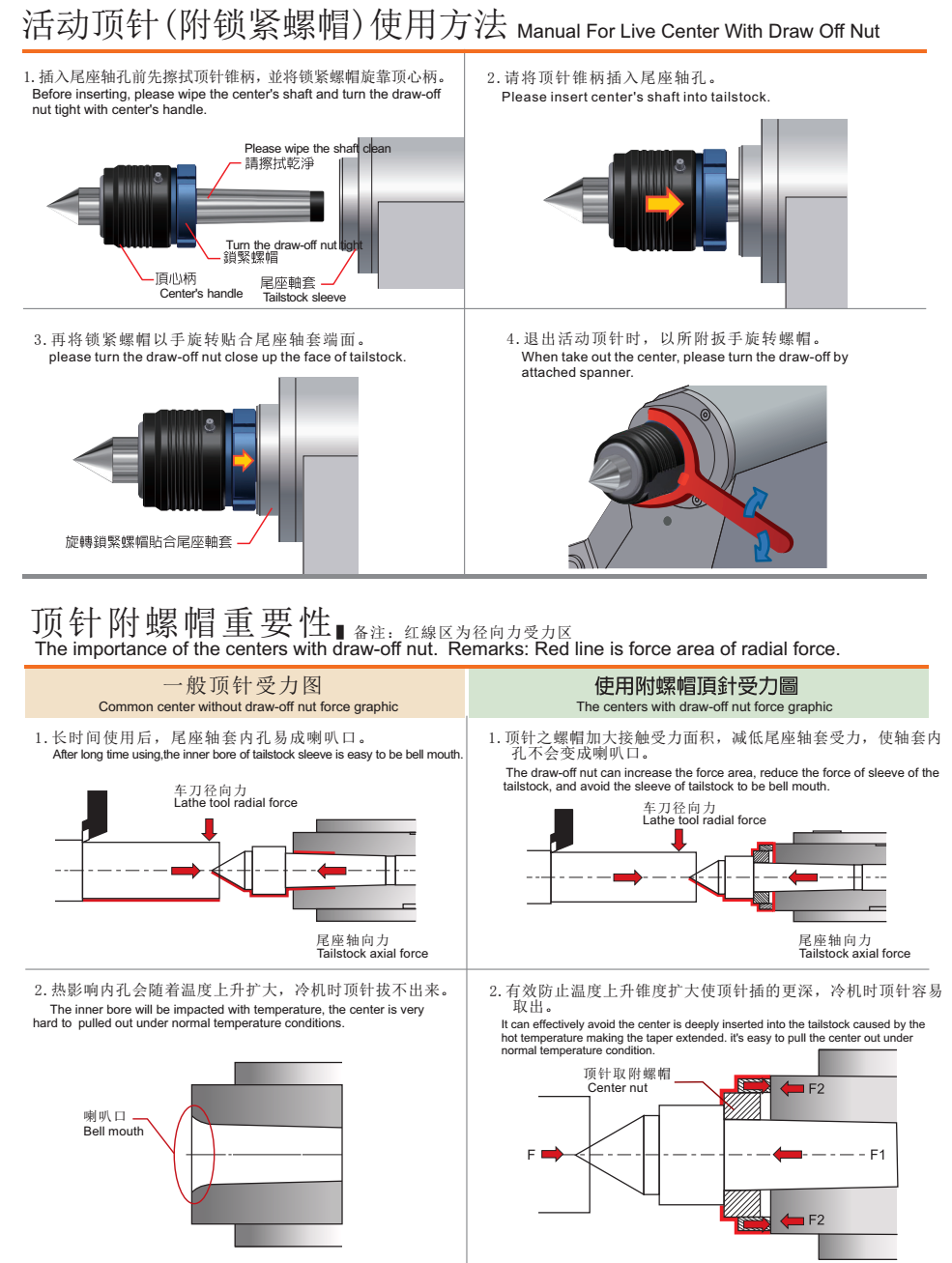

2,if "A" is behind the center model name,it denotes a draw-off nut attached.
3,About radial force data, please refer to workpiece weight and machining force.
4,if "A" is behind the center interchangeable tip name,it denotes the tip is extended length.
5,About axial force data, please refer to the hydraulic pressure data of the tailstock.
6,For live centers, SKF lubricating oil is designated, it is waterproof.
7,Customized order can be accepted.
8,Subject to technical changes.
