| Product Name: | SC-65-A INTERCHANGEABLE HEAVY DUTY LIVE CENTER WITH DRAW OFF NUT | Material: | Alloy Steel |
|---|---|---|---|
| Function: | High Speed And High Precision Lathe Turning | Feature: | High Quality/High Precision |
| Usage: | Refer To The Specification | Service: | Less Than 0.005mm |
| Highlight: | DRAW-OFF NUT LIVE CENTER, INTERCHANGEABLE HEAVY DUTY LIVE CENTER |
||

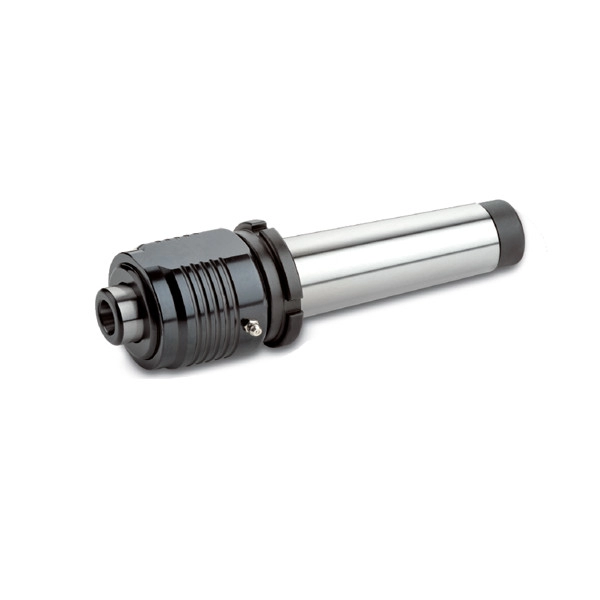

SC-65-A INTERCHANGEABLE HEAVY DUTY LIVE CENTER WITH DRAW OFF NUT
Brand:NTH
Type: Interchangeble live center
Duty: Heavy
Application CNC lathe and high speed lathe or other lathe.
Working Usage Applicable for the length less than 400mm ordinary strong turning process.
Structure Combination of double row ball precise bearing and thrust bearing and needle bearing.
Accessories: For SC-61-H-4A/5A, Y spanner and 65 type Tips and 65 type punch.
TIR Less than 0.005mm.
Inspecting the run out accuracy of the center tip must be under the status of holding the workbar tightly.
There is S model of light duty type, same spec, which can improve the issue of deformation of processing slender workpiece.
(UNIT:mm)

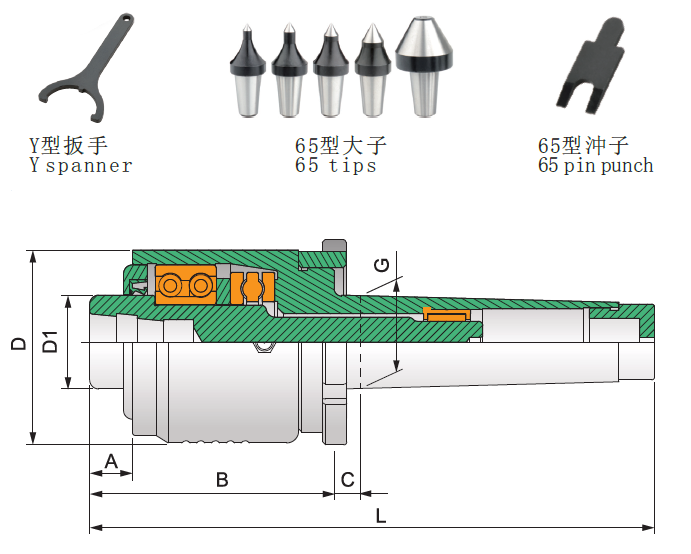

| Model/Spec | A | B | C | D | D1 | G | L | Max.RPM | Max. radial load | Max. axial thrust force |
| SC-65-H-4A | 14 | 82 | 9 | 62 | 31.2 | 31.267(MT4) | 190 | 4,000rpm | 1,430kg | 2,700kg |
| SC-65-H-5A | 14 | 82 | 9 | 62 | 31.2 | 44.399(MT5) | 217 | 4,000rpm | 1,430kg | 2,700kg |
Remarks:
1,For the lubricating oil,SKF-LGMT2 is designated,others aren't allowed

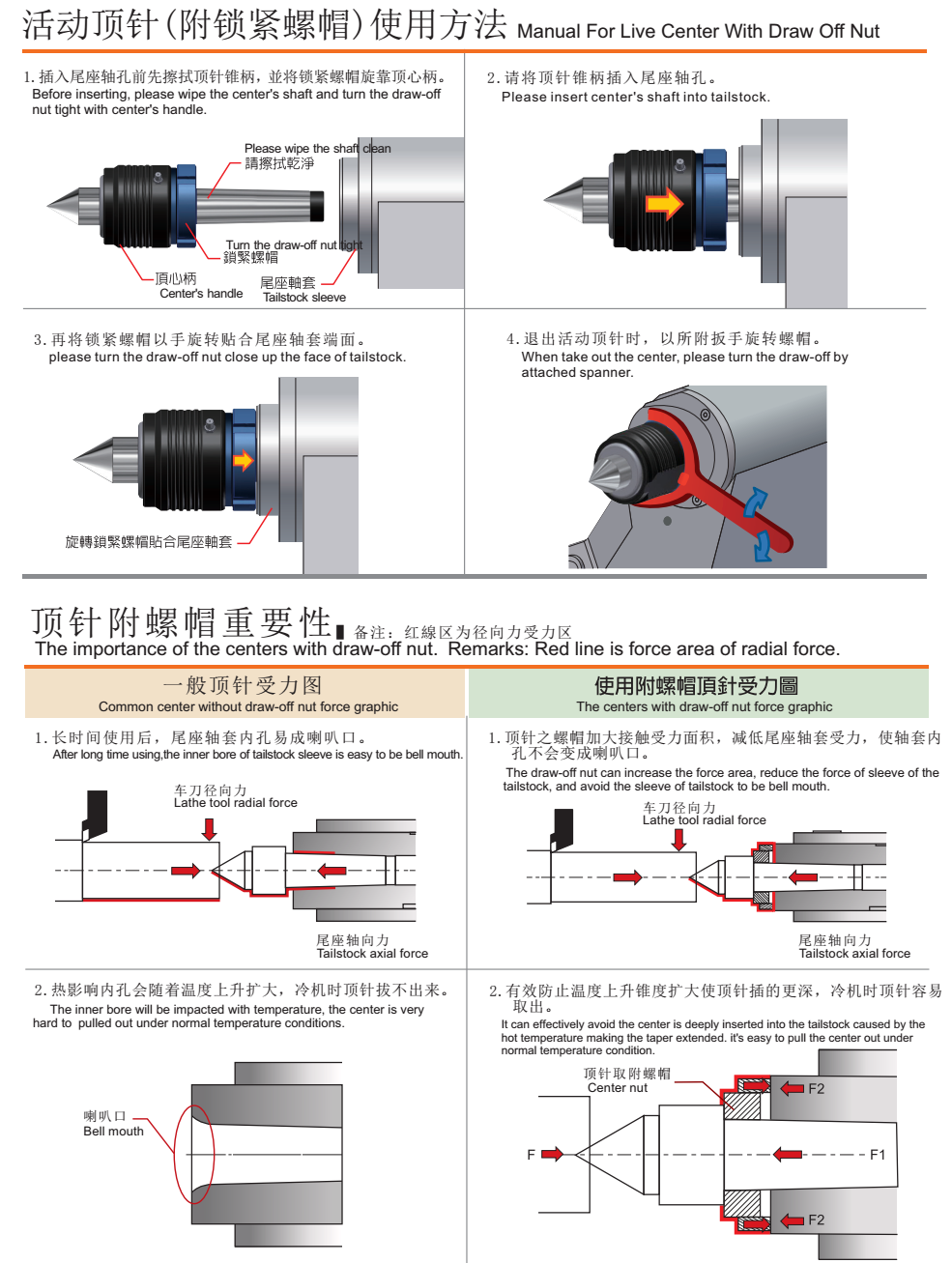

2,if "A" is behind the center model name,it denotes a draw-off nut attached.
3,About radial force data, please refer to workpiece weight and machining force.
4,if "A" is behind the center interchangeable tip name,it denotes the tip is extended length.
5,About axial force data, please refer to the hydraulic pressure data of the tailstock.
6,For live centers, SKF lubricating oil is designated, it is waterproof.
7,Customized order can be accepted.
8,Subject to technical changes.
