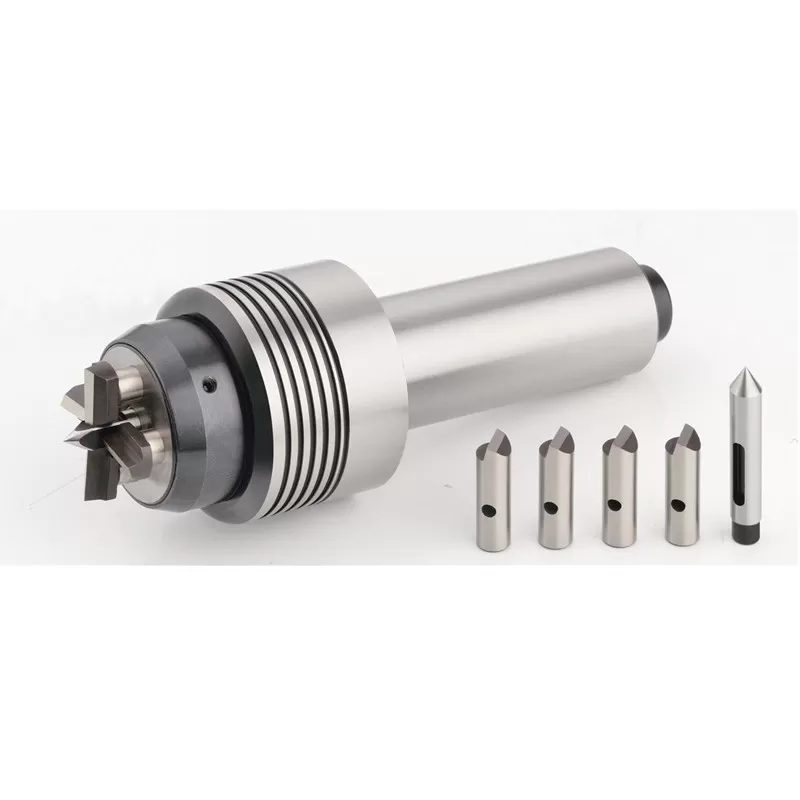

SC-66-B CHANGEABLE SELF COMPENSATING FACE DRIVER

Basic Information
Place of Origin: CHINA
Brand Name: NTH
Model Number: SC-66-B-40A,SC-66-B-40B,SC-66-B-40C
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Good and firm package is suitable for sea and air shipping
Delivery Time: 3 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000 sets/M
Product Name: SC-66-B CHANGEABLE SELF COMPENSATING FACE DRIVER Material: Alloy Steel
Usage: High Speed And High Precision Lathe Turning Feature: High Quality/High Precision
Size: Refer To The Specification TIR: Less Than 0.005mm
High Light:

live center tailstock

,

wood lathe tailstock live center

SC-66-B CHANGEABLE SELF COMPENSATING FACE DRIVER

Type: Face driving center,Compensating pins type

Application: CNC lathe and high speed lathe and auto feeder or other machine tool

Working Usage: Without turning the workpiece face and each drive pin can adjust the transmission force,better precision and stability for turning and reversing lathing process

Structure: Adopted the design of mechanical balance structure

Accessories: For SC-66-A group, center pins 09-09 and drive pins 10-10

For SC-66-B group, center pins 09-09 and drive pins 10-13

For SC-66-C group, center pins 09-06 and drive pins 10-17

TIR: Less than 0.005mm


SC-66-B CHANGEABLE SELF COMPENSATING FACE DRIVER 0

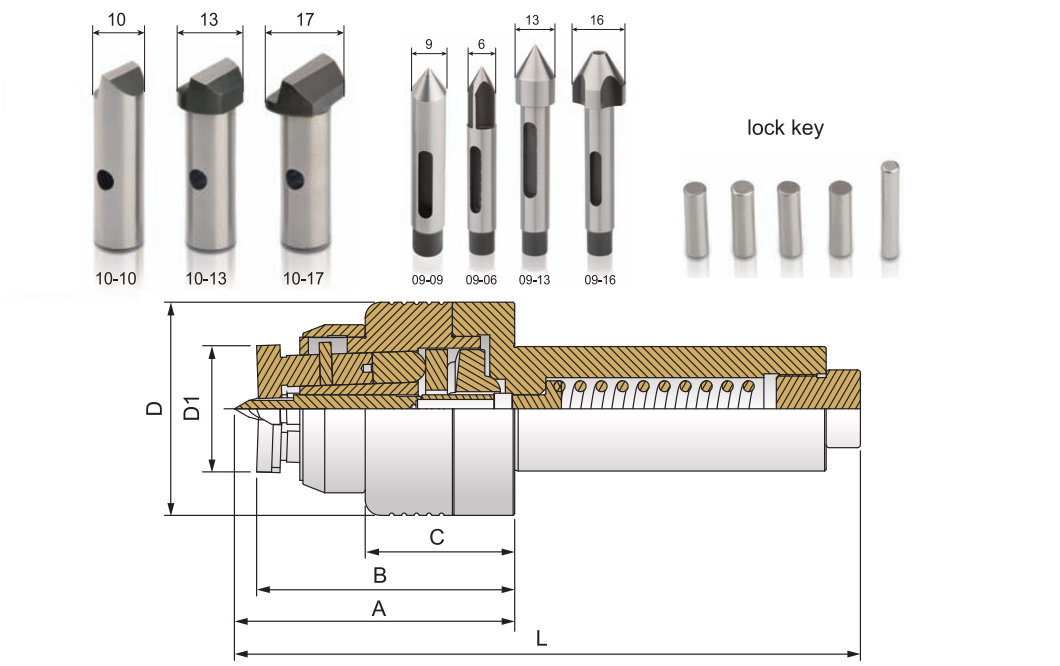

Specification UNIT:mm

Model/Spec A B C D D1 L

Working range

(mini pin--big pin)

SC-66-B-40A 92 82.7 48 68.5 33.5 203 17--40mm
SC-66-B-40B 92 82.7 48 68.5 36.8 203 15--45mm
SC-66-B-40C 92 82.7 48 68.5 40.5 203 10--50mm

Customized order can be accepted.
Subject to technical changes.
