| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | TSC-9665-3A,TSC-9665-4A,TSC-9665-5A, |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | TSC-9665 INTERCHANGEABLE LIGHT DUTY WITH NUT DEAD CENTER | Material: | Alloy Steel |
|---|---|---|---|
| Function: | High Speed And High Precision Lathe Turning | Feature: | High Quality/High Precision |
| Usage: | Refer To The Specification | Service: | Less Than 0.002mm |
| Highlight: | live center tailstock, wood lathe tailstock live center |
||

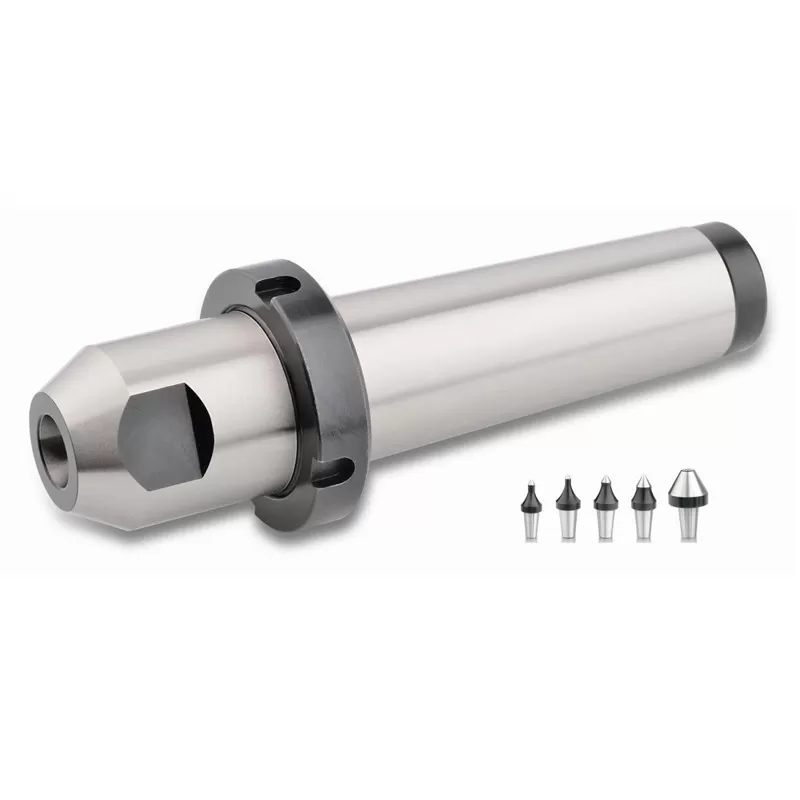

TSC-9665 INTERCHANGEABLE LIGHT DUTY WITH NUT DEAD CENTER
Type: Live centers series
Duty: Light
Application: CNC lathe and other lathe
Working Usage: Applicable for rotary structure of tailstock
Structure: Made of alloy steel and hardened to HRC 57-60, precision ground
Accessories: Y type spanner and 65 type tips and 65 type punch
TIR: Less than 0.002mm

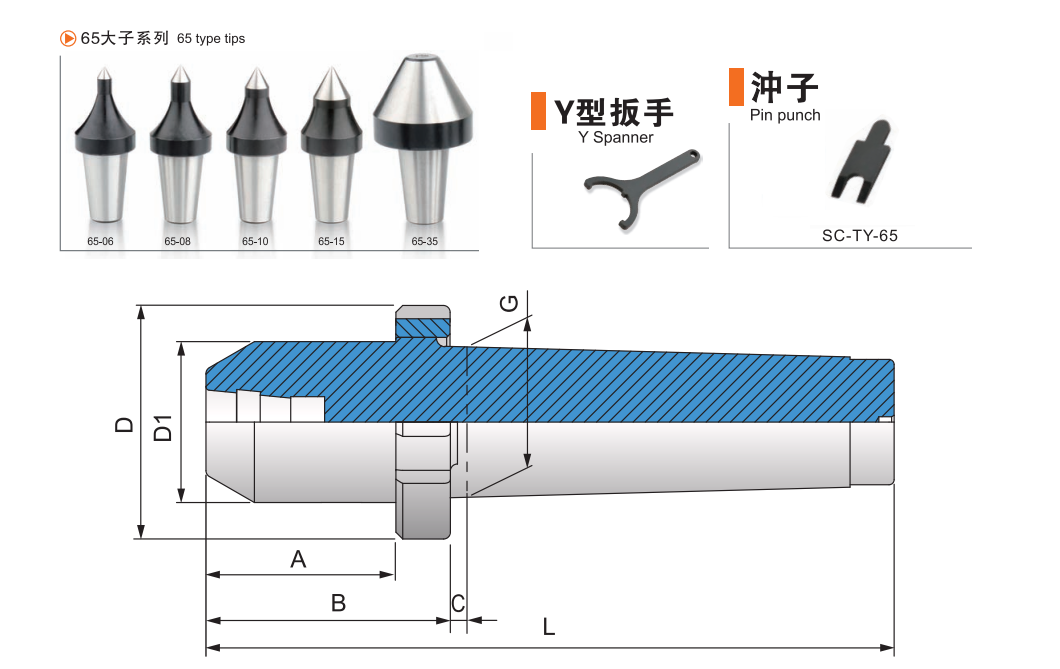

Specification UNIT:mm
| Model/Spec | A | B | C | D | D1 | G | L |
| TSC-9665-3A | 30 | 49 | 8 | 68 | 31.6 | 23.825(MT3) | 136 |
| TSC-9665-4A | 30 | 50 | 9 | 68 | 31.6 | 31.267(MT4) | 158 |
| TSC-9665-5A | 50 | 68 | 5 | 68 | 47.3 | 44.399(MT5) | 203 |
Customized order can be accepted.
Subject to technical changes.
