| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Certification: | CE |
| Model Number: | V6,V688,V690,V810 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days available |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 1000 sets/M |

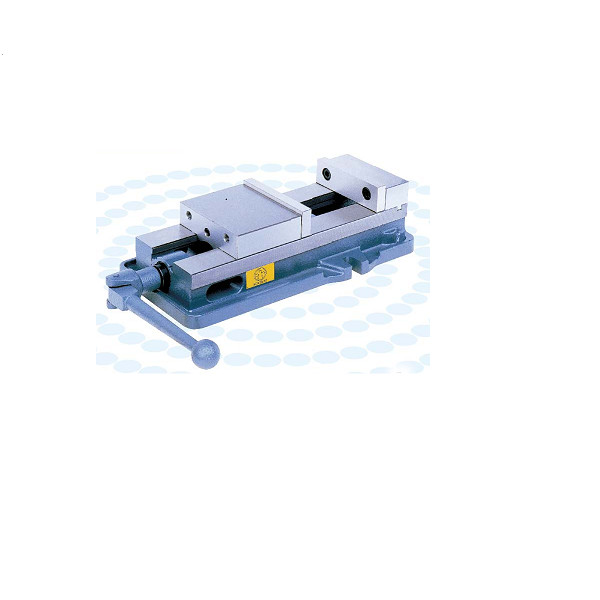

| Product Name: | Powerful Vise | Material: | Nodular Cast Iron |
|---|---|---|---|
| Usage: | Gripping | Feature: | High Precision/Stable/High Quality |
| Size: | Refer To The Specification | Precision: | Within 0.02mm/100mm |
| Highlight: | V FIXED ANGLE LOCK VISE,GRIPPING V FIXED ANGLE LOCK VISE |
||
Brand:NTH
Product Catalogue :V FIXED ANGLE LOCK VISE.pdf

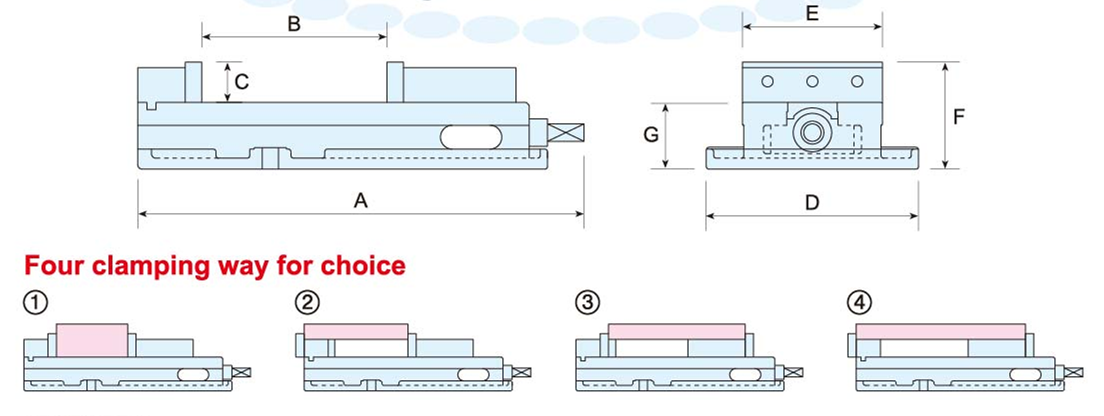

| MODEL | A | B | C | D | E | F | G | WG |
| V6 | 536 | 185 | 48 | 232 | 150 | 121 | 73 | 35kg |
| V688 | 510 | 223 | 44 | 232 | 151 | 117 | 73 | 39kg |
| V690 | 520 | 228 | 44 | 232 | 151 | 117 | 73 | 39kg |
| V810 | 615 | 254 | 55 | 292 | 202 | 139 | 84 | 66kg |
