| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | MHV-100A,MHV-130A,MHV-160A,MHV-200A, |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for the sea and air shipping |
| Delivery Time: | 3work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | MHV-A Super precision hydraulic vice | Material: | Nodular Cast Iron |
|---|---|---|---|
| Function: | Feature: | High Precision/Stable/High Quality | |
| Usage: | Gripping | Service: | |
| Highlight: | pneumatic machine vice, cnc milling vise |
||

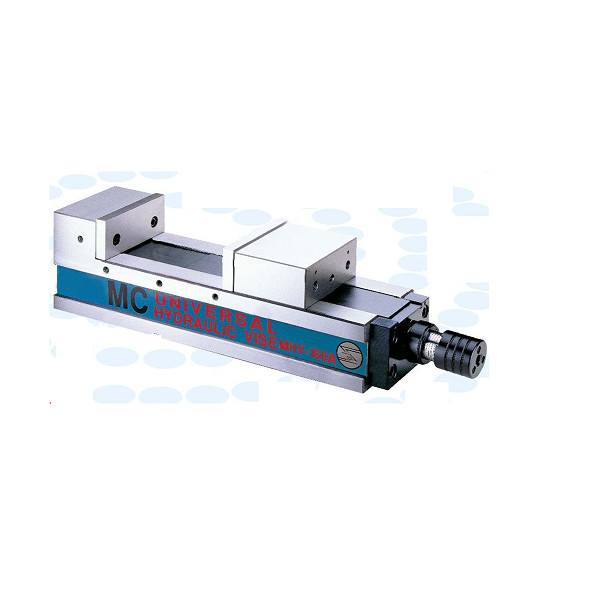

MHV-A Super precision hydraulic vice

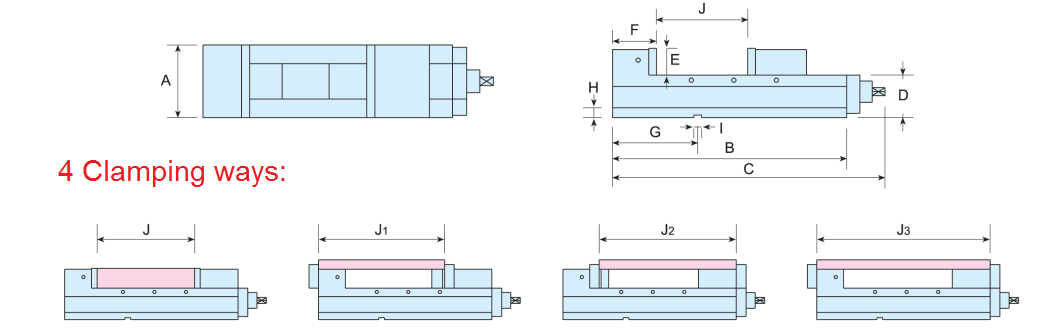

| MODEL | A | B | C | D | E | F | G | H | I | J | J1 | J2 | J3 | N.W | G.W | Clamping force |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MHV-100A | 100 | 400 | 540 | 85 | 45 | 80 | 110 | 23 | 18 | 150 | 230 | 260 | 340 | 32kg | 35kg | 4000kgf |
| MHV-130A | 130 | 450 | 590 | 95 | 50 | 85 | 135 | 23 | 18 | 200 | 285 | 320 | 405 | 45kg | 48kg | 4500kgf |
| MHV-160A | 160 | 550 | 690 | 100 | 60 | 103 | 200 | 23 | 18 | 265 | 380 | 400 | 500 | 63kg | 66kg | 5000kgf |
| MHV-200A | 200 | 600 | 740 | 110 | 65 | 108 | 220 | 23 | 18 | 300 | 438 | 470 | 578 | 92kg | 104kg | 5500kgf |
