| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | VIP-100,VIP-130,VIP-160,VIP-200, |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for the sea and air shipping |
| Delivery Time: | 3work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | VIP Constant pressure super precision vise | Material: | Nodular Cast Iron |
|---|---|---|---|
| Function: | Feature: | High Precision/Stable/High Quality | |
| Usage: | Gripping | Service: | |
| Highlight: | rotary vise for milling machine, cnc milling vise |
||

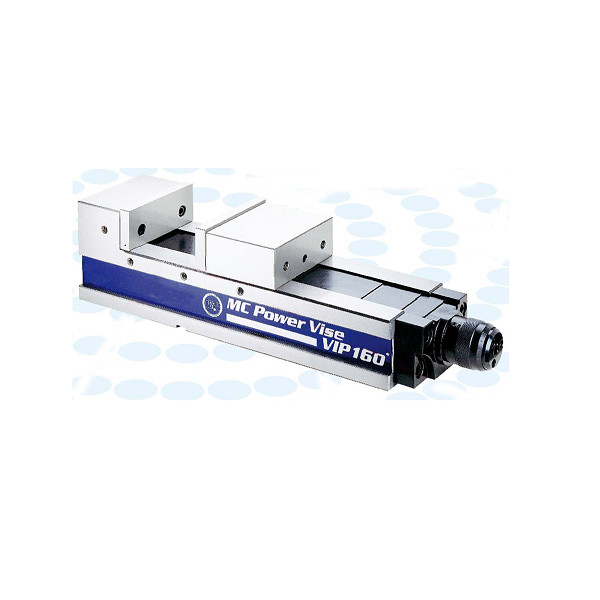

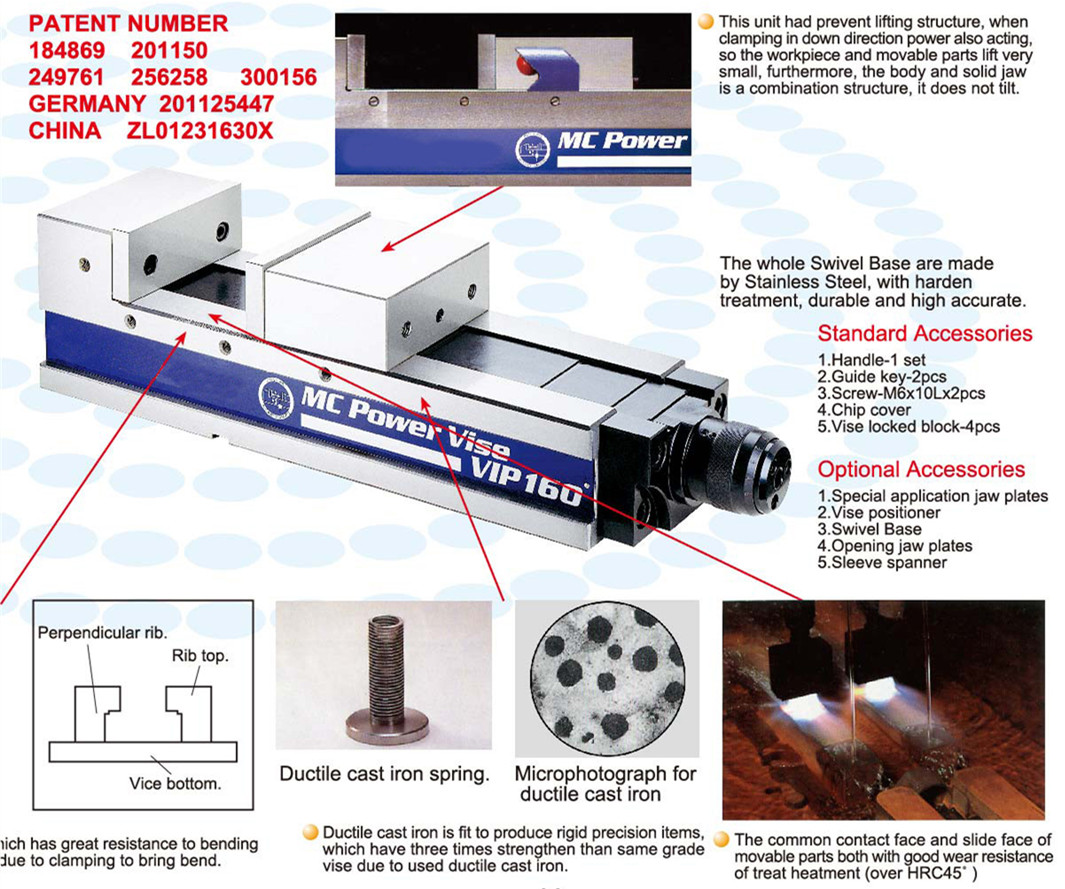

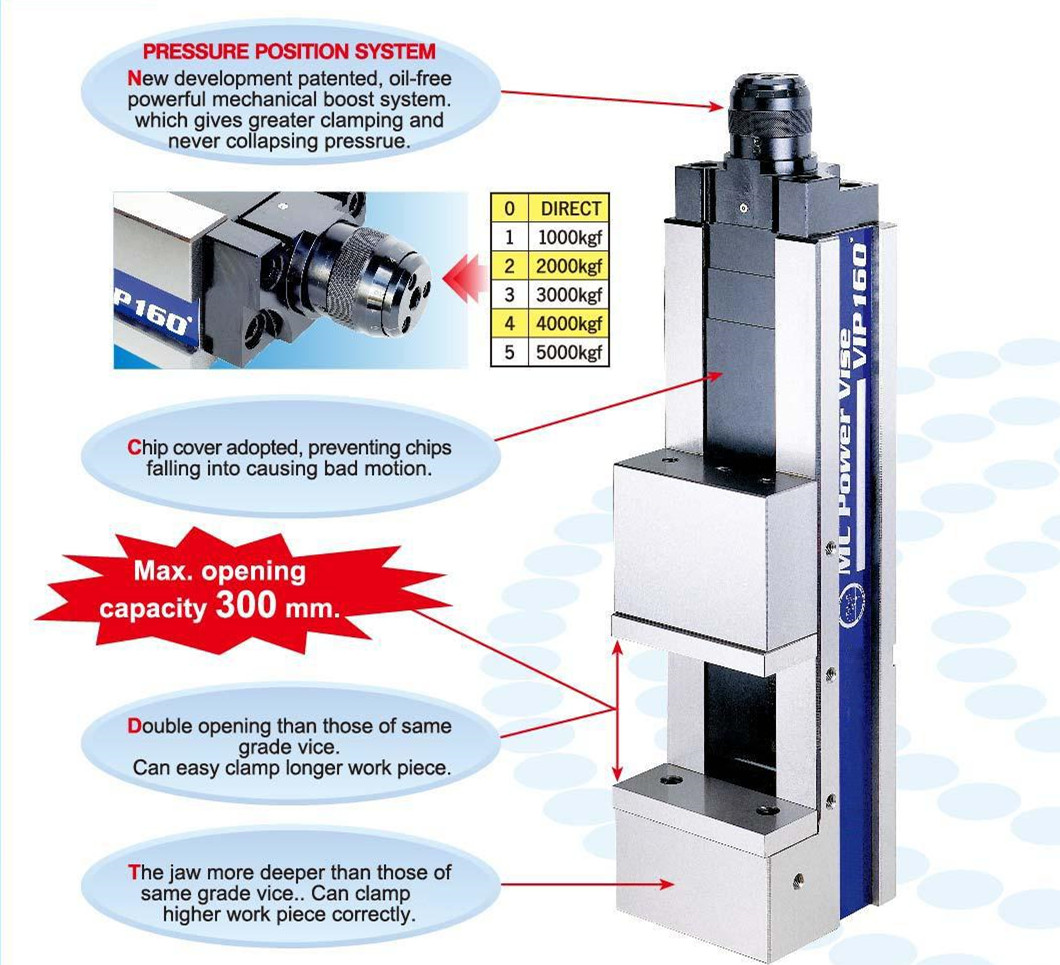

VIP Constant pressure super precision vise

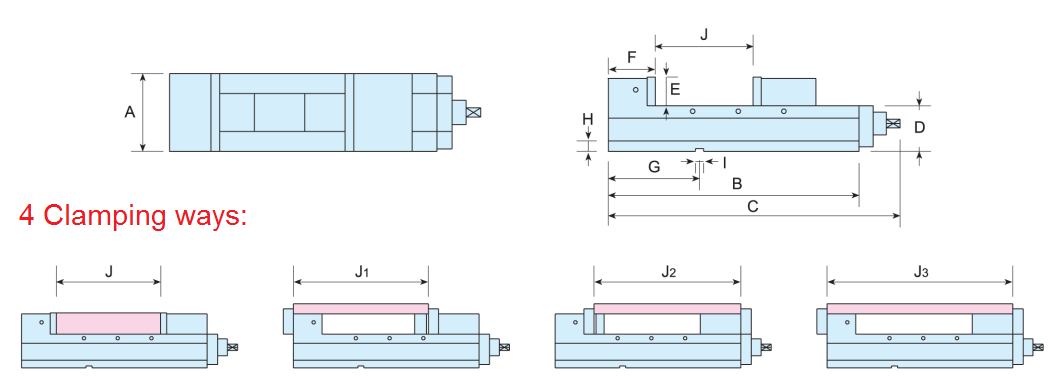

| MODEL | A | B | C | D | E | F | G | H | I | J | J1 | J2 | J3 | N .W | G.W | Clamping Force |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VIP-100 | 100 | 400 | 530 | 85 | 45 | 80 | 110 | 23 | 18 | 200 | 230 | 260 | 340 | 32kg | 35kg | 4000kgf |
| VIP-130 | 130 | 450 | 580 | 95 | 50 | 85 | 135 | 23 | 18 | 240 | 285 | 320 | 405 | 45kg | 48kg | 4500kgf |
| VIP-160 | 160 | 550 | 680 | 100 | 60 | 103 | 200 | 23 | 18 | 300 | 380 | 400 | 500 | 63kg | 66kg | 5000kgf |
| VIP-200 | 200 | 600 | 730 | 110 | 60 | 108 | 220 | 23 | 18 | 340 | 438 | 470 | 578 | 92kg | 104kg | 5500kgf |
