MLD-A Double lock anglock fine adjustment mechanical vice

Basic Information

Place of Origin:	CHINA
Brand Name:	NTH
Model Number:	MLD-100A,MLD-160A,

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Good and firm package is suitable for sea and air shipping
Delivery Time:	3 work days available
Payment Terms:	Western Union, T/T
Supply Ability:	1000 sets/M

Contact Now

Product Name:	Double Lock Anglock Fine Adjustment Mechanical Vice	Material:	Nodular Cast Iron
Usage:	Gripping	Feature:	High Precision/Stable/High Quality
Size:	Refer To The Specification	Precision:	Within 0.02mm/100mm
High Light:	rotary vise for milling machine , cnc milling vise

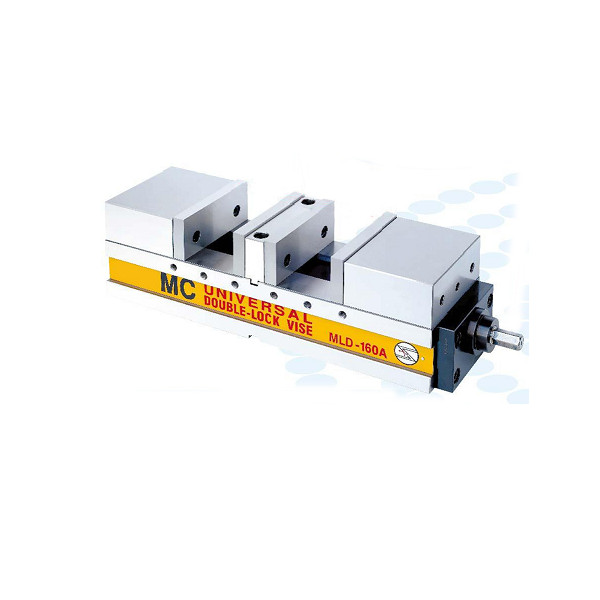

Double lock anglock fine adjustment mechanical vice

MLD-A Double lock anglock fine adjustment mechanical vice 0

MLD-A Double lock anglock fine adjustment mechanical vice 1

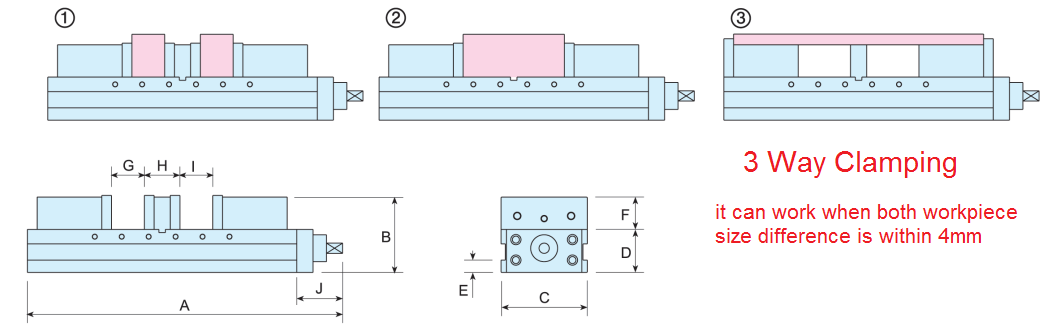

MODEL	A	B	C	D	E	F	G	H	I	J	WEIGHT
MLD-100A	470	105	100	65	23	40	55	60	55	70	25kg
MLD-160A	580	145	160	90	23	60	75	66	75	80	50kg

MLD-A Double lock anglock fine adjustment mechanical vice 2
