| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Certification: | CE |
| Model Number: | MB-2V Series |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days available |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 1000 sets/M |

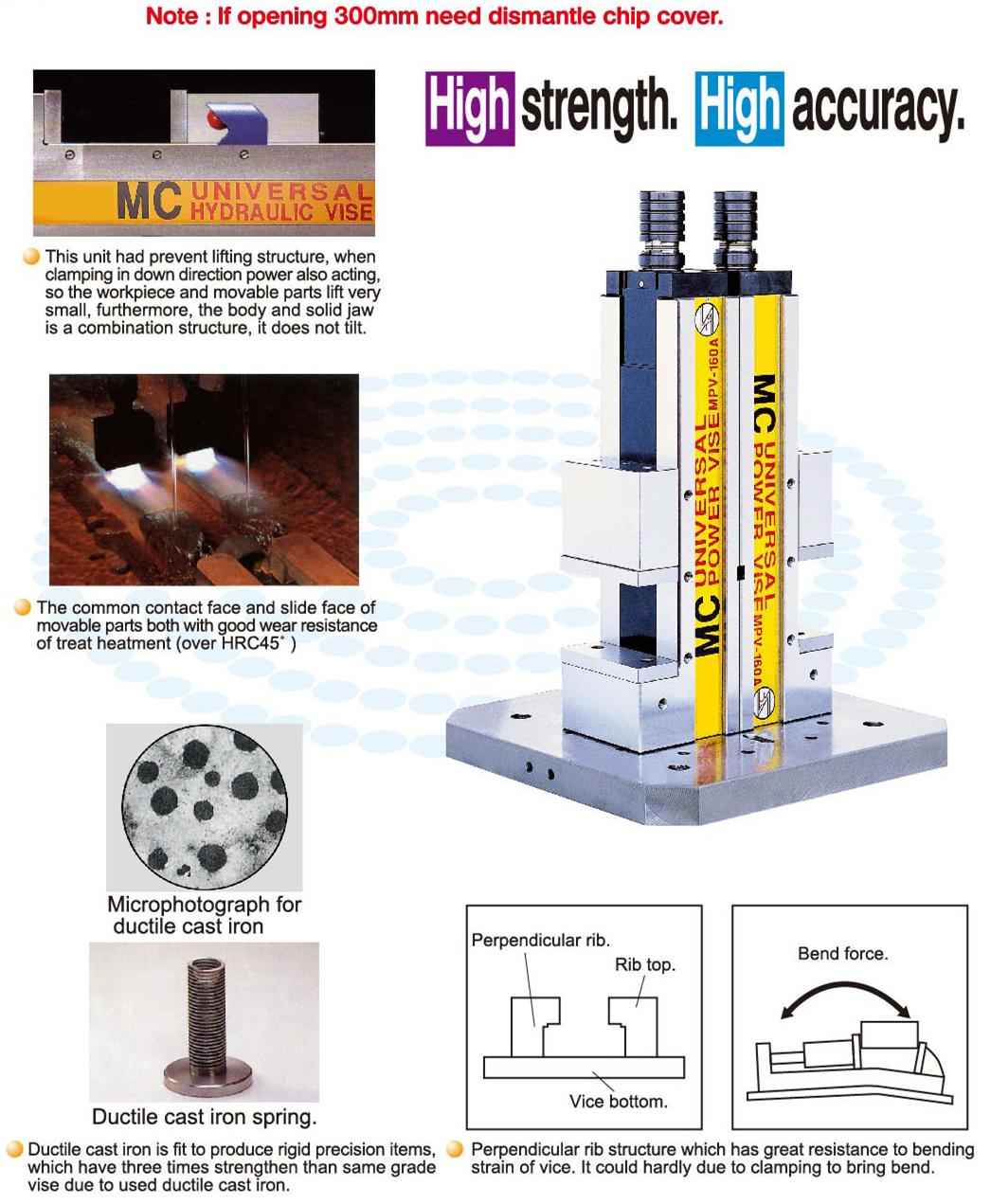

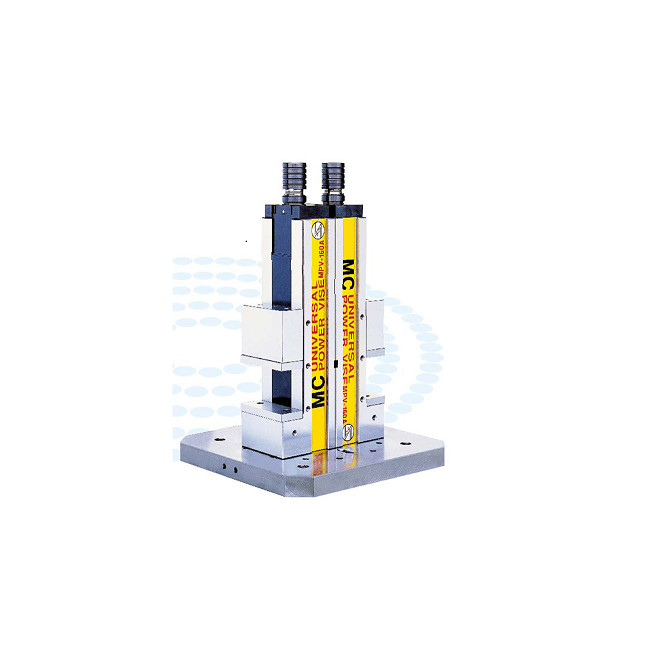

| Product Name: | MB-2V 2 SET IN ONE UNIT VERTICAL PRECISION VICE | Material: | Nodular Cast Iron |
|---|---|---|---|
| Usage: | Gripping | Feature: | High Precision/Stable/High Quality |

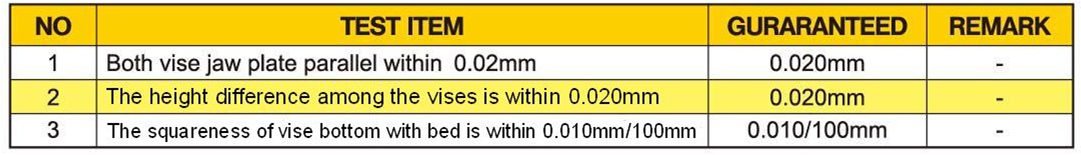

| Size: | Refer To The Specification | Precision: | Within 0.02mm/100mm |
| Highlight: | MB-2V VERTICAL PRECISION VICE,VERTICAL PRECISION VICE |
||
Brand:NTH
Product Catalogue :MB-2V 2 SET IN ONE UNIT VERTICAL PRECISION VICE.pd...

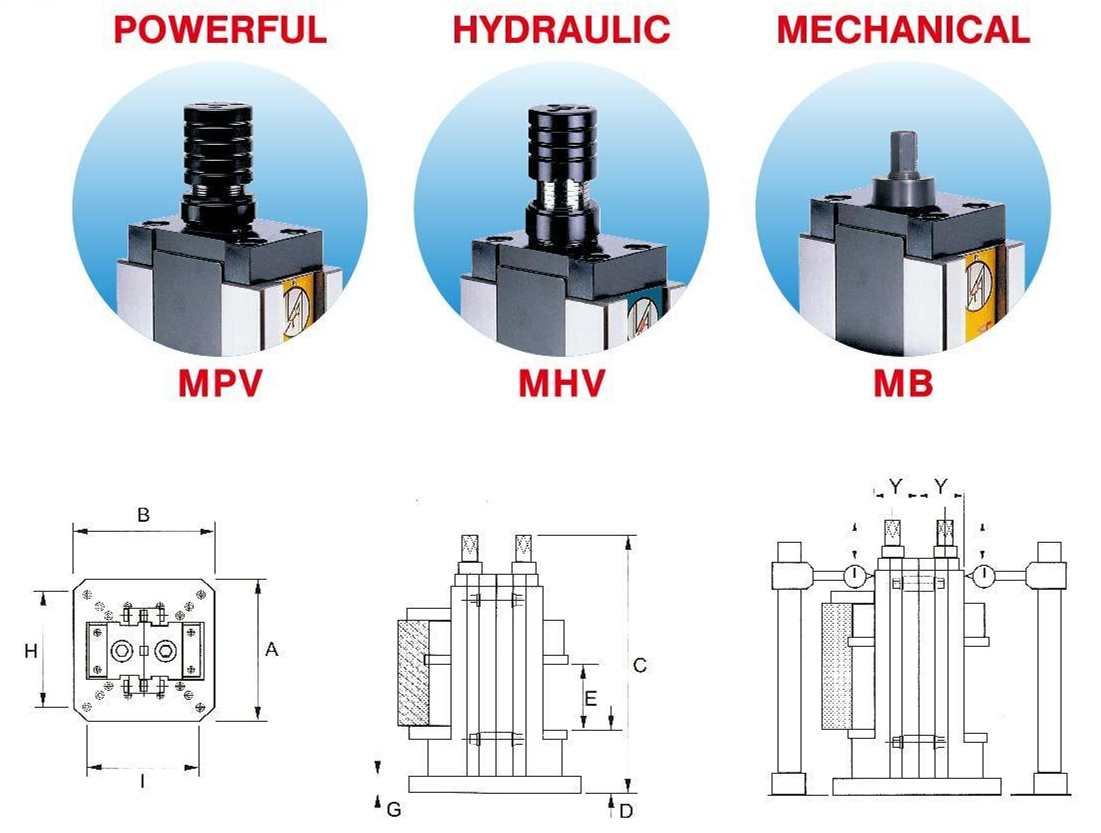

| MODEL | A | B | C | D | E | F | G | H | I | CLAMPING FORCE |
| MB-100 2V | 300 | 300 | 530 | 120 | 150 | 45 | 40 | 200 | 200 | - |
| MB-130 2V | 300 | 300 | 580 | 125 | 200 | 50 | 40 | 200 | 200 | - |
| MB-160 2V | 400 | 400 | 680 | 143 | 280 | 60 | 40 | 320 | 320 | - |
| MB-200 2V | 400 | 400 | 730 | 148 | 300 | 70 | 40 | 320 | 320 | - |
| MHV-100 2V | 300 | 300 | 570 | 120 | 145 | 45 | 40 | 200 | 200 | 4000kgf |
| MHV-130 2V | 300 | 300 | 620 | 125 | 190 | 50 | 40 | 200 | 200 | 4500kgf |
| MHV-160 2V | 400 | 400 | 720 | 143 | 265 | 60 | 40 | 320 | 320 | 5000kgf |
| MHV-200 2V | 400 | 400 | 770 | 148 | 300 | 70 | 40 | 320 | 320 | 5500kgf |
| MPV-100 2V | 300 | 300 | 570 | 120 | 150 | 45 | 40 | 200 | 200 | 4000kgf |
| MPV-130 2V | 300 | 300 | 620 | 125 | 200 | 50 | 40 | 200 | 200 | 4500kgf |
| MPV-160 2V | 400 | 400 | 720 | 143 | 280 | 60 | 40 | 320 | 320 | 5000kgf |
| MPV-200 2V | 400 | 400 | 770 | 148 | 300 | 70 | 40 | 320 | 320 | 5500kgf |
