| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | HMG-9040-2S,HMG-9040-3S,HMG-9040-4S,HMG-9050-2S etc. |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for the sea and air shipping |
| Delivery Time: | 3work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | HMG MULTIGRIP VISE WITH AIR DRIVING | Material: | Alloy Steel |
|---|---|---|---|
| Function: | Feature: | High Precision/Stable/High Quality | |
| Usage: | Gripping | Service: | |
| Highlight: | HMG MULTIGRIP VISE, HMG MULTIGRIP VISE WITH AIR DRIVING, MULTIGRIP VISE WITH AIR DRIVING |
||

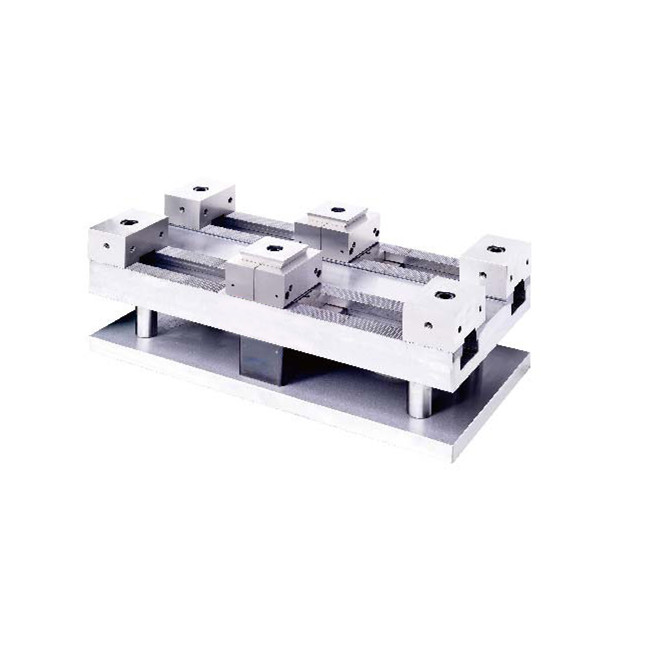

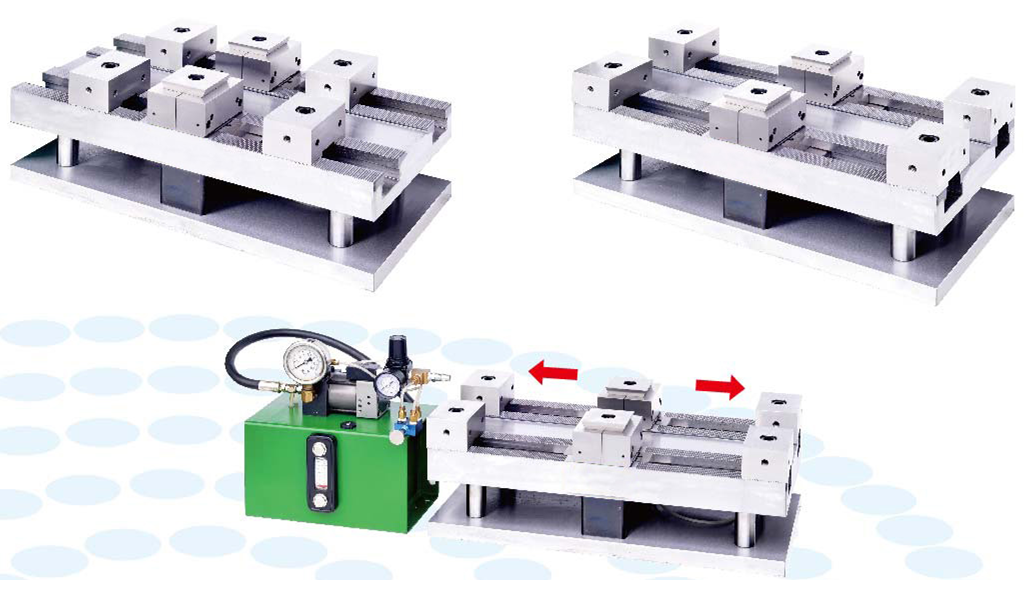

HMG MULTIGRIP VISE WITH AIR DRIVING
Brand:NTH
Product Catalogue : HMG-FV MULTIGRIP VISE WITH THE 4TH AXIS&HMG MULTIG...
(UNIT:mm)
| MODEL | A | B | C | D | E | F | G | H | I |
| HMG-9040-2S | 400 | 250 | 100 | 50 | 160 | 90 | 70 | 181 | 136 |
| HMG-9040-3S | 400 | 410 | 150 | 50 | 160 | 90 | 70 | 181 | 136 |
| HMG-9040-4S | 400 | 570 | 215 | 50 | 160 | 90 | 70 | 181 | 136 |
| HMG-9050-2S | 500 | 250 | 100 | 50 | 160 | 90 | 70 | 181 | 136 |
| HMG-9050-3S | 500 | 410 | 150 | 50 | 160 | 90 | 70 | 181 | 136 |
| HMG-9050-4S | 500 | 570 | 215 | 50 | 160 | 90 | 70 | 181 | 136 |
| HMG-9063-2S | 630 | 250 | 100 | 50 | 160 | 90 | 70 | 181 | 136 |
| HMG-9063-3S | 630 | 410 | 150 | 50 | 160 | 90 | 70 | 181 | 136 |
| HMG-9063-4S | 630 | 570 | 215 | 50 | 160 | 90 | 70 | 181 | 136 |
