| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | VSC-100A,VSC-130A,VSC-160A,VSC-200A |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for the sea and air shipping |
| Delivery Time: | 3work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | SUPER PRECISION MECHANICAL VICE WITH DOUBLE JAWS | Material: | Alloy Steel |
|---|---|---|---|
| Function: | Feature: | High Precision/Stable/High Quality | |
| Usage: | Gripping | Service: | |
| Highlight: | SUPER PRECISION MECHANICAL VICE, DOUBLE JAWS MECHANICAL VICE |
||

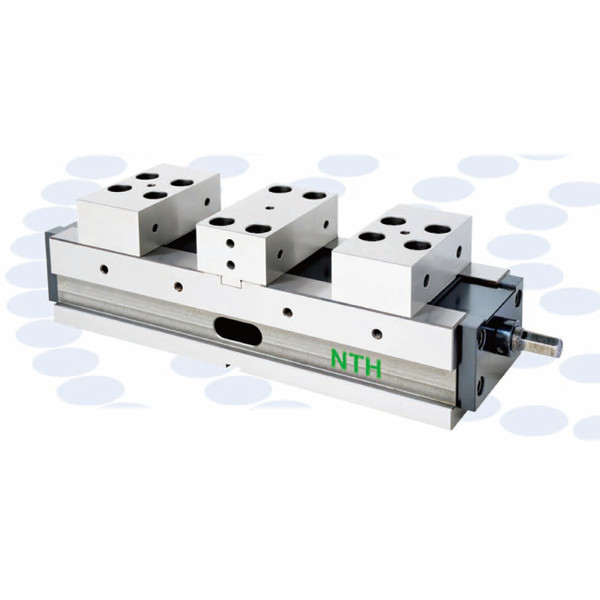

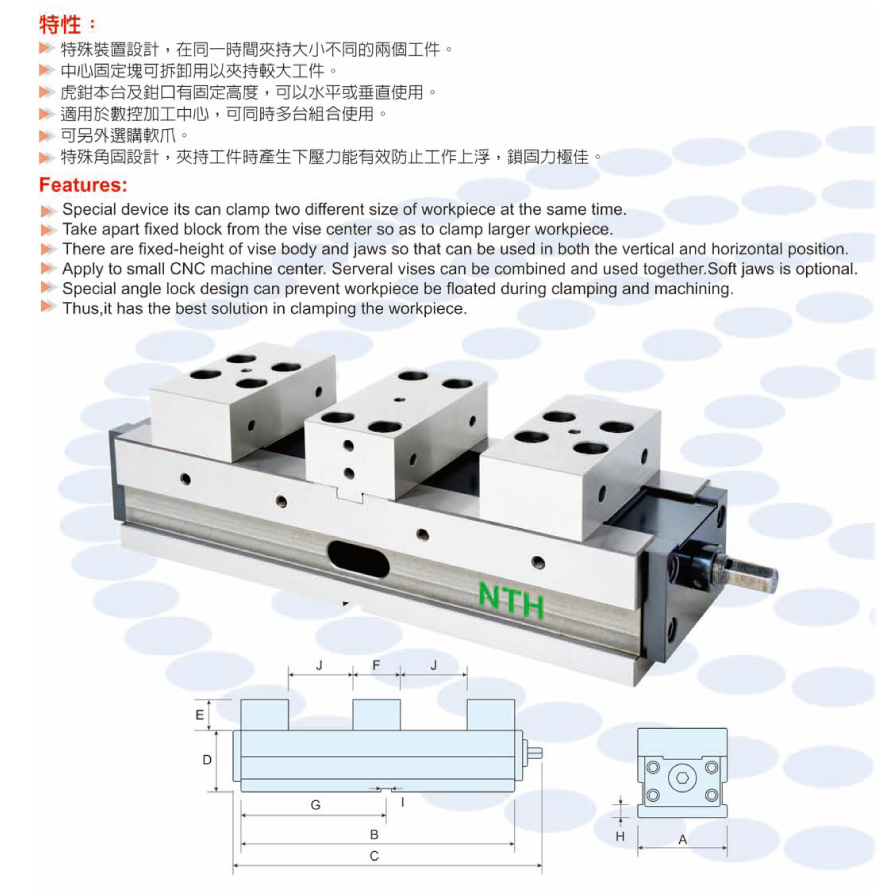

SUPER PRECISION MECHANICAL VICE WITH DOUBLE JAWS
Brand:NTH
Product Catalogue :SUPER PRECISION MECHANICAL VICE WITH DOUBLE JAWS.p...

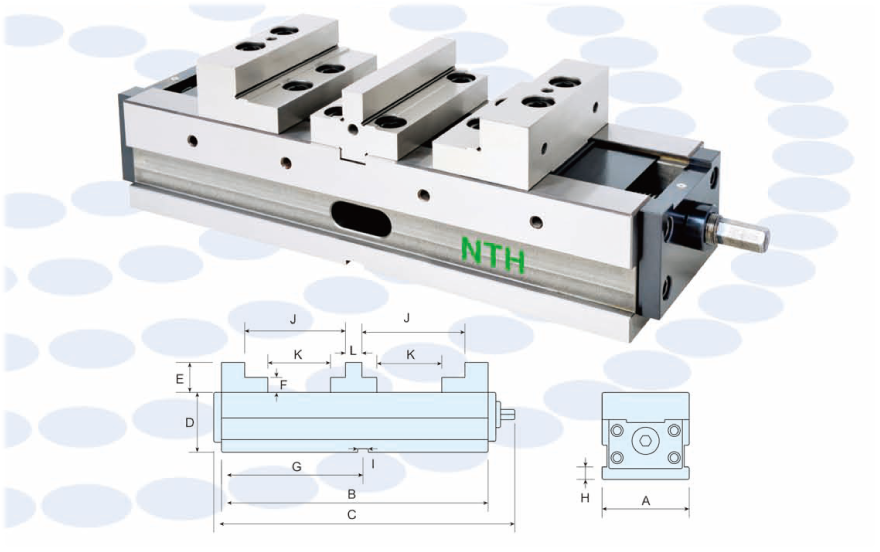

| MODEL | A | B | C | D | E | F | G | H | I | J | N.W. |
| VSC-100A | 100 | 310 | 340 | 95 | 45 | 70 | 155 | 23 | 18 | 35 | 35kg |
| VSC-130A | 130 | 410 | 510 | 100 | 50 | 75 | 205 | 23 | 18 | 90 | 43kg |
| VSC-160A | 160 | 490 | 590 | 110 | 55 | 85 | 245 | 23 | 18 | 115 | 65kg |
| VSC-200A | 200 | 565 | 665 | 120 | 60 | 95 | 282 | 23 | 18 | 135 | 105kg |
| MODEL | A | B | C | D | E | F | G | H | I | J | K | L | N.W. |
| VSC-100AA | 100 | 310 | 340 | 95 | 45 | 22 | 155 | 23 | 18 | 90 | 35 | 20 | 35kg |
| VSC-130AA | 130 | 410 | 510 | 100 | 50 | 25 | 205 | 23 | 18 | 150 | 90 | 20 | 43kg |
| VSC-160AA | 160 | 490 | 590 | 110 | 55 | 27 | 245 | 23 | 18 | 180 | 115 | 20 | 65kg |
| VSC-200AA | 200 | 565 | 665 | 120 | 60 | 30 | 282 | 23 | 18 | 210 | 135 | 20 | 105kg |
