| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTH |
| Model Number: | TMV-75A,TMV-125-15A,TMV-125-20A |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for the sea and air shipping |
| Delivery Time: | 3work days available |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | ALLOY STEEL SELF-CENTERING VISE UPGRADE YOUR 4 AND 5 AXIS MACHINING | Material: | Alloy Steel |
|---|---|---|---|
| Function: | Feature: | High Precision/Stable/High Quality | |
| Usage: | Gripping | Service: | |
| Highlight: | ALLOY STEEL SELF-CENTERING VISE, 5 AXIS MACHINING SELF-CENTERING VISE, 4 AXIS MACHINING SELF-CENTERING VISE |
||

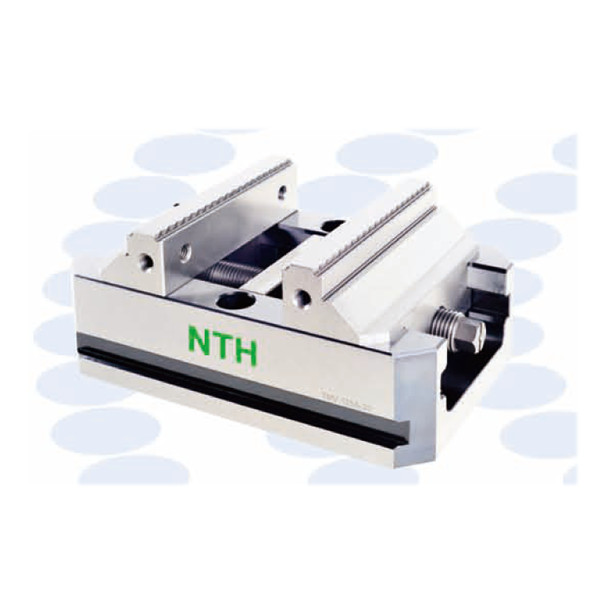

ALLOY STEEL SELF-CENTERING VISE UPGRADE YOUR 4 AND 5 AXIS MACHINING
Brand:NTH
Product Catalogue : SELF-CENTERING VISE.pdf

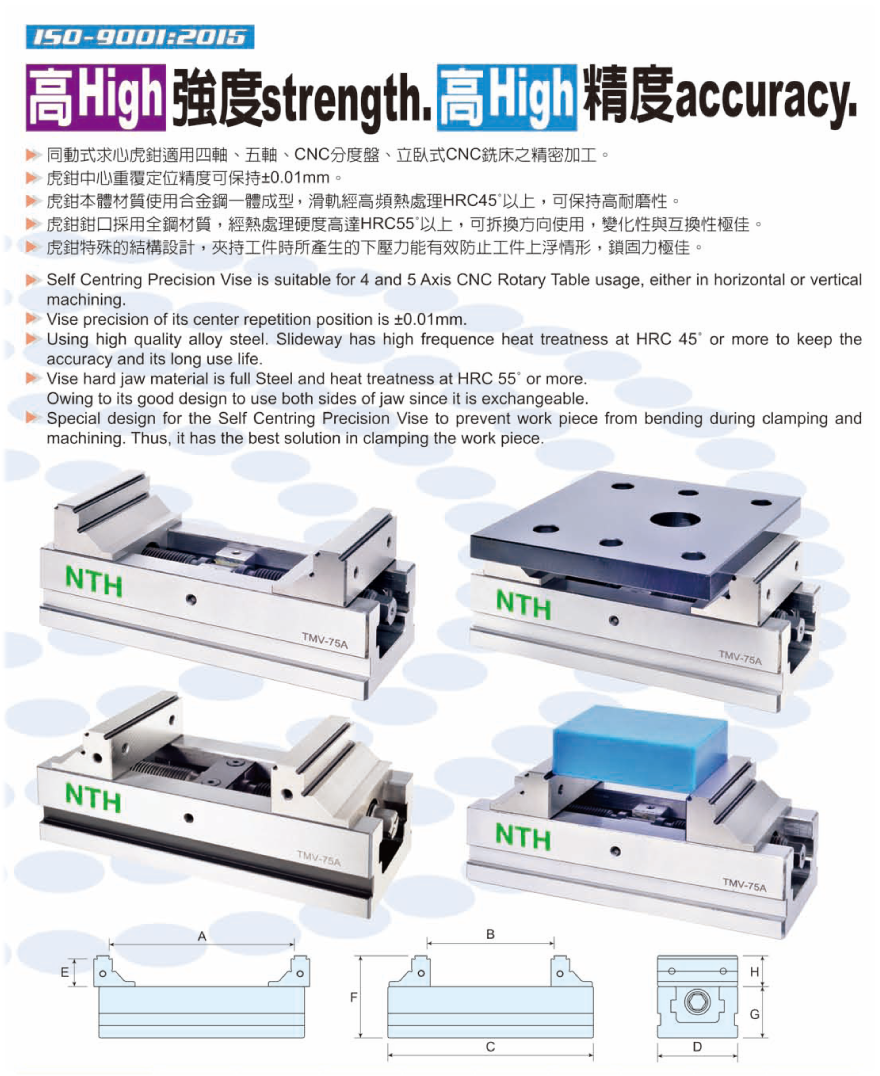

| MODEL | A | B | C | D | E | F | G | H | N.W. |
| TMV-75A | 180 | 123 | 200 | 78 | 27 | 80 | 50 | 30 | 6.6 |

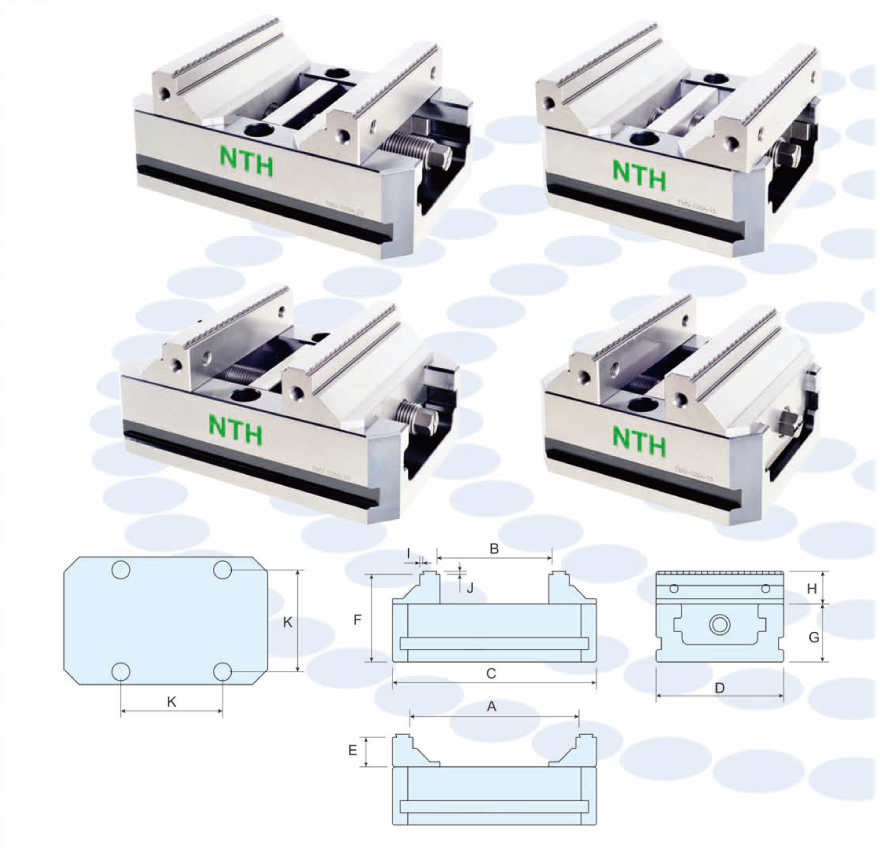

| MODEL | A | B | C | D | E | F | G | H | I | J | K | N.W. | N.W. |
| TMV-125-15A | 110 | 60 | 150 | 125 | 29 | 89 | 57 | 32 | 3 | 3 | 96 | 9 | 9 |
| TMV-125-20A | 165 | 115 | 200 | 125 | 29 | 89 | 57 | 32 | 3 | 3 | 96 | 9 | 11 |

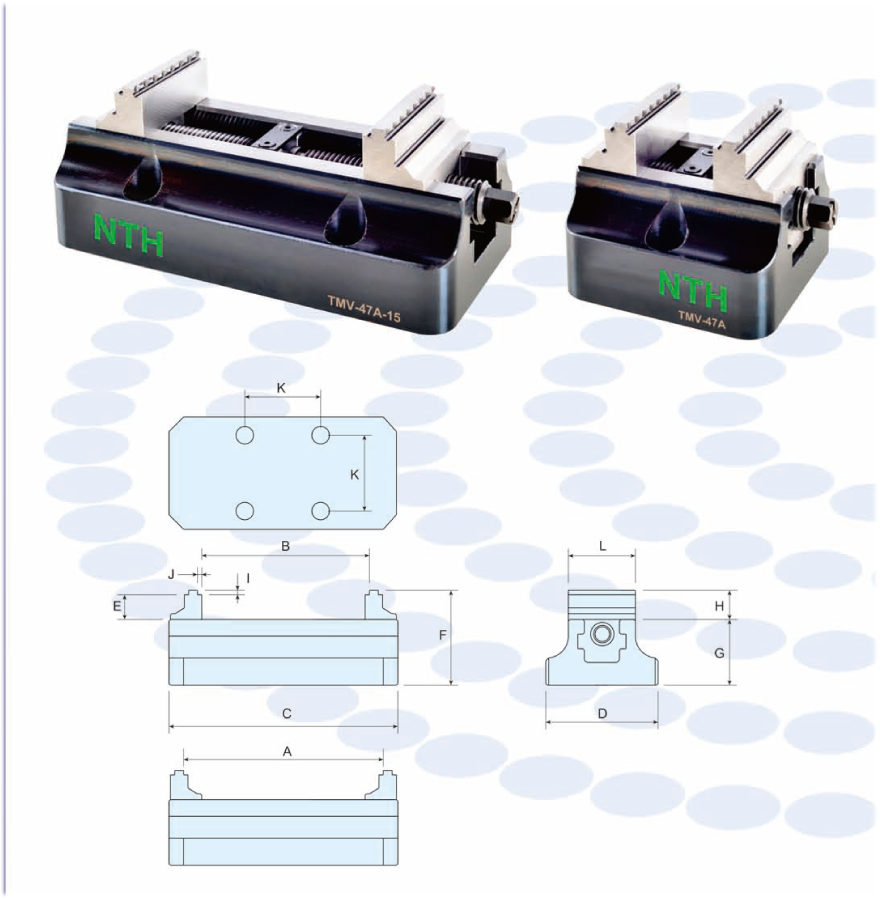

| MODEL | A | B | C | D | E | F | G | H | I | J | K | L | N.W. |
| TMV-47-77A | 58 | 40 | 77 | 77 | 17 | 65 | 45 | 20 | 3 | 3 | 52 | 47 | 2 |
| TMV-47-157A | 138 | 120 | 157 | 77 | 17 | 65 | 45 | 20 | 3 | 3 | 52 | 47 | 3.5 |

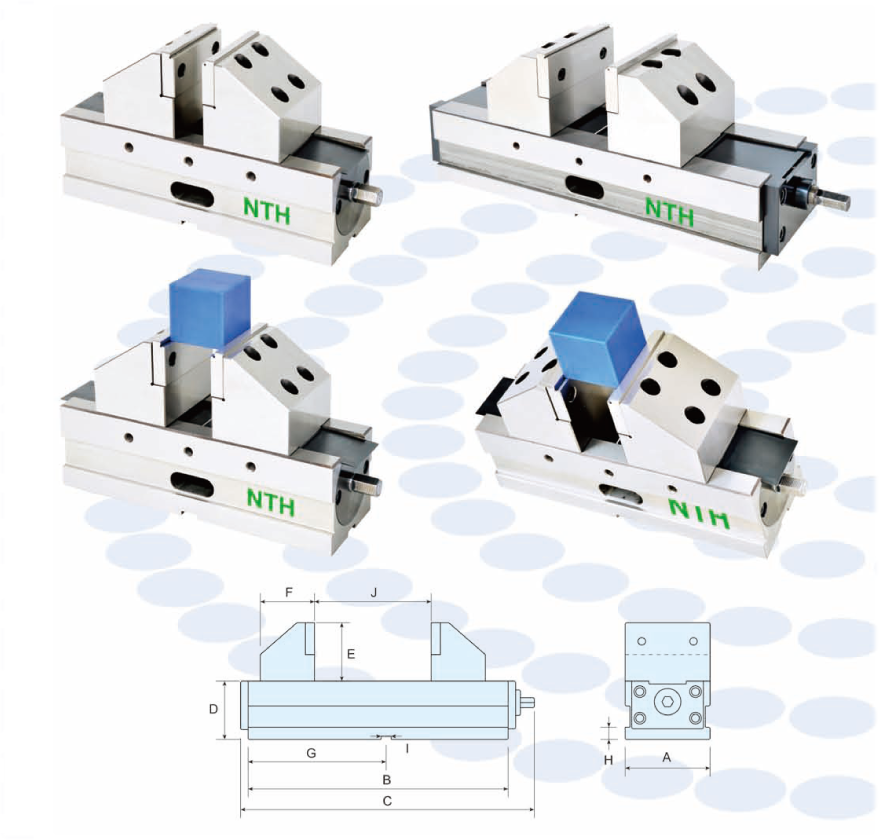

| MODEL | A | B | C | D | E | F | G | H | I | J | N.W. |
| VSC-100-5XC | 100 | 310 | 340 | 95 | 90 | 85 | 155 | 23 | 18 | 30-110 | 37 |
| VSC-130-5XC | 130 | 410 | 510 | 100 | 100 | 90 | 205 | 23 | 18 | 30-220 | 45 |
| VSC-160-5XC | 160 | 490 | 590 | 110 | 110 | 102 | 245 | 23 | 18 | 30-280 | 68 |
| VSC-200-5XC | 200 | 565 | 665 | 120 | 120 | 113 | 282 | 23 | 18 | 30-335 | 110 |
