| Product Name: | ALLOY STEEL ZERO POINT SYSTEM INSTALLING TYPE HEAT TREATED HRC 58-60 | Material: | Alloy Steel |
|---|---|---|---|
| Function: | Feature: | High Precision | |
| Usage: | Service: | ||
| Highlight: | ZERO POINT SYSTEM INSTALLING TYPE, ALLOY STEEL ZERO POINT SYSTEM |
||

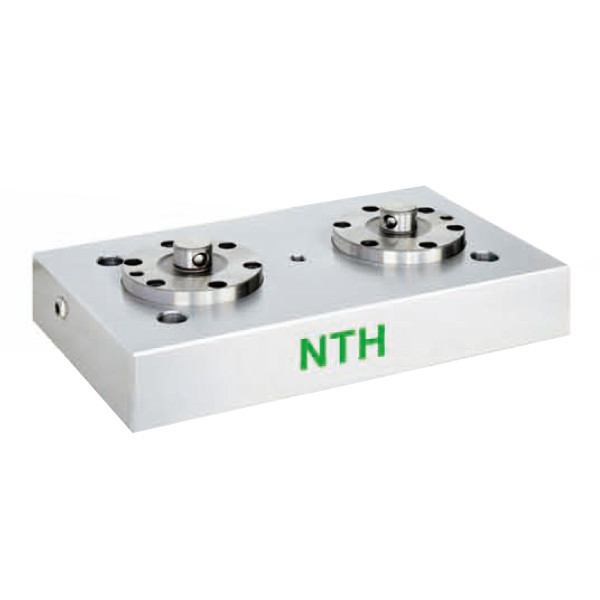

ALLOY STEEL ZERO POINT SYSTEM INSTALLING TYPE HEAT TREATED HRC 58-60
Brand:NTH
ZERO POINT SYSTEMS
Using this latest ZERO POINT SYSTEMS, it can optimize the clamping and changing process and shorten the exchanging time, to save the cost and improve the efficiency.
Features
Increase the working time of the machine
Shorten the time of exchanging fixture
High precision of repeating position
The products suit for almost machines
Having both good positioning and clamping
Product Catalogue : ZERO POINT SYSTEM.pdf
(UNIT:mm)

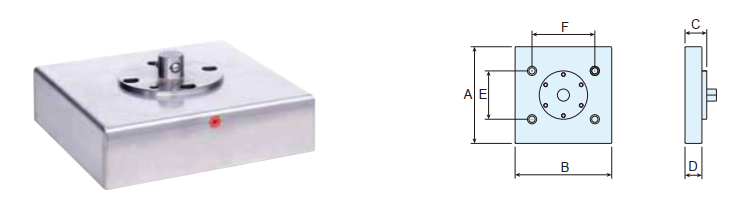

| Model | A | B | C | D | E | F | Gripping Power KN | Tension Power KN | N.W. KG |
| ZPS-125-200-RH | 200 | 200 | 50 | 40 | 100 | 100 | 20 | 55 | 13 |
| ZPS-125-200-RL | 200 | 200 | 50 | 40 | 100 | 100 | 17 | 55 | 13 |

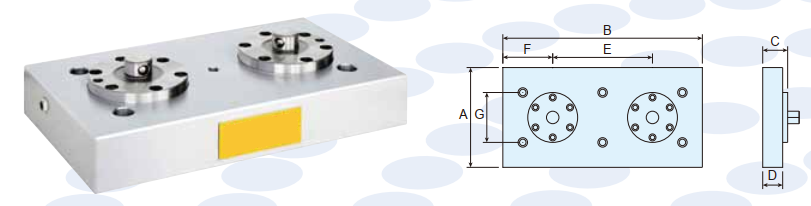

| Model | A | B | C | D | E | F | G | Gripping Power | Tension Power | N.W. KG |
| ZPS-225-300-RH | 170 | 300 | 50 | 40 | 150 | 75 | 100 | 20 | 55 | 17 |
| ZPS-225-400-RH | 200 | 400 | 50 | 40 | 250 | 75 | 100 | 20 | 55 | 20 |
| ZPS-225-300-RL | 170 | 300 | 50 | 40 | 150 | 75 | 100 | 17 | 55 | 17 |
| ZPS-225-400-RL | 200 | 400 | 50 | 40 | 250 | 75 | 100 | 17 | 55 | 20 |

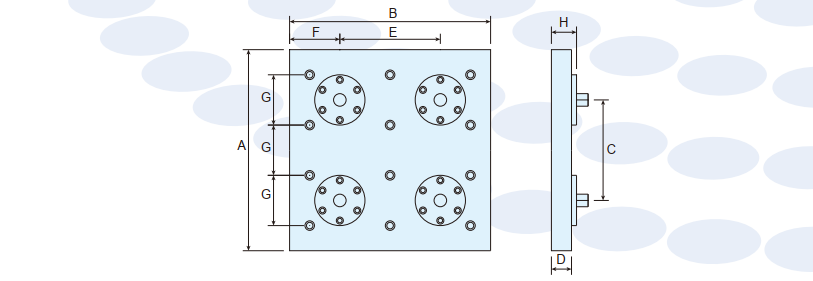

| Model | A | B | C | D | E | F | G | H | Gripping Power | Tension Power | N.W. KG |
| ZPS-425-300-RH | 300 | 300 | 150 | 40 | 150 | 75 | 100 | 50 | 20 | 55 | 29 |
| ZPS-425-400-RH | 400 | 400 | 200 | 40 | 250 | 75 | 100 | 50 | 20 | 55 | 50 |
| ZPS-425-300-RL | 300 | 300 | 150 | 40 | 150 | 75 | 100 | 50 | 17 | 55 | 29 |
| ZPS-425-400-RL | 400 | 400 | 200 | 40 | 250 | 75 | 100 | 50 | 17 | 55 | 50 |
RH:Hydraulic model RL:Pneumatic model

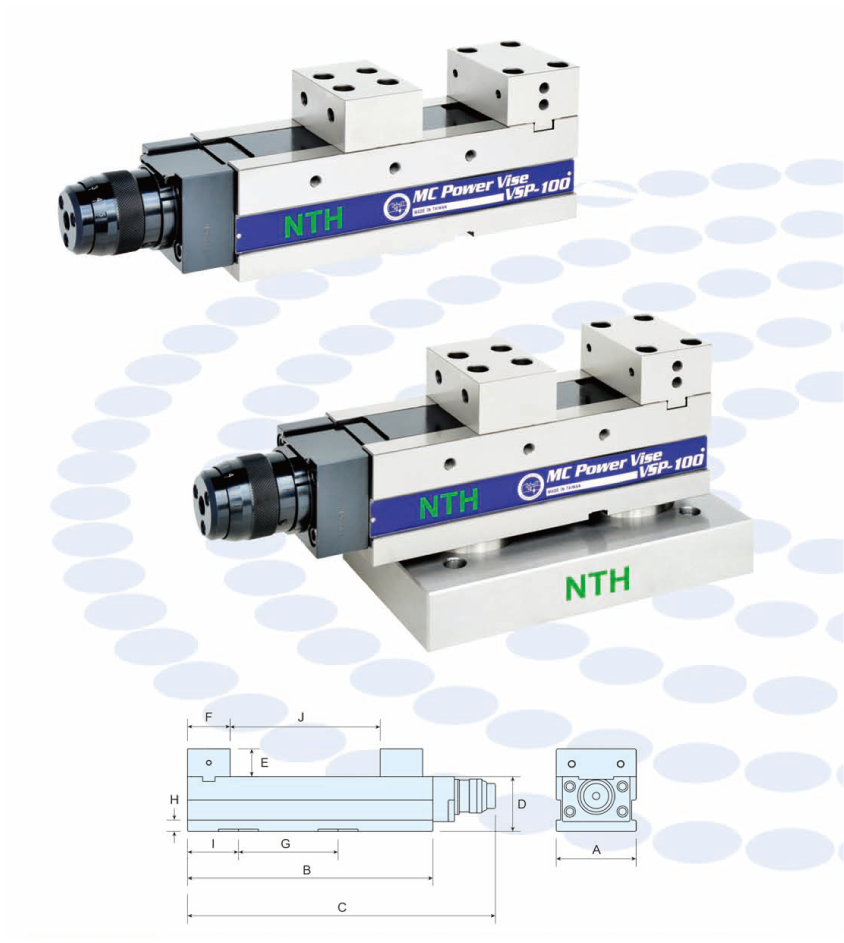

| Model | A | B | C | D | E | F | G | H | I | J | N.W. KG |
| VSP-100-ZPS | 100 | 310 | 435 | 95 | 45 | 70 | 150 | 23 | 100 | 140 | 26 |
| VSP-130-ZPS | 130 | 410 | 535 | 100 | 50 | 80 | 250 | 23 | 110 | 230 | 45 |

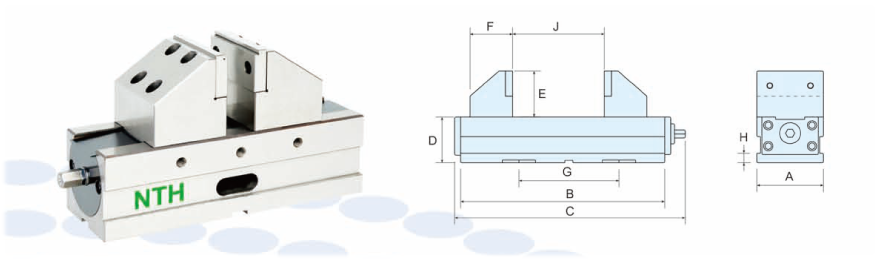

| Model | A | B | C | D | E | F | G | H | J | N.W. KG |
| VSC-100-5XC-ZPS | 100 | 310 | 340 | 95 | 90 | 85 | 150 | 23 | 30-100 | 37 |
| VSP-130-ZPS | 130 | 410 | 510 | 100 | 100 | 90 | 250 | 23 | 30-220 | 45 |

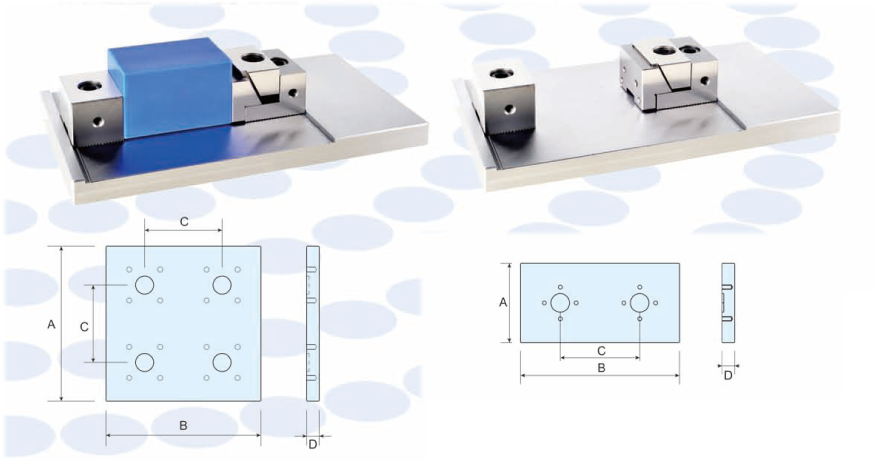

| Model | A | B | C | D | N.W. KG |
| ZPS-425-300-P | 300 | 300 | 150 | 30 | 23 |
| ZPS-425-400-P | 400 | 400 | 250 | 35 | 46 |
| ZPS-225-300-P | 170 | 300 | 150 | 30 | 13 |
| ZPS-225-300-P | 200 | 400 | 250 | 30 | 20 |
