| Product Name: | Standard Full Grip Pie Jaws For Scroll Chuck | Material: | 45#Steel/Aluminum |
|---|---|---|---|
| Function: | Clamping | Feature: | High Quality /High Precision |
| Usage: | Refer To The Specification | Service: | ODM/OEM Is Available |
| Highlight: | Standard Full Grip Pie Jaws, Full Grip Pie Jaws, Scroll Chuck Pie Jaws |
||

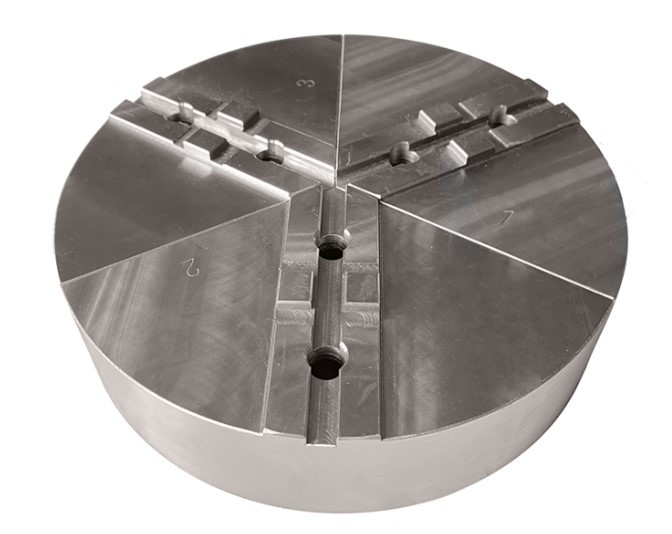

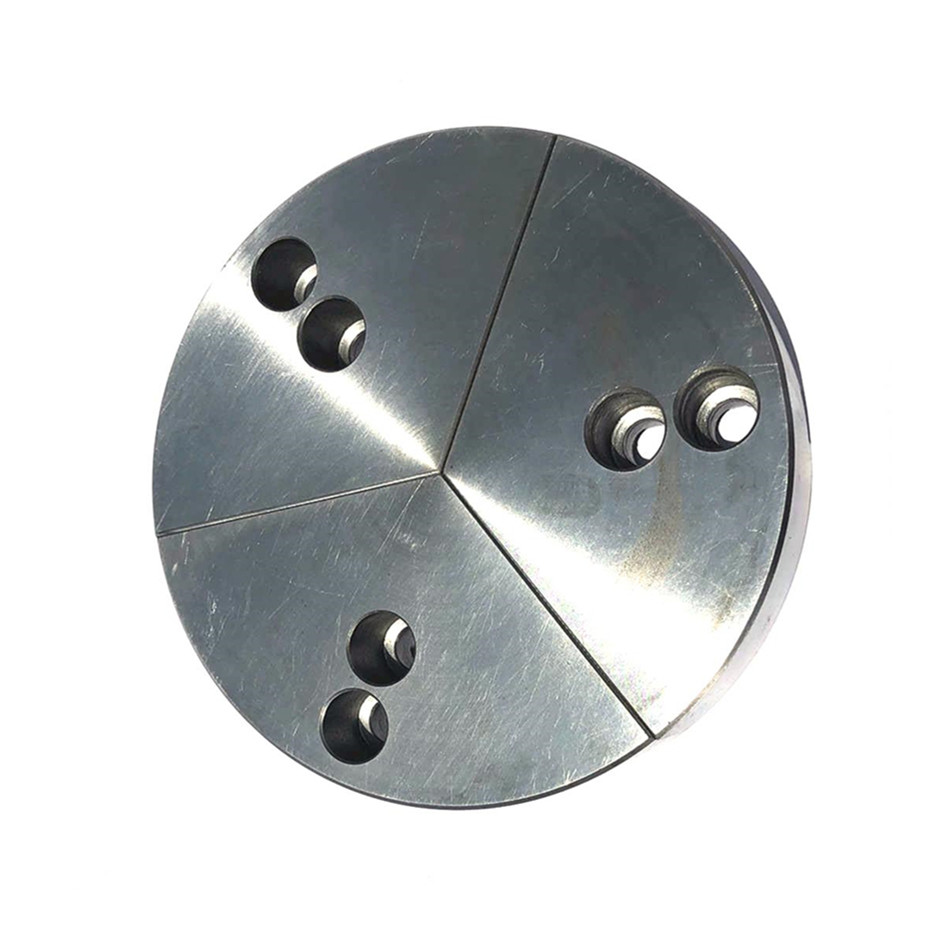

Standard Full Grip Pie Jaws For Scroll Chuck
Where used:
1. Chuck brand and model name
2. Workpiece size and the gripping height
Advantage:
1. For standard soft jaws, the material is high quality 45# steel, stronger and hardenable.
2. Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
3. Applicable onto the related chuck models of SMW/Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/Autogrip/NTH and so on well-known brand.
4. Customized and non-standard jaws and be designed and OEM.

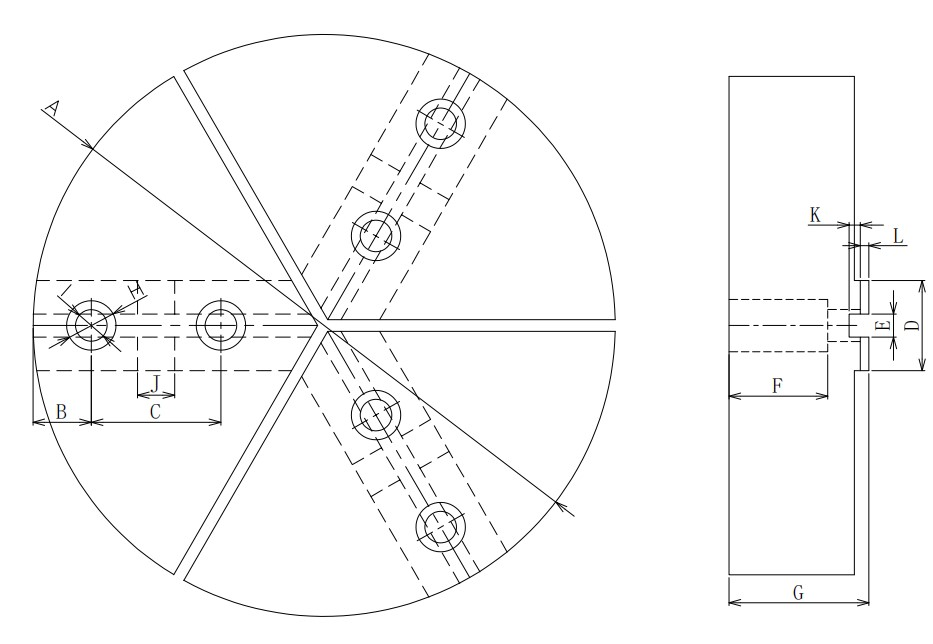

(UNIT: mm)
| Model/Spec | A | B | C | D | E | F | G |
| PCP-04 | 112 | 14 | 24 | 19 | 7.94 | 18 | 30 |
| PCP-05 | 132 | 15 | 32 | 24 | 7.94 | 23 | 35 |
| PCP-06 | 167 | 17.9 | 38.1 | 26 | 7.94 | 25 | 37 |
| PCP-07(08) | 192 | 25 .2 | 44.5 | 31 | 7.94 | 35 | 48 |
| PCP-09(10) | 232 | 28 | 54 | 37 | 12.7 | 34 | 48 |
| PCP-12 | 310 | 30.5 | 63.5 | 42 | 12.7 | 38 | 54 |
| PCP-16 | 405 | 41.8 | 76.2 | 50 | 12.7 | 48 | 70 |
| Model/Spec | G | H | I | J | K | L |
| PCP-04 | 30 | 11 | 7 | 9.53 | 3 | 2.5 |
| PCP-05 | 35 | 14 | 9 | 12.68 | 3.5 | 3 |
| PCP-06 | 37 | 14 | 9 | 12.68 | 3.5 | 3 |
| PCP-07(08) | 48 | 17 | 11 | 12.68 | 3.8 | 3 |
| PCP-09(10) | 48 | 19 | 13 | 19.03 | 4.2 | 3 |
| PCP-12 | 54 | 19 | 13 | 19.03 | 4.2 | 3 |
| PCP-16 | 70 | 25 | 17 | 19.03 | 5.5 | 6 |
Note: Customized spec can be made.
Subject to technical changes.
