| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OMATEI |
| Model Number: | PJ-05 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation |
| Packaging Details: | Good and firm package is suitable for sea and air shipping |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets/M |
| Product Name: | STANDARD FULL GRIP PIE JAWS FOR B205 5 INCH POWER CHUCK | Material: | 45#Steel/Aluminum |
|---|---|---|---|
| Function: | Clamping | Feature: | High Quality /High Precision |
| Size: | Refer To The Specification | Service: | ODM/OEM Is Available |
| High Light: | cnc lathe chuck jaws,steel pie jaws |
||

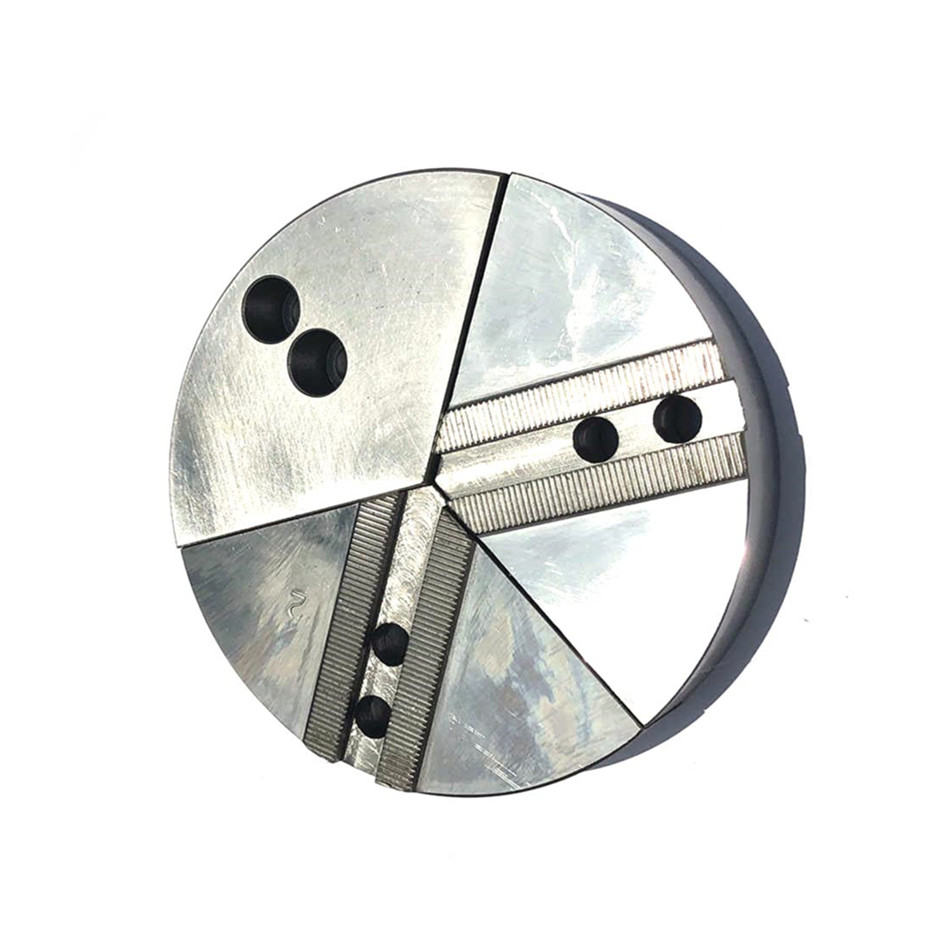

STANDARD FULL GRIP PIE JAWS FOR B205 5 INCH POWER CHUCK
Brand:OMATEI
Selection Guidance
1, Chuck brand and model name
2, Workpiece size and the gripping height
Advantage
1, For standard soft jaws, the material is high quality 45# steel, stronger and hardenable.
2, Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
3, Applicable onto the related chuck models of SMW/Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/Autogrip/NTH and so on well-known brand.
4, Customized and non-standard jaws and be designed and OEM.

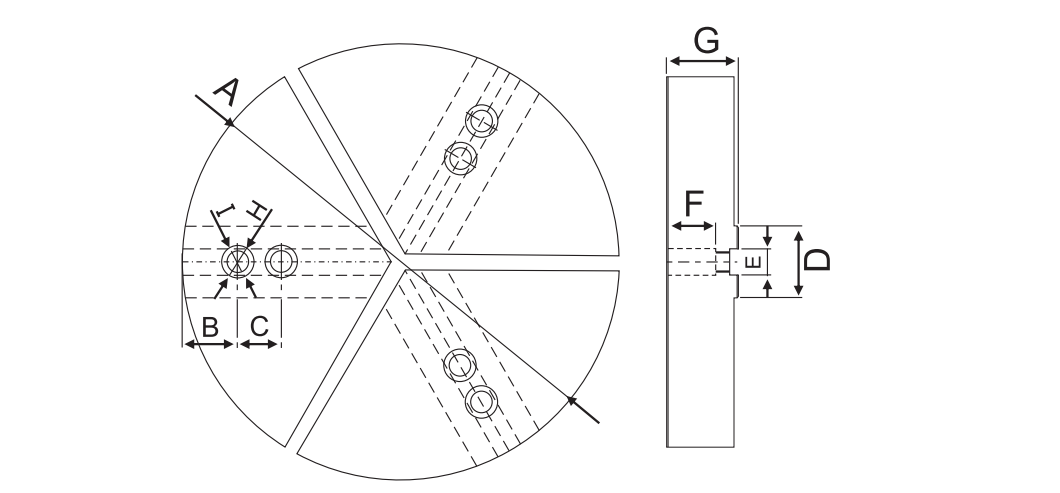

Serration Pitch:1.5mmx60° UNIT : mm
| Model/Spec | A | B | C | D | E | F | G | H | I | GW KG |
| PJ-05 | 130 | 10 | 14 | 25 | 10 | 16 | 30 | 14 | 9 | 3.6 |
Customized spec can be made.
Other option of serration pitch: 3.0*60°
Subject to technical changes
