STANDARD FULL GRIP PIE JAWS FOR B-208 8 INCH POWER CHUCK

Basic Information
Place of Origin: CHINA
Brand Name: OMATEI
Model Number: PJ-08
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Good and firm package is suitable for sea and air shipping
Delivery Time: 3 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000 sets/M
Product Name: STANDARD FULL GRIP PIE JAWS FOR B-208 8 INCH POWER CHUCK Material: 45#Steel/Aluminum
Function: Clamping Feature: High Quality /High Precision
Size: Refer To The Specification Service: ODM/OEM Is Available
High Light:

cnc lathe chuck jaws

,

aluminum pie jaws

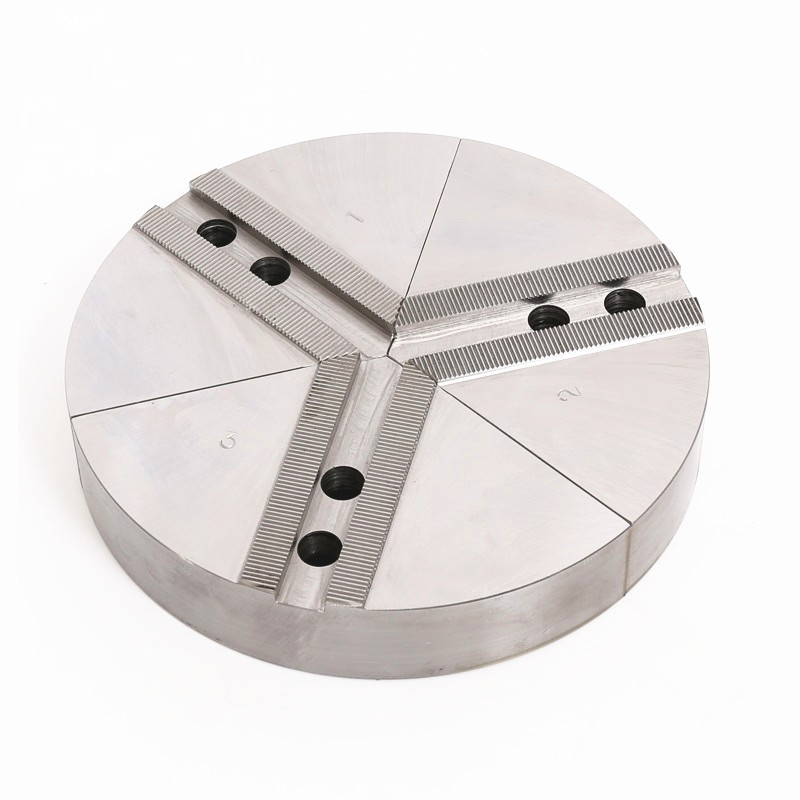

STANDARD FULL GRIP PIE JAWS FOR B-208 8 INCH POWER CHUCK

Brand:OMATEI

Selection Guidance
1, Chuck brand and model name
2, Workpiece size and the gripping height
Advantage
1, Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
2, Applicable onto the related chuck models of SMW/Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/Autogrip/NTH and so on well-known brand.
3, For standard soft jaws, the material is high quality 45# steel, stronger and hardenable.
4, Customized and non-standard jaws and be designed and OEM.

STANDARD FULL GRIP PIE JAWS FOR B-208 8 INCH POWER CHUCK 0

Serration Pitch:1.5mmx60° UNIT : mm



Model/Spec A B C D E F G H I GW KG
PJ-08 200 24 25 35 14 22 37 20 13 10.6



Customized spec can be made.

Other option of serration pitch: 3.0*60°
Subject to technical changes
