| Product Name: | STANDARD HEIGHT FULL GRIP PIE JAWS , ROUND JAWS FOR FULL CLAMPING SOLUTION | Material: | 45#Steel/Aluminum |
|---|---|---|---|
| Function: | Clamping | Feature: | High Quality /High Precision |
| Usage: | Refer To The Specification | Service: | ODM/OEM Is Available |
| Highlight: | cnc lathe chuck jaws, steel pie jaws |
||

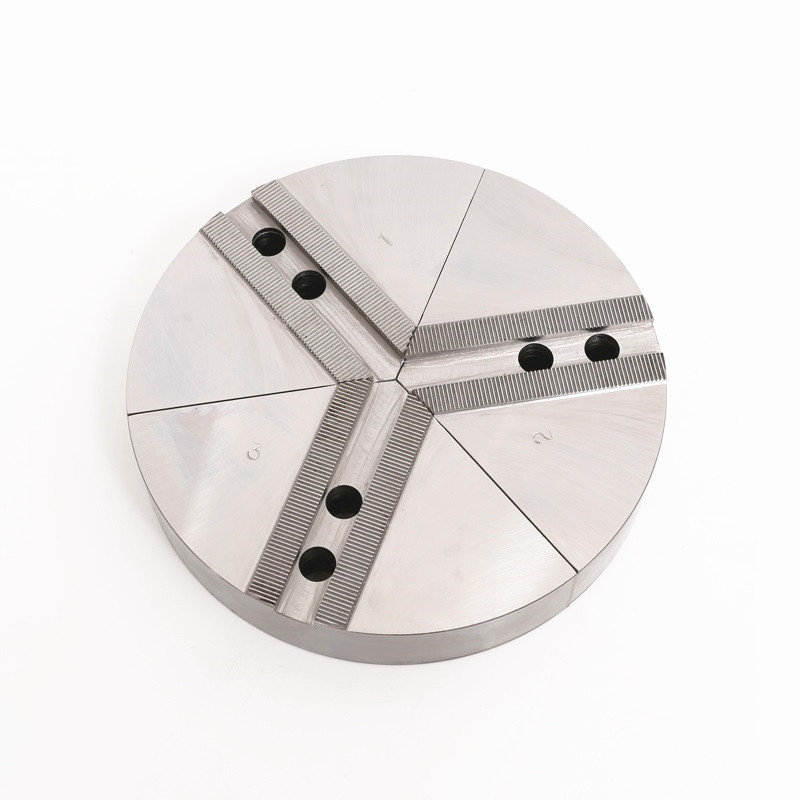

STANDARD HEIGHT FULL GRIP PIE JAWS , ROUND JAWS FOR FULL CLAMPING SOLUTION
STANDARD HEIGHT FULL GRIP PIE JAWS , ROUND JAWS FOR FULL CLAMPING SOLUTION
Brand:OMATEI
Selection Guidance
1, Chuck brand and model name
2, Workpiece size and the gripping height
Advantage
1, For standard soft jaws, stronger and hardenable, the material is high quality 45# steel,
2, Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
3, Applicable onto the related chuck models of NTH/SMW/Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/Autogrip and so on well-known brand.
4, Customized and non-standard jaws and be designed and OEM/ODM service.
Serration Pitch:1.5mmx60° UNIT : mm

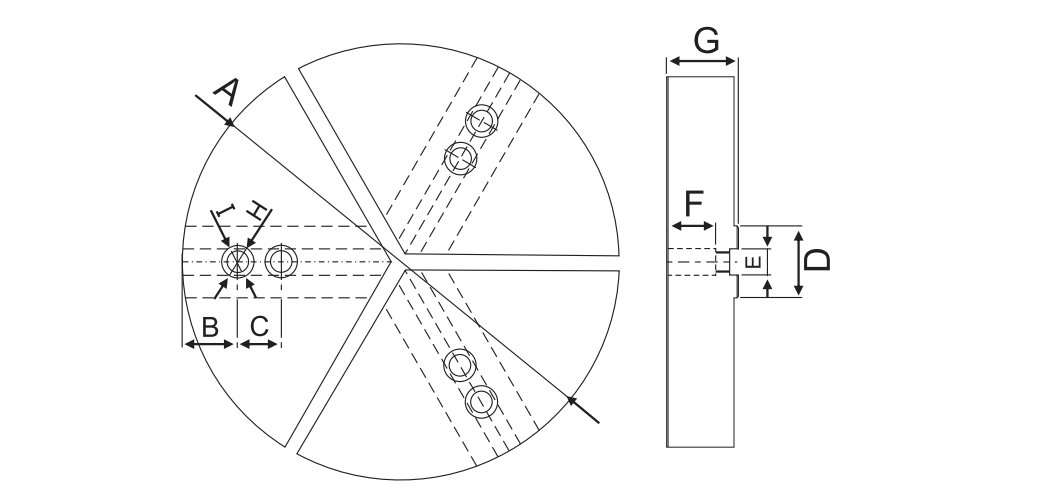

Model/Spec (mm) | A | B | C | D | E | F | G | H | I | GW KG |
|---|---|---|---|---|---|---|---|---|---|---|
| PJ-05 | 130 | 10 | 14 | 25 | 10 | 16 | 30 | 14 | 9 | 3.6 |
| PJ-06 | 160 | 15 | 20 | 31 | 12 | 21 | 36 | 18 | 11 | 4.9 |
| PJ-08 | 200 | 24 | 25 | 35 | 14 | 22 | 37 | 20 | 13 | 10.6 |
| PJ-10 | 240 | 25 | 30 | 42 | 16 | 27 | 42 | 20 | 13 | 13.6 |
| PJ-12 | 290 | 35 | 30 | 50 | 21/18 | 34 | 50 | 26 | 18 | 23.8 |
| PJ-15 | 370 | 37 | 43 | 62 | 22/25.5 | 44 | 62 | 32 | 22 | 45.8 |
Customized spec can be made.
Other option of serration pitch: 3.0*60°
Subject to technical changes
